| Ref | Part Number | Description |
|---|
| 1 |
410107300 |
Switch (Heating Grip) |
| 2 |
515175281 |
Switch Cover |
| 3 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership This part replaces 410113602. |
| 4 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 5 |
570013700 |
Switch Boot |
| 13 |
515175653 |
Brake Switch |
| 14 |
515175654 |
Male Terminal Housing, 2 Circuits |
| 15 |
515175232 |
Male Terminal |
| 16 |
570151100 |
Plunger Cap |
| 17 |
Not |
Available As Spare Part - Washer |
| 18 |
515145900 |
Switch Nut |
| 19 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 20 |
515175283 |
Housing Support |
| 21 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 22 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 23 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 24 |
515175658 |
Female Housing, 2 Circuits |
| 25 |
515175231 |
Female Terminal |
| 28 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 29 |
409010100 |
Female Terminal |
| 30 |
515175351 |
MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership |
| 31 |
515175232 |
Male Terminal |
| 32 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 33 |
515175314 |
GAINE LOW TEMP.VINYL - Call your local BRP dealership |
| 34 |
409010100 |
Female Terminal |
| 34 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
| 35 |
515175623 |

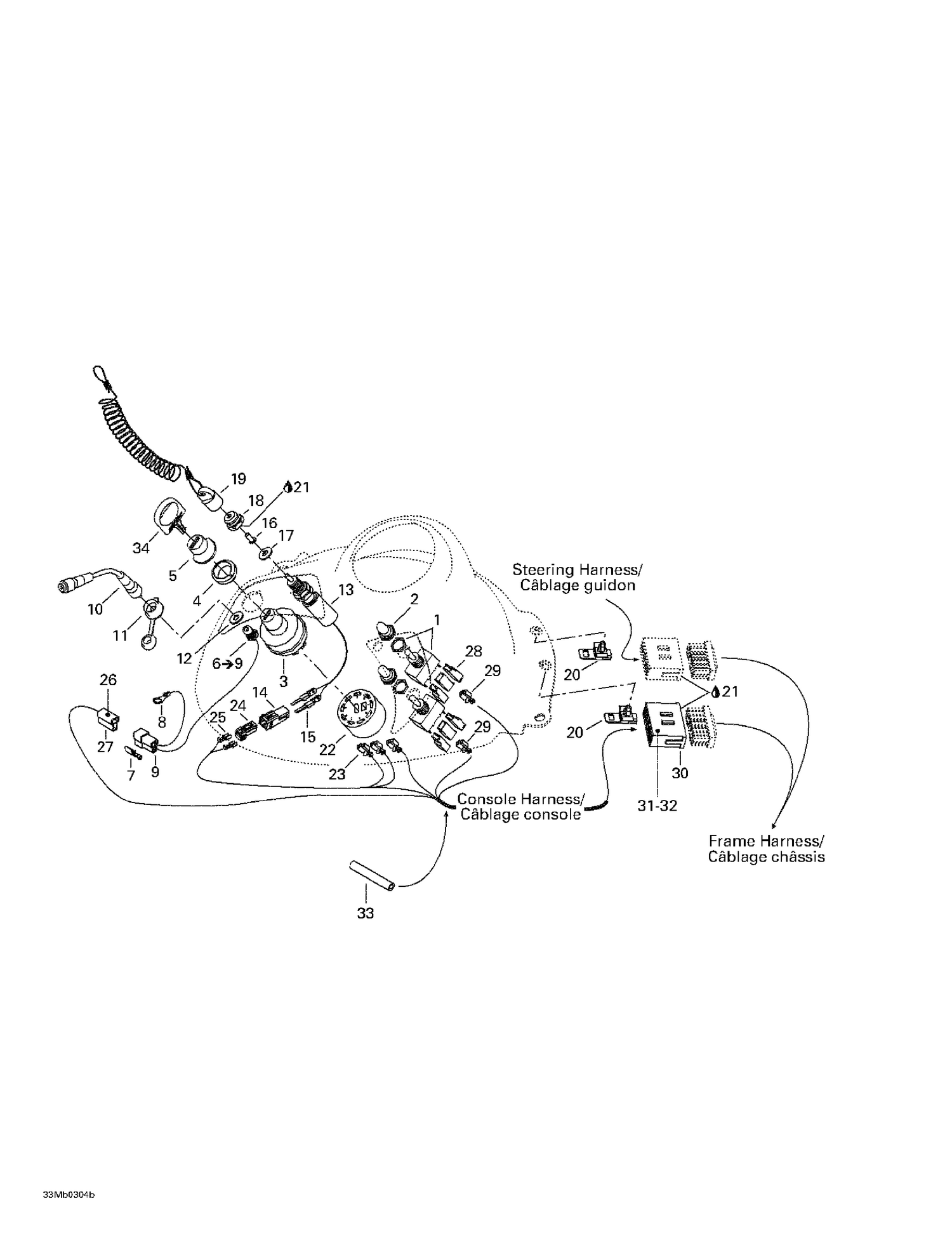

Console Harness, Not Shown |
| 36 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 42 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 44 |
515175231 |
Female Terminal |
| 46 |
515175282 |
Female Terminal |
| 54 |
515175495 |
Female Housing, 3 Circuits |
| 57 |
515175350 |
Female Terminal Housing, 13 Circuits |
| 58 |
515175349 |
FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership |
| 62 |
278001014 |
Female Terminal |
| 70 |
409209700 |
Female Housing, 4 Circuits |
| 73 |
278001013 |
Wire Seal |
| 77 |
409010300 |
Female Terminal |
| 168 |
515175259 |
Deutsch Joint Housing |
| 171 |
515175241 |
Resistance |
| 172 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 196 |
293750002 |
Tie Wrap 142 mm |
| 206 |
Not |
Available As Spare Part - Female Terminal |
| 221 |
409204600 |
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| 253 |
515175442 |
Tubing 6 mm - Call your local BRP dealership This part replaces 409902100. |
| 255 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 256 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 258 |
219704407 |
Tubing 10 MM 1000MM Long |
| 264 |
515175220 |
Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 267 |
Not |
Available As Spare Part - Thermoretractable Tubing |
| 298 |
293740005 |
Tape |
| 302 |
293750001 |
Tie Wrap 94 mm |
| 304 |
515175504 |
Ring Terminal |
| 307 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 308 |
515175510 |
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 317 |
278001473 |
Female Terminal Housing, 4 Circuits |
| 318 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 319 |
515175568 |
Male Terminal |
| 320 |
515175567 |
Female Terminal |
| 341 |
Not |
Available As Spare Part - Thermoretractable Tubing |
| 346 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 351 |
278001474 |
Female Lock, 4 Circuits |
| 383 |
515175719 |
FEMALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
