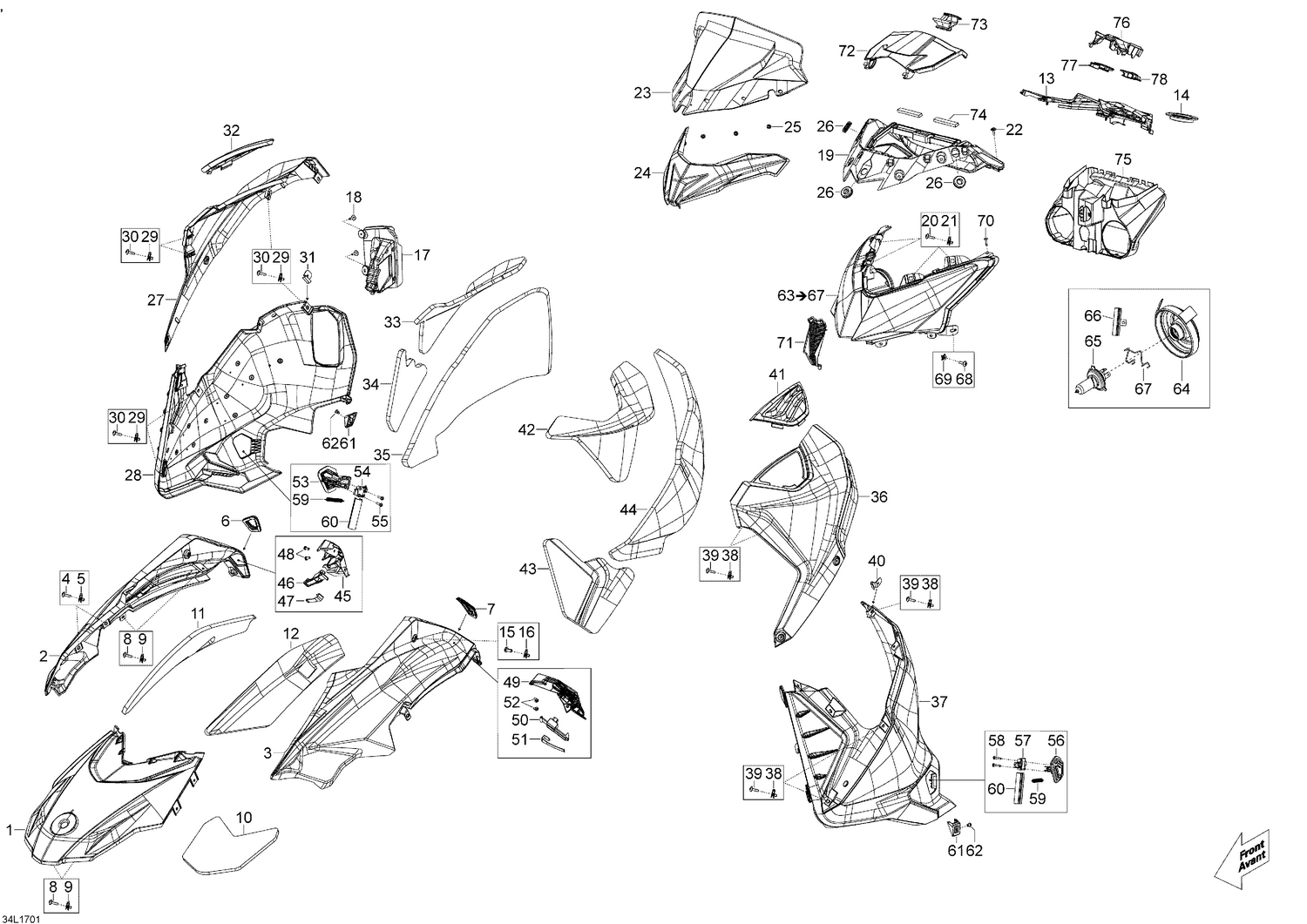

09- Hood And Windshield
Parts (76)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517305604 | Hood |
| 2 | 517305247 | RH Hood |
| 3 | 517305248 | LH Hood |
| 4 | 250000528 | Torx Screw M5 X 20 |
| 5 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 6 | 517305344 | RH Rubber Button |
| 7 | 517305345 | LH Rubber Button |
| 8 | 250000528 | Torx Screw M5 X 20 |
| 9 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 10 | 517305480 | Foam |
| 11 | 517305481 | Foam |
| 12 | 517305482 | Foam |
| 13 | 517305205 | Console Rear |
| 14 | 517304518 | Console Nut |
| 15 | 250000528 | Torx Screw M5 X 20 |
| 16 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 17 | 517305061 | Deep Black, RH Console |
| 18 | 250000725 | Screw M4 X 16 |
| 19 | 517305511 | Indicator Support |
| 20 | 250000528 | Torx Screw M5 X 20 |
| 21 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 22 | 250000587 | Torx Screw M5 X 26 |
| 23 | 517304921 | Windshield (235) |
| 24 | 517305307 | Support |
| 25 | 732610072 | Push Nut |
| 26 | 517303756 | Grommet |
| 27 | 517305250 | RH Side Panel |
| 28 | 517305249 | Black RH Panel |
| 29 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 30 | 250000528 | Torx Screw M5 X 20 |
| 31 | 517305515 | Guide Plate |
| 32 | 517305251 | Grill |
| 33 | 517306358 | Foam |
| 34 | 517306359 | Foam |
| 35 | 517306360 | Foam |
| 36 | 517305252 | LH Panel |
| 37 | 517305253 | Black LH Panel |
| 38 | 250000958 | Panel Nut M5 X 0.8 This part replaces 250000079. |
| 39 | 250000528 | Torx Screw M5 X 20 |
| 40 | 517305515 | Guide Plate |
| 41 | 517305254 | Grill |
| 42 | 517305488 | Foam |
| 43 | 517305489 | Foam |
| 44 | 517305490 | Foam |
| 45 | 517305315 | RH Lock Body |
| 46 | 517306019 | Lock Arm |
| 47 | 517305317 | Lock Spring |
| 48 | 205951046 | Socket HD Screw M5 x 10 |
| 49 | 517305319 | LH Lock Body |
| 50 | 517306019 | Lock Arm |
| 51 | 517305317 | Lock Spring |
| 52 | 205951046 | Socket HD Screw M5 x 10 |
| 53 | 517305760 | RH Side Panel Bottom Lock |
| 54 | 517305761 | RH Bottom Lock Fixing Part |
| 55 | 250000451 | Torx Flange Screw K40 x 20 |
| 56 | 517305758 | LH Side Panel Bottom Lock |
| 57 | 517305759 | LH Bottom Lock Fixing Part |
| 58 | 250000451 | Torx Flange Screw K40 x 20 |
| 59 | 517305535 | Side Panel Bottom Lock Spring |
| 60 | 517305452 | Bottom Lock Sleeve |
| 61 | 517305323 | Side Panel Support |
| 62 | 390909100 | Avex Rivet |
| 64 | 219400070 | Cap |
| 65 | 515176274 | H4 Halogen Bulb (60/55W, 12V) |
| 66 | 219800282 | Holder Bracket |
| 67 | 219800281 | Spring |
| 68 | 250000528 | Torx Screw M5 X 20 |
| 69 | 250100035 | Jack Nut M5 |
| 70 | 250000725 | Screw M4 X 16 |
| 71 | 517305350 | Cap |
| 72 | 517304912 | Cover |
| 73 | 517304917 | Latch |
| 74 | 517305157 | Seal Joint |
| 75 | 517305095 | Trunk |
| 76 | 517304970 | Support |
| 77 | 517305180 | Cap |
