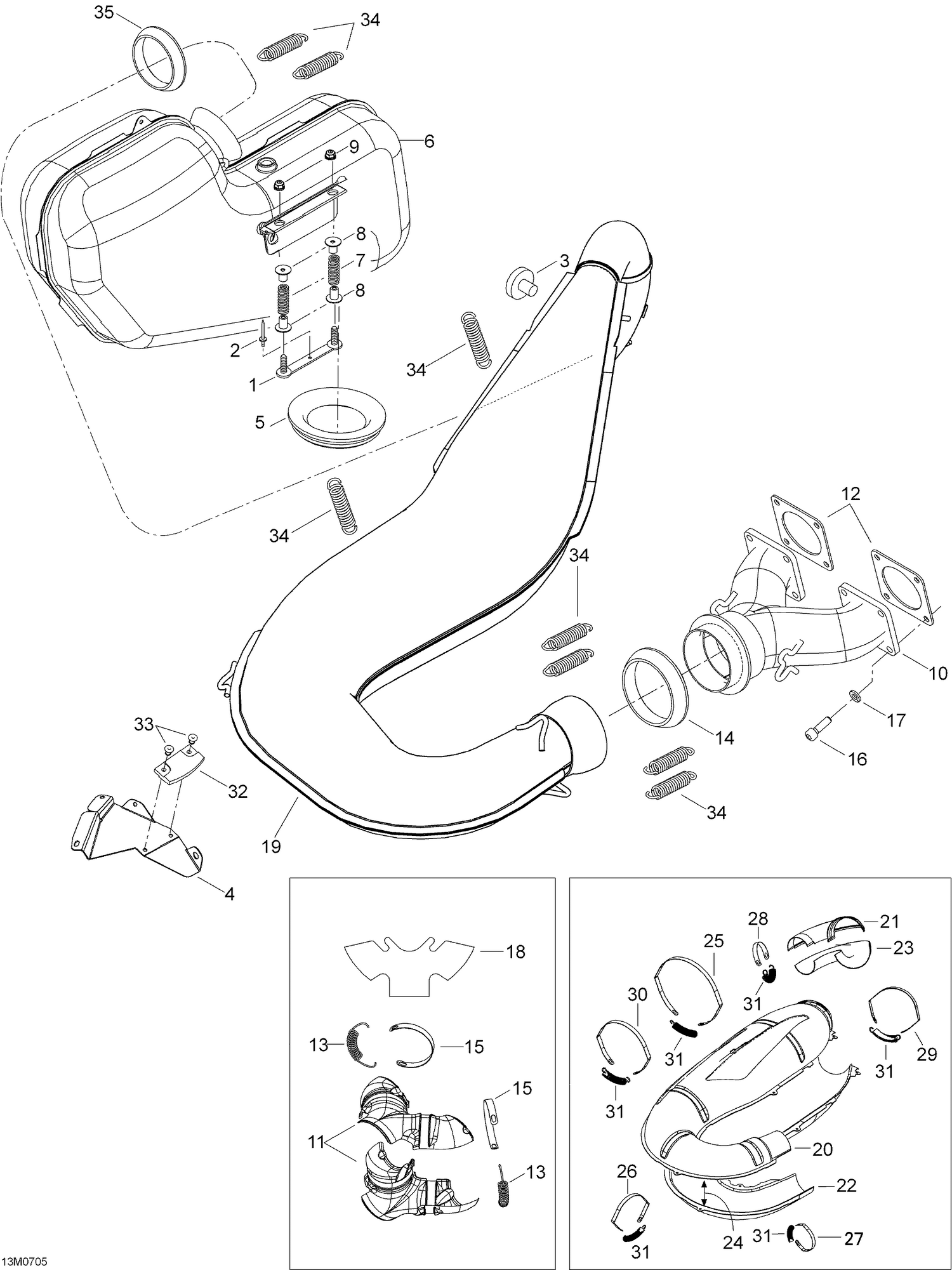

| Ref | Part Number | Description |
|---|
| 1 |
605453843 |
BRACKET - Call your local BRP dealership |
| 2 |
M36489 |
Rivet |
| 3 |
514053654 |
Rubber Bumper |
| 4 |
605351705 |
SUPPORT - Call your local BRP dealership |
| 5 |
514054224 |
Exhaust Grommet |
| 6 |
605153845 |
Muffler Ass'y |
| 7 |
414913700 |
SPRING - Call your local BRP dealership |
| 8 |
514053343 |
GUIDE - Call your local BRP dealership |
| 9 |
M33029 |
Lock Nut Vm8 |
| 10 |
420673072 |
EXHAUST MANIFOLD - Call your local BRP dealership |
| 11 |
514053593 |
Enveloppe, Exhaust Manifold |
| 12 |
420850552 |
Gasket |
| 13 |
514053643 |
Spring |
| 14 |
514053487 |
Exhaust Gasket |
| 15 |
514053603 |
RETAINING STRAP - Call your local BRP dealership |
| 16 |
M40052 |
Socket Head Screw M6 X 20 |
| 17 |
234161471 |
Lock Washer M6, Black |
| 18 |
514053588 |
INSULATING WOOL - Call your local BRP dealership |
| 20 |
514053181 |
UPPER FRONT HALF ENVELOPPE - Call your local BRP dealership |
| 21 |
514054008 |
UPPER REAR HALF ENVELOPPE - Call your local BRP dealership |
| 22 |
514053367 |
LOWER ENVELOPE - Call your local BRP dealership |
| 23 |
514054009 |
LOWER REAR HALF ENVELOPPE - Call your local BRP dealership |
| 24 |
514054010 |
INSULATIN WOOL - Call your local BRP dealership |
| 25 |
514053540 |
RETAINING STRAP - Call your local BRP dealership |
| 26 |
514053498 |
Retaining Strap |
| 27 |
514053501 |
Retaining Strap |
| 28 |
514053492 |
Retaining Strap |
| 29 |
514053500 |
RETAINING STRAP - Call your local BRP dealership |
| 30 |
514053512 |
RETAINING STRAP - Call your local BRP dealership |
| 31 |
514053643 |
Spring |
| 32 |
514053352 |
BUMPER - Call your local BRP dealership |
| 33 |
36037 |
Black Rivet This part replaces M36037. |
| 34 |
415107100 |
Spring |
