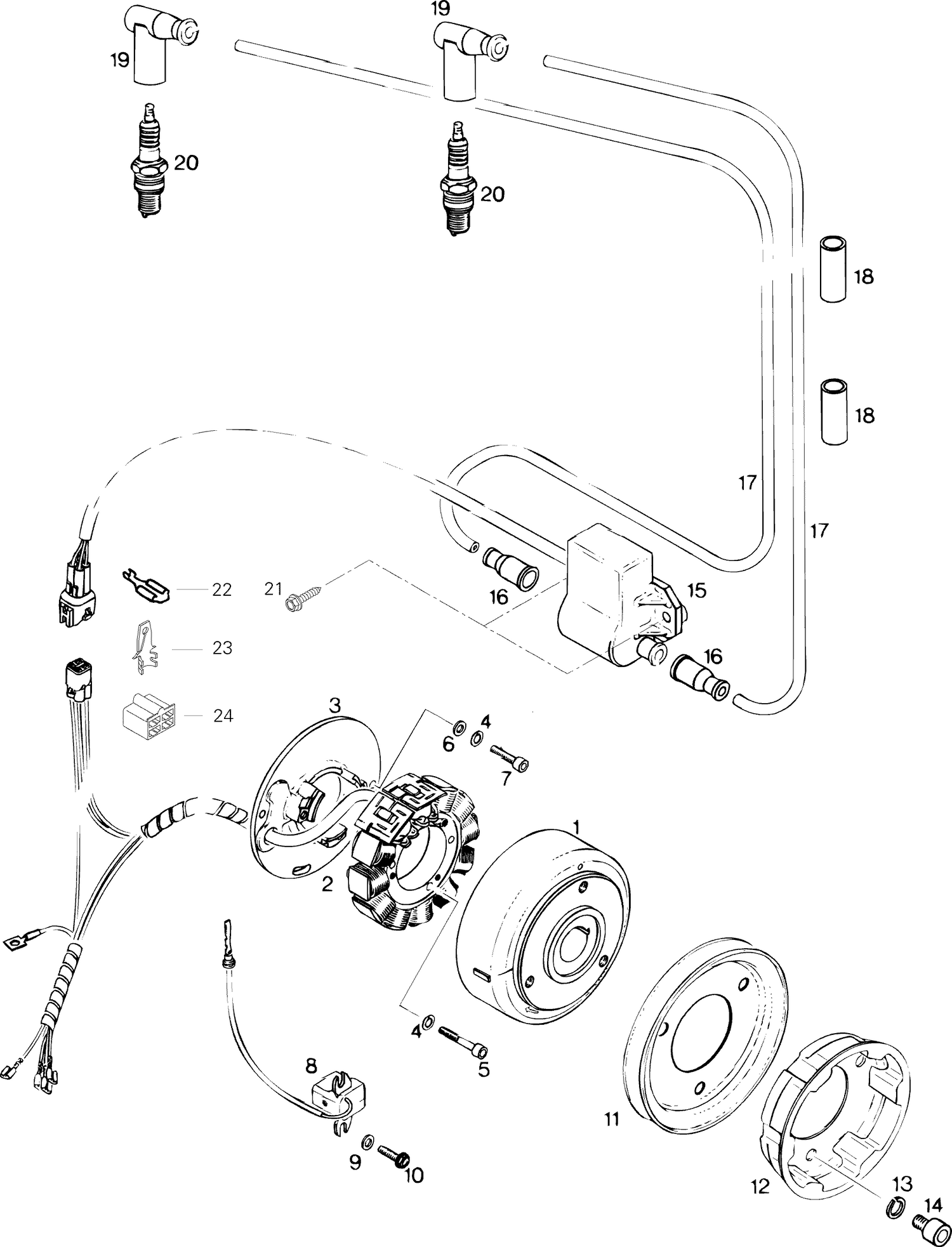

| Ref | Part Number | Description |
|---|
| 1 |
420996820 |
M.A.G. Flywheel |
| 3 |
Not |
Available As Spare Part - Stator Plate P12W 160/240 |
| 4 |
420945750 |
Lock Washer |
| 5 |
420940880 |
Socket Head Screw M5 X 30 |
| 6 |
420927574 |
Washer 5.3 This part replaces 420927571. |
| 7 |
420840515 |
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership |
| 8 |
420965762 |
PICK-UP ASS'Y - Call your local BRP dealership |
| 9 |
420827800 |
WASHER - Call your local BRP dealership |
| 10 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 11 |
420980486 |
V-Belt Pulley This part replaces 420980485. |
| 12 |
420852414 |
Rope Sheave This part replaces 420852412. |
| 13 |
420845310 |
Lock Washer |
| 14 |
420841520 |
Socket Head Screw M8 X 12 |
| 16 |
420960550 |
Protection Cap |
| 17 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 420965528. |
| 18 |
Not |
Available As Spare Part - Protection Hose |
| 19 |
414864000 |
SPARK PLUG CAP - Call your local BRP dealership |
| 20 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 21 |
365901400 |
Screw-hex.taping 12 |
| 22 |
561503200 |
Female Terminal PACKARD |
| 23 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 561503400. |
