Home / BRP / Can-Am 3-Wheel Vehicles / 2010 / Spyder / Spyder RS Roadster SM5, Late Production 2010 000A1AA00 000A1AB00 000A1AC00 000A1AD00 000A1AE00 000A1AF00 / 01- Valve Train

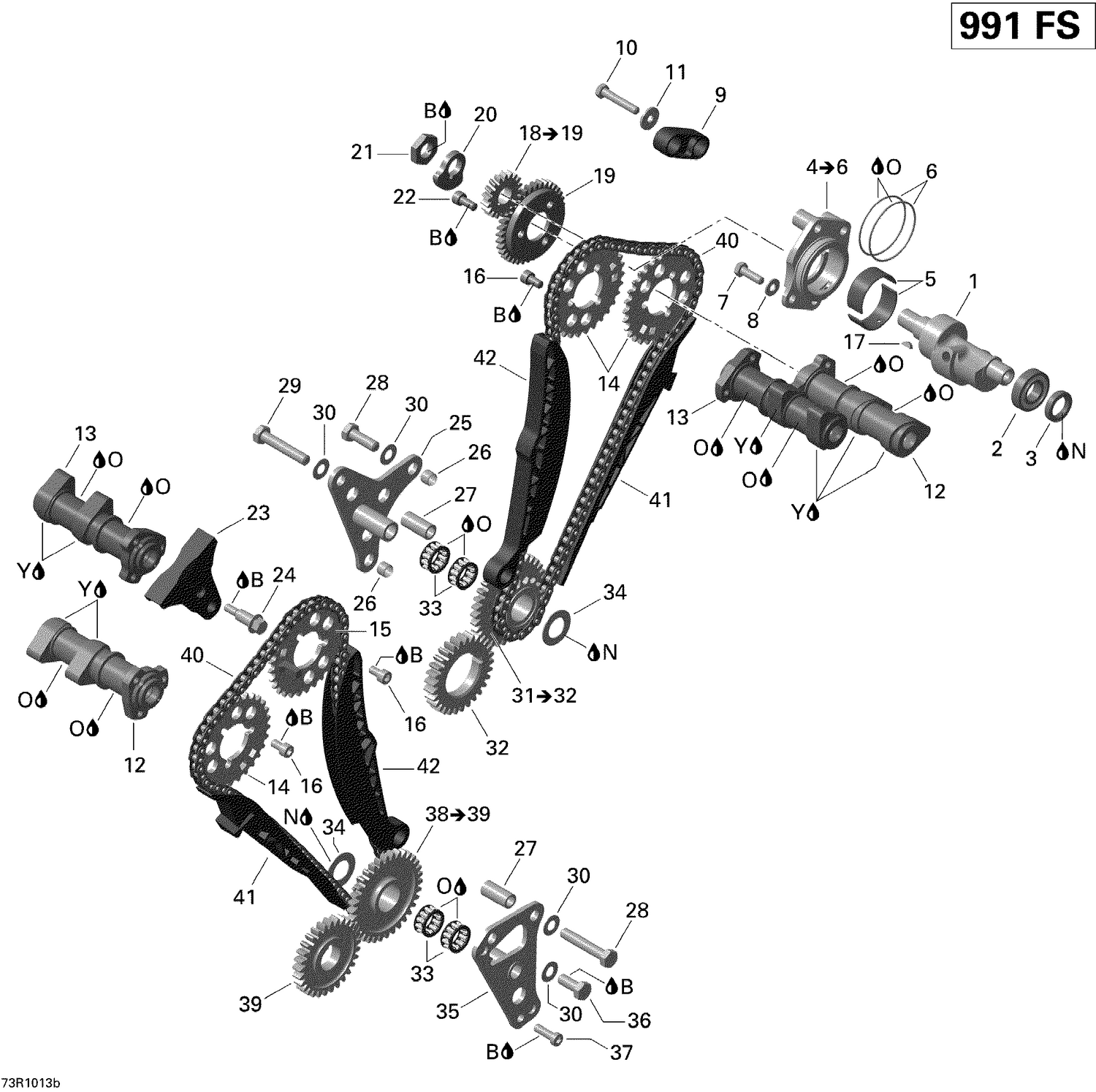

01- Valve Train

01- Valve Train

Parts (41)

RefPart NumberDescription
B 293800060 Loctite 243, 10 ml
N 413707000 Dow Corning 111, 150 g
O Not Available As Spare Part - Engine Oil
1 420220444 Top Balancer
2 420832362 Ball Bearing This part replaces 420832360.
3 420250130 Oil Seal
5 Not Available As Spare Part - Plain Bearing
6 420831160 O-Ring
7 420940560 HEX. SCREW M6 X 20 - Call your local BRP dealership
8 224061121 Flat Washer
9 420236380 Chain Guide
10 207063544 Hex. Flange Screw M6 X 35
11 420827305 FLAT WASHER - Call your local BRP dealership
12 420620208 CAMSHAFT EXHAUST - Call your local BRP dealership
13 420620204 INTAKE CAMSHAFT - Call your local BRP dealership
14 420435112 TIMING GEAR - Call your local BRP dealership This part replaces 420634732.
15 420435118 GEAR-TIMING - Call your local BRP dealership This part replaces 420634739.
16 420840379 Socket Head Screw M6 X 11.5 This part replaces 420840371.
17 420246055 Woodruff Key
19 Not Available As Spare Part - Gear Train
20 420219340 BALANCING - Call your local BRP dealership
21 420942571 HEX. NUT M14 X 1 - Call your local BRP dealership This part replaces 420942570.
22 420840391 Allen Screw M6 X 14
23 420236322 Chain Guide
24 420240960 DISTANCE SCREW M6 X 16 - Call your local BRP dealership
25 420211756 Flange Bearing
26 Not Available As Spare Part - Dowel Tube
27 420247980 SLEEVE - Call your local BRP dealership
28 207084544 Hex. Screw M8 X 45
29 207182544 Hex. Screw M8 X 25
30 420845030 SPRING WASHER - Call your local BRP dealership
32 Not Available As Spare Part - Drive Gear
33 420632162 Needle Bearing This part replaces 420632161.
34 420627190 Thrust Washer
35 420211766 Flange Bearing
36 207181860 Hex. Screw M8 X 18
37 420240404 SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership This part replaces 420240400.
39 Not Available As Spare Part - Drive Gear
40 420297957 Camshaft Chain
41 420236310 Chain Guide
42 420236300 Chain Tension Guide
