07- Body - Bottom Pan

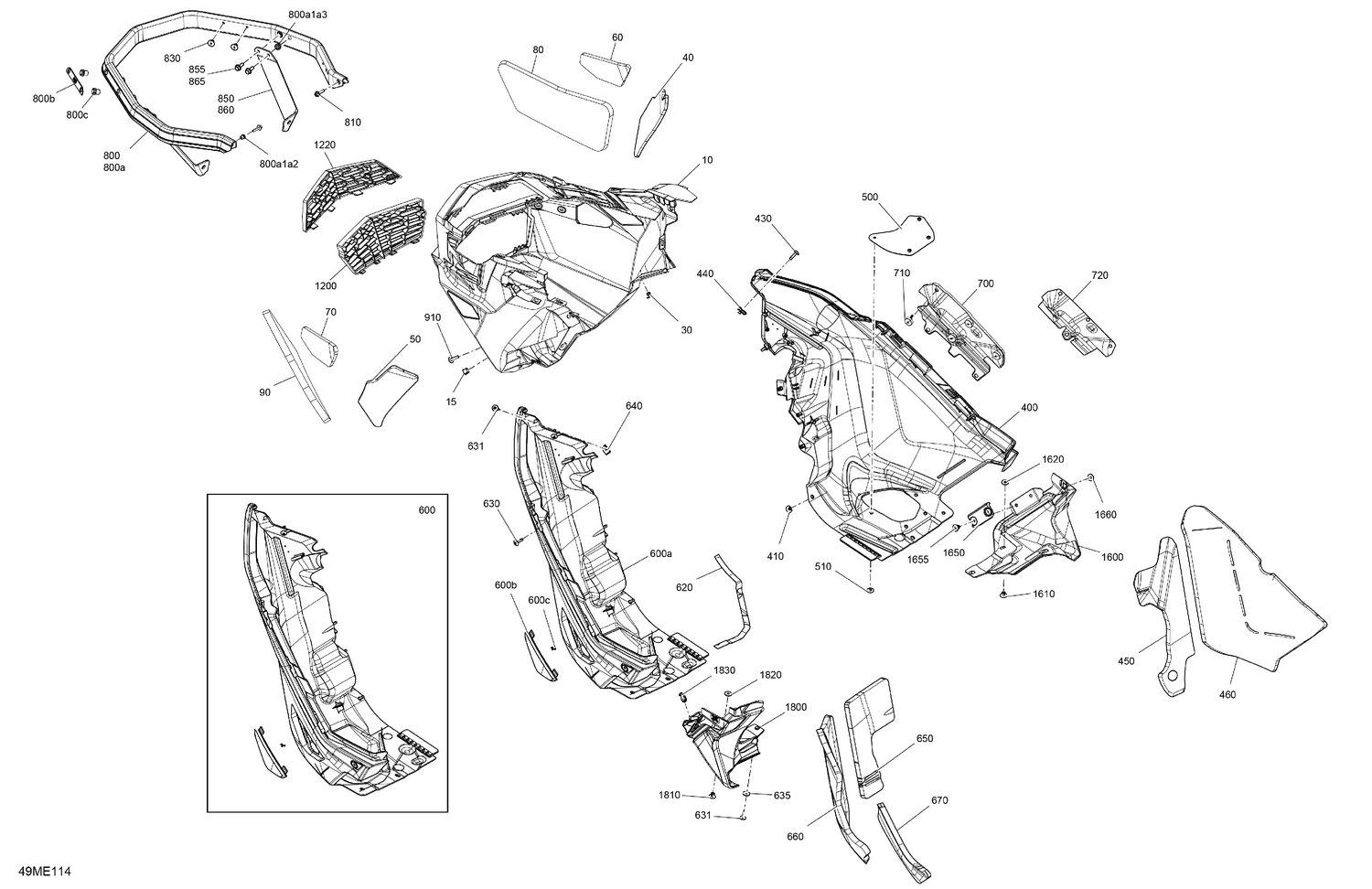

07- Body - Bottom Pan

Parts (53)

RefPart NumberDescription
10 502008638 Front Bottom Pan
15 502008550 Plug
30 293150292 Black, Pop Rivet 3/16 X ,550
40 502007788 RH Upper Bottom Pan Foam
50 502007789 LH Upper Bottom Pan Foam
60 502008308 RH Front Central Bottom Pan Foam
70 502008309 LH Front Central Bottom Pan Foam
80 502008355 Bonded Foam
90 502008356 Bonded Foam
400 502008663 Deep Black, RH Bottom Pan
410 293150292 Black, Pop Rivet 3/16 X ,550
430 250000586 Torx Truss M5 X 20
440 250000958 Panel Nut M5 X 0.8
450 502007831 RH Front Bottom Pan Foam
460 502008170 RH Rear Bottom Pan Foam
500 502007868 Plate
510 293150291 Black, Pop Rivet 3/16 X ,425
600a 502008512 Deep Black, LH Bottom Pan
600b 502007676 Bottom Pan Door
600c 269800431 Hairpin Cotter
620 219704476 Gasket, Neoprene 2000Mm Long
630 250001232 Screw Torx M5 X 20
631 250000586 Torx Truss M5 X 20
635 250200025 Washer M5
640 250000958 Panel Nut M5 X 0.8
650 502007549 LH Bottom Pan Upper Foam
660 502008334 LH Front Bottom Pan Foam
670 502008173 LH Rear Bottom Pan Foam
700 502008087 Heat Shield
710 502008752 Stopper
720 502008156 Reflective Sheet
800a1a2 502008379 Insert M5 X 0.8
800a1a3 502008380 Horn Bracket
800b 502008381 Deep Black, Front Bumper
800c 502008382 Manta Green, Front Bumper
810 502008383 Spartan Red, Front Bumper
830 502008384 Noe Yellow, Front Bumper
850 502008385 Platnum Silver, Front Bumper
855 502008386 Spartan Red, Central Trim
860 502008387 Neo Yellow, Central Trim
865 502008388 Bumper
910 502008389 Bumper
1200 502008390 Bumper
1220 502008391 Upper Prefilter Grille
1600 502008392 Deep Black, RH Bottom Pan Panel
1610 502008393 Black, Pop Rivet 3/16 X ,550
1620 502008394 Liquid Titan, Front Bumper
1650 502008395 Platnum Silver, Front Bumper
1655 502008621 Stopper This part replaces 502008396.
1660 502008397 Foam Bottom Pan Rh Upper
1800 502008398 Foam Bottom Pan Lh Upper
1810 502008399 Foam Bottom Pan Rh Upper
1820 502008400 Foam Bottom Pan Rh Lower
