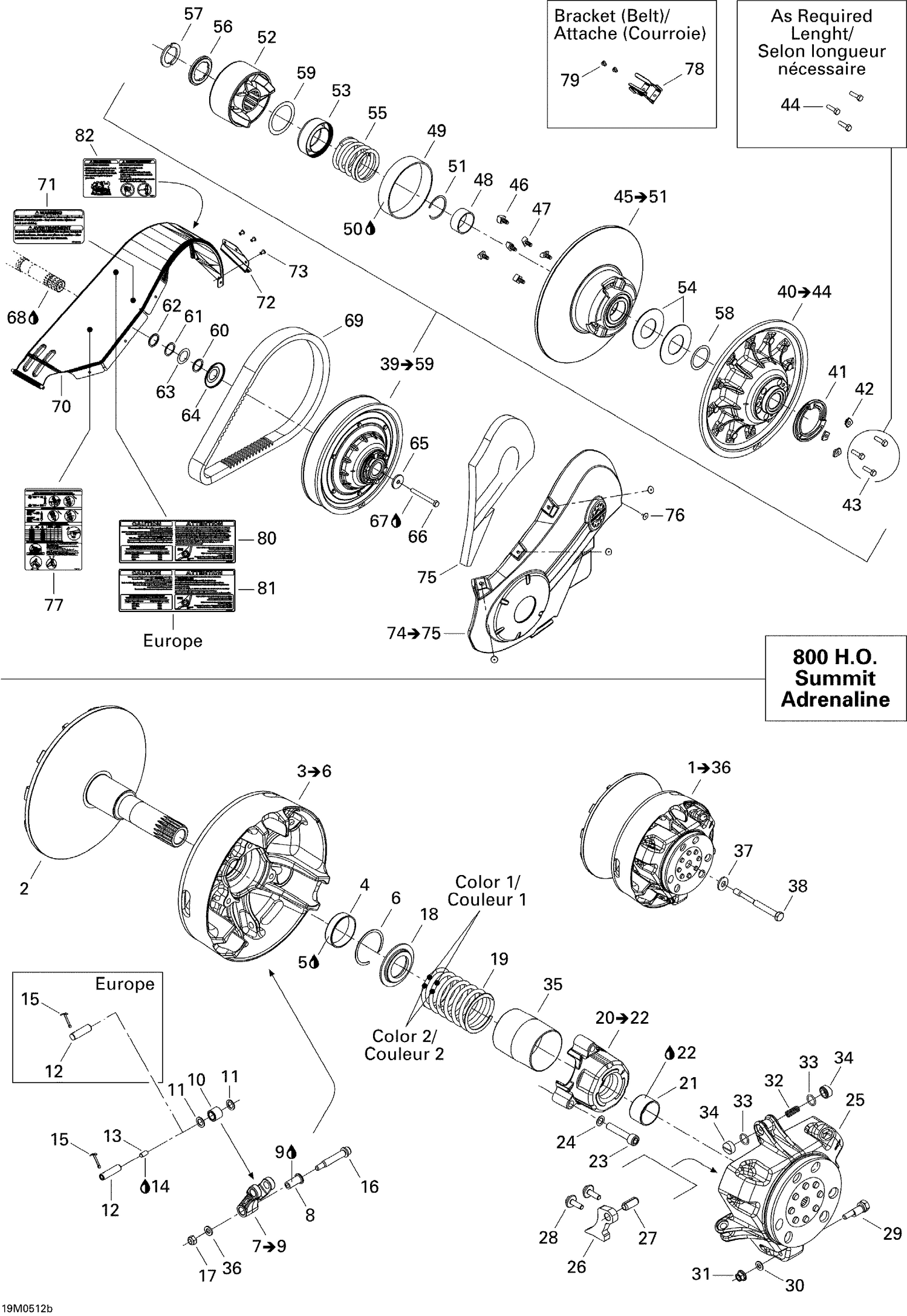

| Ref | Part Number | Description |
|---|
| 2 |
417222970 |
Flasque Fixe As*Flange-Fixe Ass. This part replaces 417222167. |
| 4 |
417222758 |
Bushing |
| 5 |
413703100 |
Loctite 609, 10 ml |
| 6 |
293370037 |
Circlip |
| 8 |
417222633 |
Bushing |
| 9 |
413703100 |
Loctite 609, 10 ml |
| 10 |
417222947 |
Roller This part replaces 417003900. |
| 11 |
417004302 |
Stopper Washer |
| 15 |
250400060 |
Cotter Pin This part replaces 732958001. |
| 16 |
417222028 |
SCREW ASS'Y - Call your local BRP dealership |
| 17 |
232561414 |
Elastic Stop Nut M6 |
| 18 |
417222312 |
Spring Seat |
| 21 |
417009204 |
Bushing |
| 22 |
413703100 |
Loctite 609, 10 ml |
| 23 |
205084044 |
Socket Head Screw M8 X 1.25 X 40 |
| 24 |
250200009 |
Lock Washer 8 mm |
| 25 |
417222213 |
Governor Cup |
| 27 |
250400050 |
Spring Pin M10 X 22 This part replaces 250400009. |
| 28 |
250000418 |
Hex. Flange Screw M6 X 18, Scotch Grip This part replaces 250000059. |
| 29 |
417222955 |
CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 30 |
417005600 |
Washer |
| 31 |
233061414 |
Hex. Flange Nut M6 |
| 32 |
417005700 |
Spring |
| 33 |
732401030 |
O-Ring |
| 34 |
417223021 |
Slider Shoe This part replaces 417222362. |
| 35 |
417009205 |
Guard |
| 36 |
234061410 |
Flat Washer 6 mm |
| 37 |
250200006 |
Spring Washer 14 mm |
| 38 |
417120000 |
Drive Pulley Bolt |
| 41 |
415005800 |
Adjustment Ring |
| 42 |
415005900 |
Adjustment Shim |
| 43 |
207162544 |
Hex. Screw M6 X 25 |
| 44 |
207162244 |
HEX. SCREW M6 X 22 - Call your local BRP dealership |
| 46 |
417126373 |
REAR CAM SLIDER SHOE, RED - Call your local BRP dealership |
| 47 |
417126374 |
Front Cam Slider Shoe, Black |
| 48 |
Not |
Available As Spare Part - Bushing |
| 49 |
417126902 |
BUSHING - Call your local BRP dealership This part replaces 414978100. |
| 50 |
413703100 |
Loctite 609, 10 ml |
| 51 |
371911200 |
CIRCLIP - Call your local BRP dealership |
| 53 |
417126381 |
GUARD - Call your local BRP dealership |
| 54 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 56 |
417126733 |
SPACER - Call your local BRP dealership |
| 57 |
417126734 |
HALF KEY - Call your local BRP dealership |
| 58 |
504112300 |
SHIM - Call your local BRP dealership |
| 59 |
417126322 |
SWIVEL ABUTMENT - Call your local BRP dealership |
| 60 |
417300252 |
Spacer |
| 61 |
417300265 |
Spacer |
| 62 |
417300252 |
Spacer |
| 63 |
504112000 |
Shim |
| 64 |
417300238 |
PROTECTOR - Call your local BRP dealership |
| 65 |
517302322 |
Strength Washer |
| 66 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 67 |
293800060 |
Loctite 243, 10 ml |
| 68 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 69 |
417300551 |
Drive Belt This part replaces 417300166. |
| 70 |
417300213 |
BELT GUARD - Call your local BRP dealership |
| 71 |
516002670 |
WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership |
| 72 |
417300216 |
BELT GUARD BRACKET - Call your local BRP dealership |
| 73 |
390909200 |
Avex Rivet |
| 75 |
417300246 |
Foam |
| 76 |
293150103 |
Pop Rivet 3/16" |
| 77 |
516001639 |
Decal, Suspension Adjustment |
| 78 |
517281905 |
Bracket |
| 79 |
390402200 |
Pop Rivet 3/16" |
