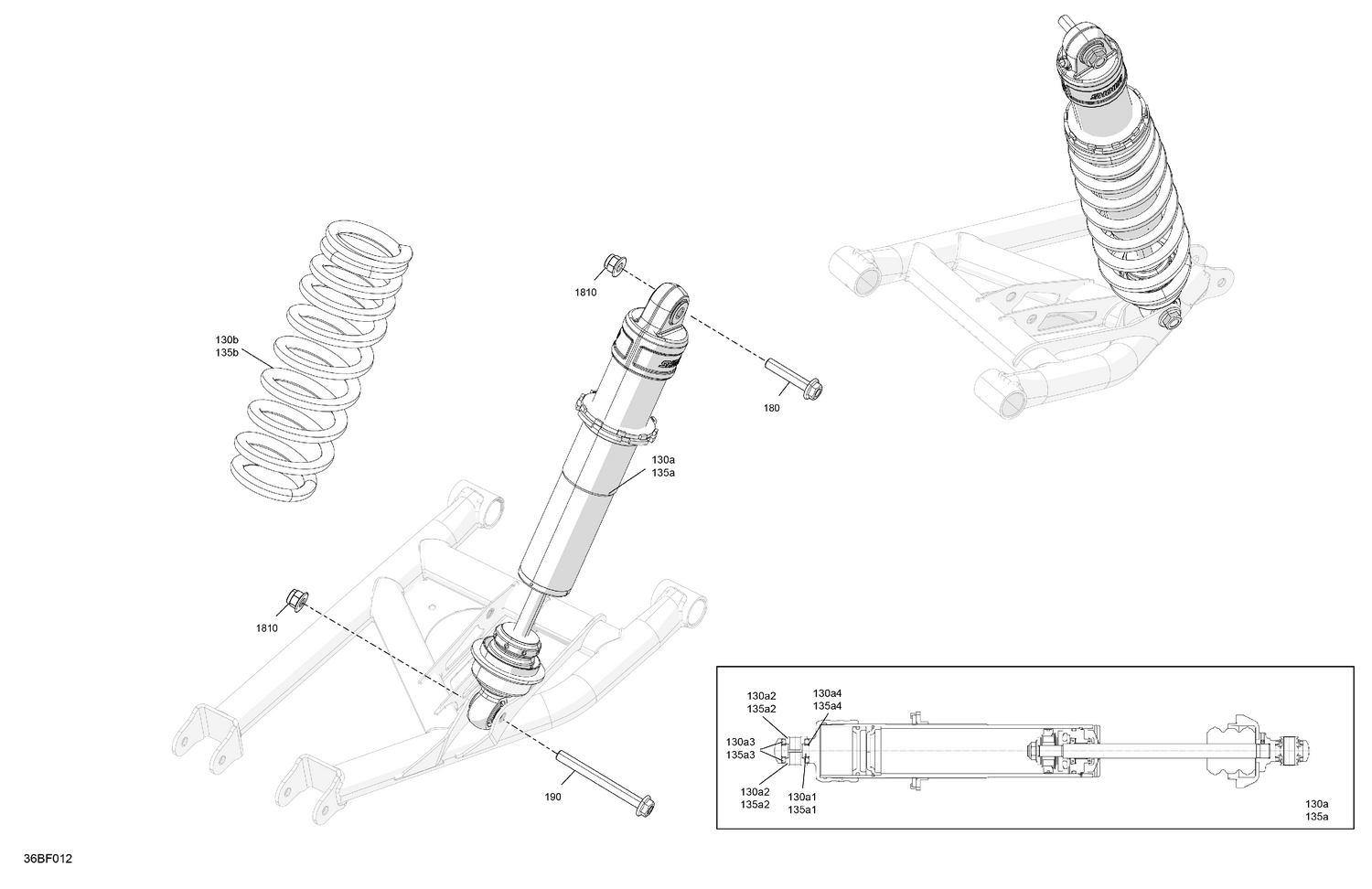

05- Suspension - Rear Shocks
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 130a1 | 715900790 | Spherical Bearing |
| 130a2 | 715900791 | Collar |
| 130a3 | 715900792 | O'Ring |
| 130a4 | 715900793 | Stopper Ring |
| 130b | 706005173 | Deep Black, Compression Spring |
| 135a1 | 715900790 | Spherical Bearing |
| 135a2 | 715900791 | Collar |
| 135a3 | 715900792 | O'Ring |
| 135a4 | 715900793 | Stopper Ring |
| 135b | 706005173 | Deep Black, Compression Spring |
| 180 | 250000857 | Flange Screw M12 X 60 |
| 190 | 250000857 | Flange Screw M12 X 60 |
