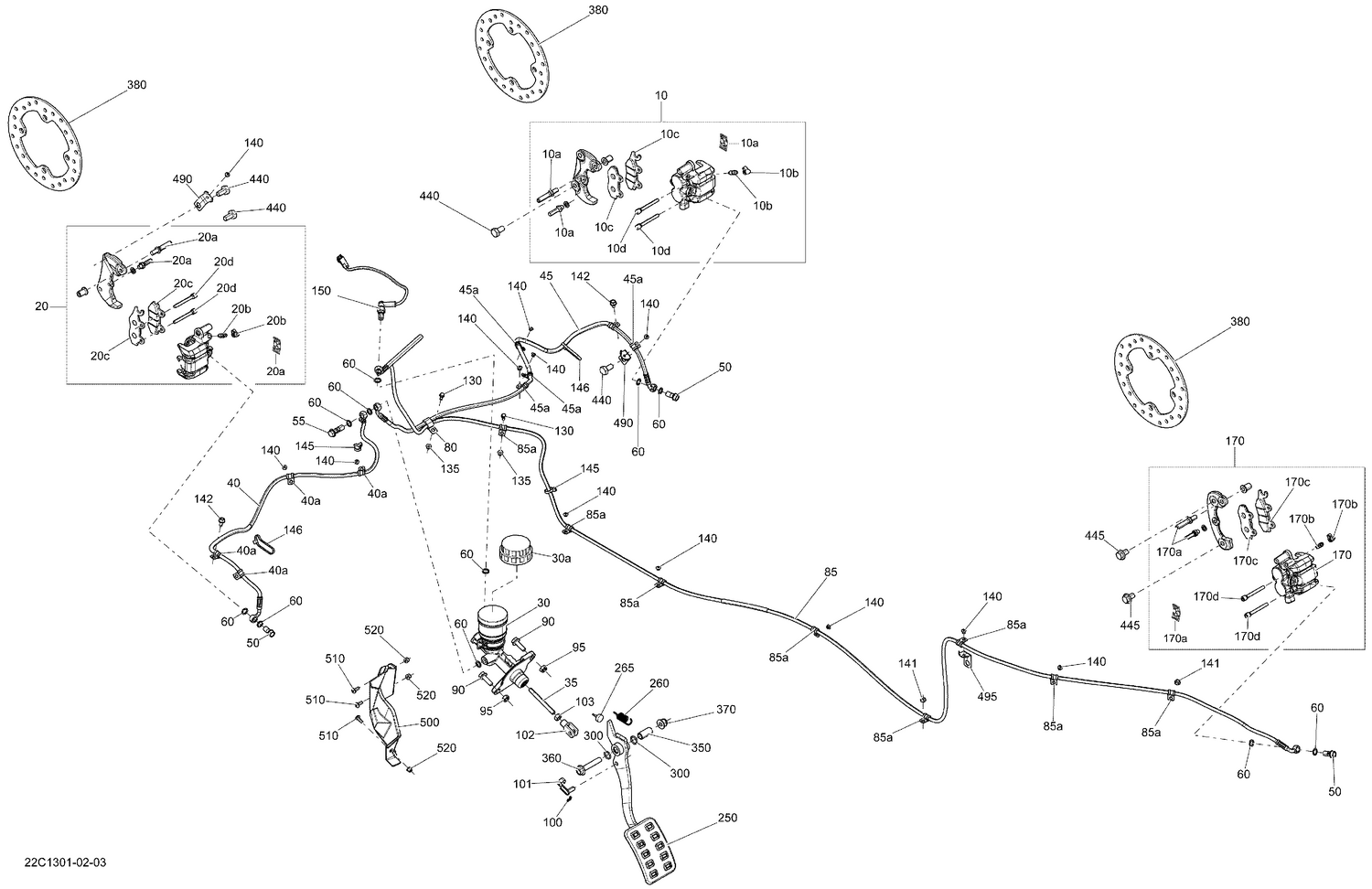

06- Brakes — Parts Catalog

Parts (49)

Ref	Part Number	Description
10a	715500383	Spring Boot Bolt Kit This part replaces 715500333.
10b	705600080	Bleeding Screw
10c	715500336	RH Brake Pad Kit
10d	715500337	Sliding Pin Kit
20a	715500383	Spring Boot Bolt Kit This part replaces 715500333.
20b	705600080	Bleeding Screw
20c	715500335	LH Brake Pad Kit
20d	715500337	Sliding Pin Kit
30a	715500332	Diaphragm Cap Kit
35	705600833	Master Cylinder Rod
40a	293650256	Clamp This part replaces 705600459.
45a	293650256	Clamp This part replaces 705600459.
50	705600609	Banjo Bolt (M10 x 1.25 thread)
55	705600958	Banjo Bolt
60	705601628	Copper Washer This part replaces 705600310.
80	293650220	Clamp
85a	293650256	Clamp This part replaces 705600459.
90	207682544	Hex. Flange Screw M8 X 25
95	232581414	Hex. Elastic Stop Nut M8
100	371800700	Cotter Pin
101	250400062	Pin This part replaces 250400056.
102	705600100	Yoke
103	232081414	Hex. Nut M8
130	210251650	Hex. Forming Screw M5 X 16 This part replaces 210251680.
135	233251494	Elastic Flange Nut M5
140	390402200	Pop Rivet 3/16"
141	232561414	Elastic Stop Nut M6
142	210261040	Hex. Flange Screw M6 X 10
145	414115200	Tie-Rap 180 mm
146	414115200	Tie-Rap 180 mm
150	705601250	Brake Switch This part replaces 705600946.
170a	715500383	Spring Boot Bolt Kit This part replaces 715500333.
170b	705600080	Bleeding Screw
170c	715500336	RH Brake Pad Kit
170d	715500337	Sliding Pin Kit
250	705600724	Brake Pedal
260	705600792	Brake Pedal Spring
265	708000759	Rubber Stopper
300	293300144	O-Ring
350	705600815	Inner Spacer
360	207605544	Hex. Flange Screw M10 X 55
370	233201414	Hex. Flange Elastic Nut M10
380	705600684	Brake Disc
440	250000057	Hex. Screw M10 X 20, Scotch Grip
445	250000060	Flange Screw M10 X 16, Scotch Grip
490	705601337	Bracket This part replaces 705601088.
495	705601337	Bracket This part replaces 705601088.
500	705600917	LH Front Deflector
510	250000742	Torx Screw M5 X 14 This part replaces 250000145.
