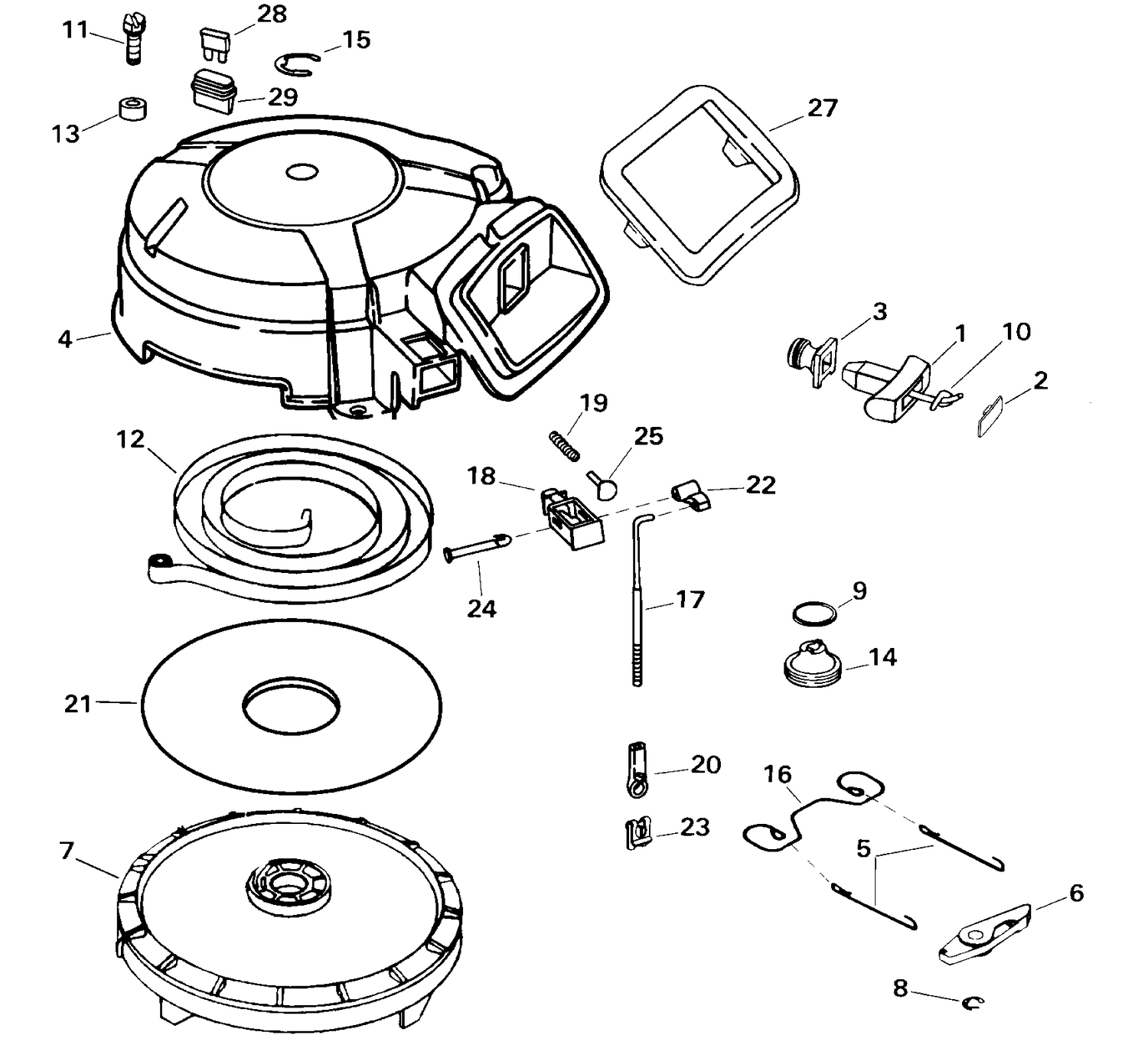

REWIND STARTER
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5000510 | HANDLE ASSY., Starter |
| 3 | 0343117 | GUIDE, Rope |
| 4 | 0337439 | HOUSING, Starter |
| 7 | 0338730 | PULLEY & PIN, Starter |
| 9 | 0342037 | WASHER, Spindle to starter |
| 13 | 0337447 | SPACER, Starter housing |
| 14 | 0338332 | SPINDLE ASSEMBLY |
| 15 | 0332338 | RETAINER, Cable |
| 17 | 0338336 | LINK, Lockout |
| 18 | 0338228 | PLUNGER, Starter lockout |
| 19 | 0338229 | SPRING, Plunger |
| 22 | 0338225 | CAM, Starter lockout |
| 23 | 0338630 | BRIDE, à ressort, tige de commande de sens de marche vers levier coudé |
| 24 | 0339188 | PIN, Cam, lockout |
| 25 | 0338227 | TAPPET, Starter lockout |
