Parts Catalog

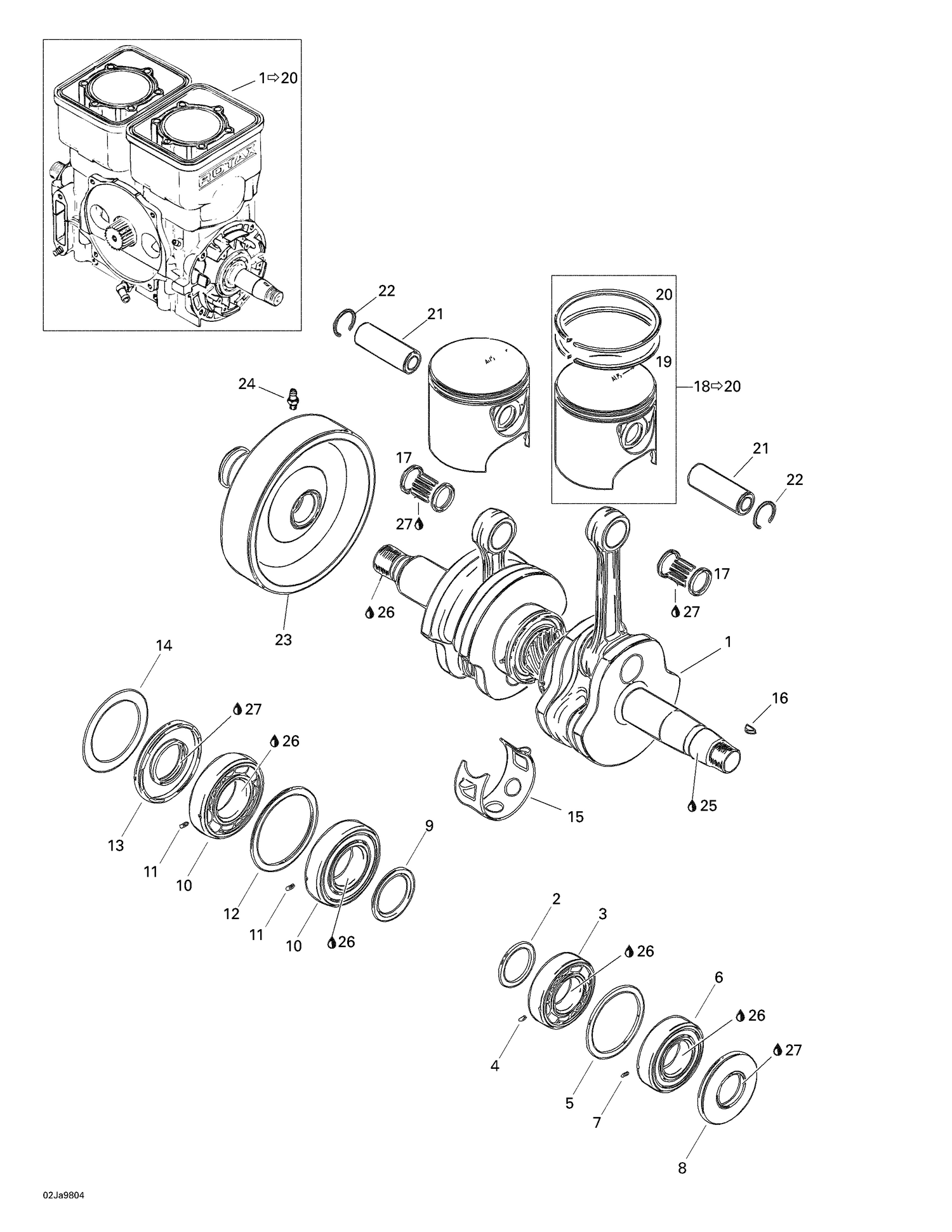

01- Crankshaft And Pistons

Parts (27)

Ref	Part Number	Description
2	420827448	RING-DISTANCE RING - Call your local BRP dealership This part replaces 290827447.
4	420929972	Dowel Pin
5	290827050	Retaining Disk
6	420832538	BALL BEARING - Call your local BRP dealership This part replaces 290832533.
7	290832470	Rolled Pin
8	420830749	Oil Seal This part replaces 290830749.
9	290827760	Distance Ring
11	420929972	Dowel Pin
12	420927710	Retaining Disk This part replaces 290927710.
13	420831952	Oil Seal This part replaces 290831952.
14	290926060	RETAINING SHIM - Call your local BRP dealership
15	290926070	Retaining Ring
16	420246055	Woodruff Key This part replaces 290246055.
17	420832421	NEEDLE BEARING - Call your local BRP dealership This part replaces 290832420.
19	290815080	Rectangular Ring 82.00 mm
20	290815070	Semi-Trapez Ring 82.00 mm
21	420916404	Piston Pin This part replaces 290916401.
22	290845100	Circlip
24	290499113	GREASE FITTING - Call your local BRP dealership
25	293800060	Loctite 243, 10 ml This part replaces 293800015.
26	293800023	LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
27	413707000	Dow Corning 111, 150 g
28	290886317	Engine Gasket Set (Not Shown)
290815071	Semi-Trapez	Ring 82.25 mm 290815071
290815072	Semi-Trapez	Ring 82.50 mm 290815072
290815081	Rectangular	Ring 82.25 mm 290815081
290815082	Rectangular	Ring 82.50 mm 290815082
