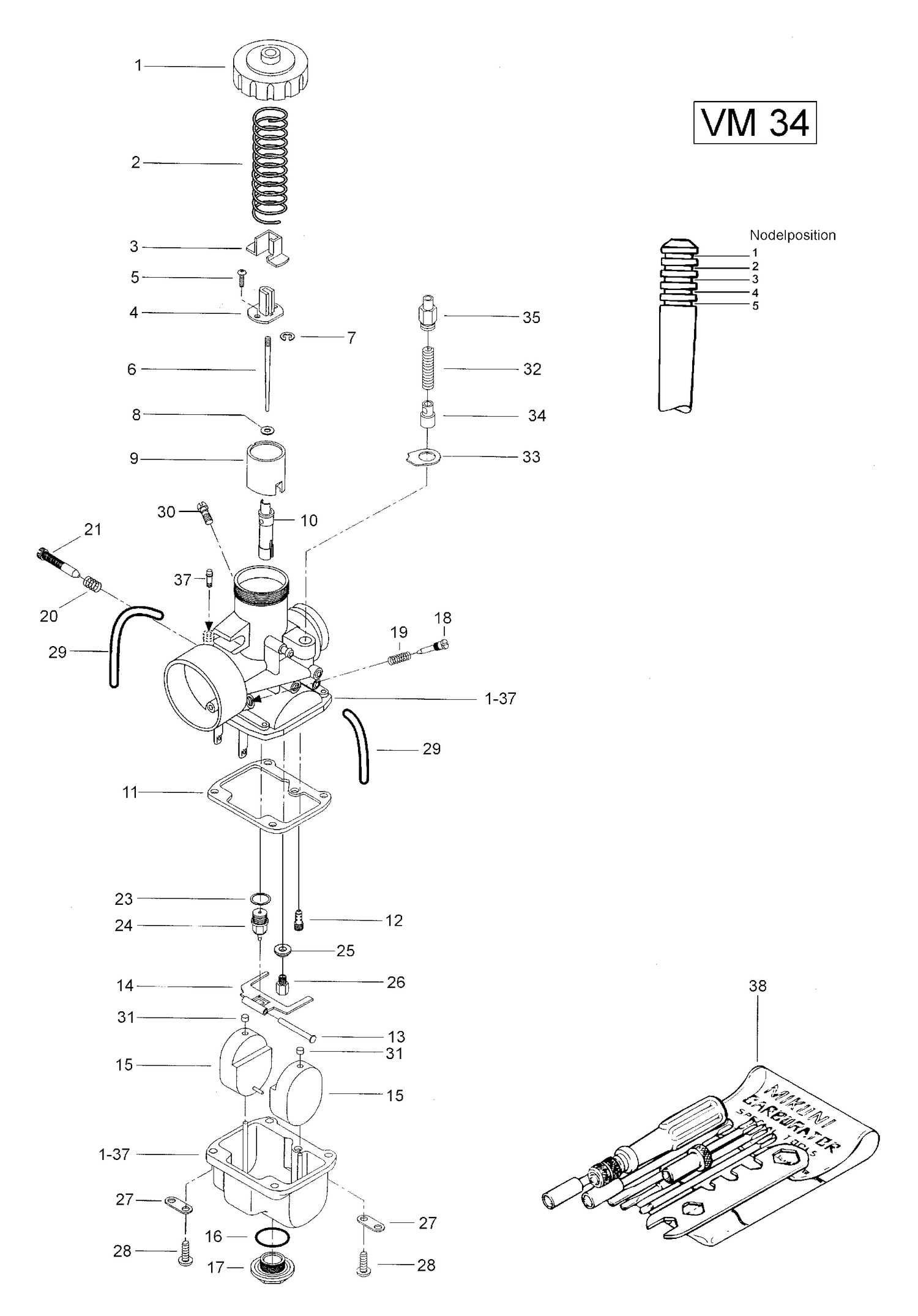

02- Carburetor
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 404103700 | Cover |
| 2 | 404154800 | Throttle valve sring |
| 3 | 404122100 | Cover |
| 4 | 404160800 | CONNECTOR - Call your local BRP dealership |
| 5 | 404121300 | Screw + lock washer |
| 6 | 404101900 | NEEDLE JET J8-6DH04 - Call your local BRP dealership |
| 7 | 404152400 | E-ring |
| 8 | 404117000 | Packing |
| 9 | 404128400 | Slide 2.5 |
| 10 | 404107000 | NEEDLE JET - Call your local BRP dealership |
| 11 | 404104200 | Gasket pan |
| 12 | 404109100 | PILOT JET PJ40 - Call your local BRP dealership |
| 13 | 404103300 | Float arm pin |
| 14 | 404107600 | Float arm |
| 15 | 404107100 | FLOAT - Call your local BRP dealership |
| 16 | 404107300 | O-ring |
| 17 | 404107400 | Drain plug screw |
| 18 | 404149000 | AIR SCREW - Call your local BRP dealership |
| 19 | 404139800 | SPRING - Call your local BRP dealership |
| 20 | 404101700 | Spring |
| 21 | 404125200 | THROTTLE SCREW - Call your local BRP dealership |
| 23 | 404101600 | Gasket |
| 24 | 404103200 | Needle valve 1.5 |
| 25 | 404110900 | BAFFLE RING - Call your local BRP dealership |
| 26 | 404100400 | Main jet 270 PTO |
| 26 | 404100500 | Main jet 280 MAG |
| 27 | 404103000 | PLATE - Call your local BRP dealership |
| 28 | 404102000 | Screw + lock washer |
| 29 | 404161802 | Vent tube |
| 30 | 404153400 | Nipple |
| 31 | 404105800 | Cap |
| 32 | 404127400 | SPRING - Call your local BRP dealership |
| 33 | 404156400 | Plate |
| 34 | 404161000 | PLUNGER ASS'Y - Call your local BRP dealership |
| 35 | 404161100 | GUIDE HOLDER - Call your local BRP dealership |
| 37 | 404158900 | Filter |
