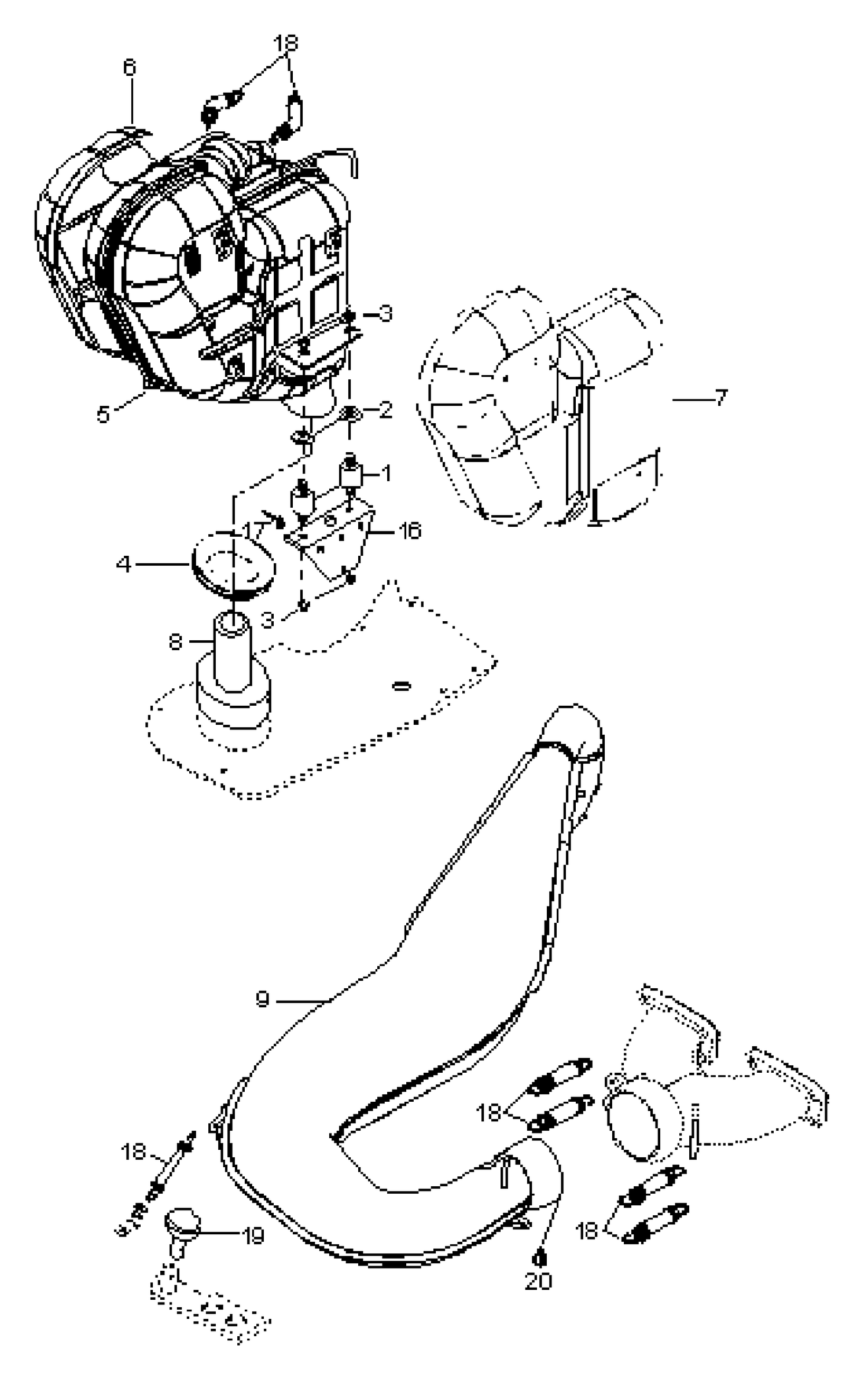

01- Muffler
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514052889 | RUBBER MOUNT - Call your local BRP dealership |
| 2 | 20087 | Washer |
| 3 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 4 | 570027300 | Rubber for grommet |
| 6 | 514052732 | R.H. heat shield |
| 7 | 514052733 | R.H. heat shield |
| 8 | 5345778 | Extension Pipe of Silenc. |
| 9 | 5145519 | Tunepipe with cover |
| 10 | 514052984 | Tunep. cover, lower |
| 11 | 514052714 | Tunep. cover, upper |
| 12 | 514053074 | Clamp |
| 13 | 514052962 | Clamp |
| 14 | 514052735 | Clamp |
| 15 | 415107100 | Spring This part replaces 414893700. |
| 16 | 5345581 | Exhaust pipe support |
| 17 | 36489 | Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 18 | 415107100 | Spring |
| 19 | 514053654 | Rubber Bumper This part replaces 570048700. |
