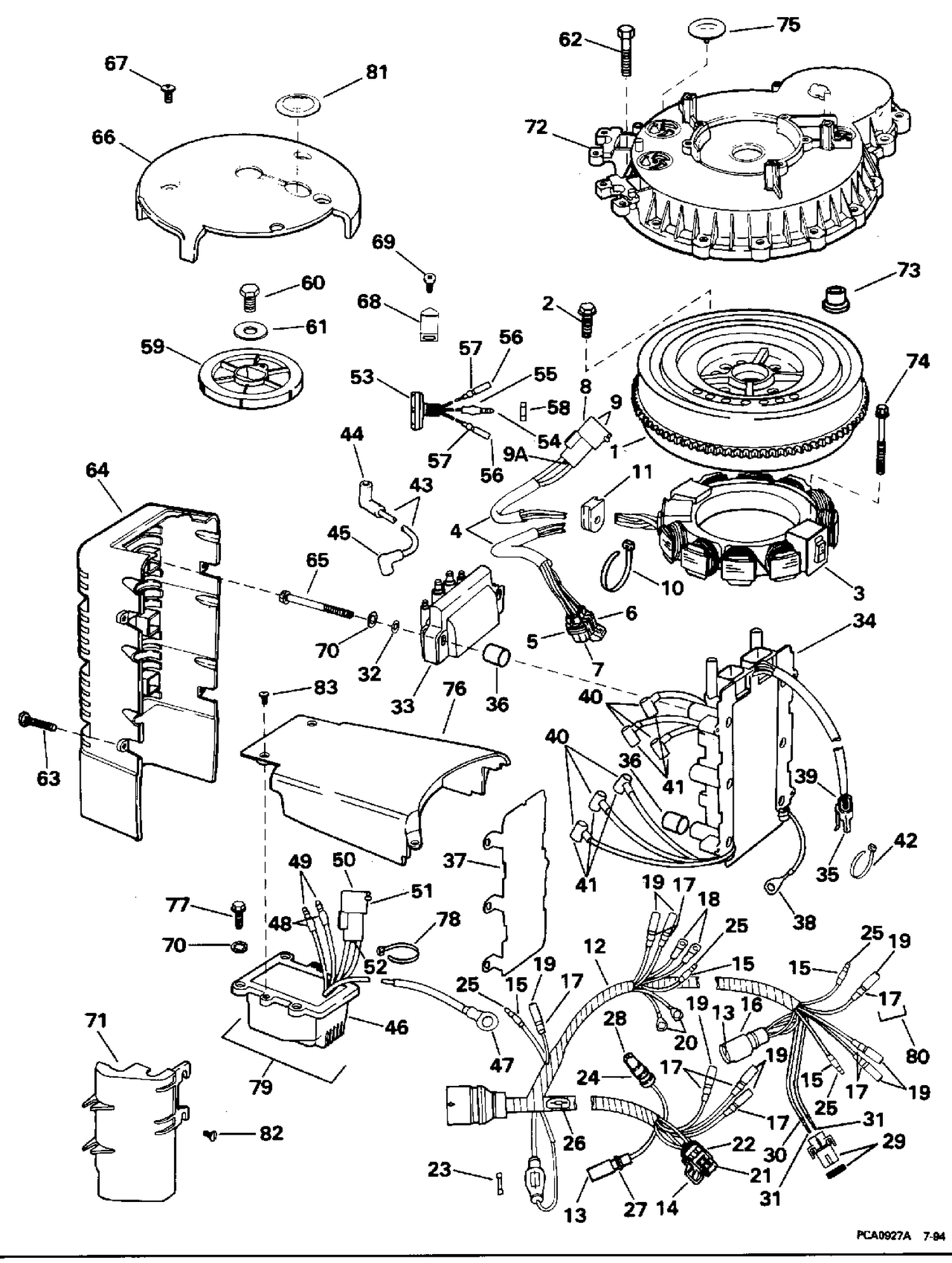

| Ref | Part Number | Description |
|---|
| 1 |
0584350 |
FLYWHEEL Assy |
| 2 |
0336135 |
SCREW, Flywheel |
| 3 |
0584981 |
STATOR Assy |
| 11 |
0336732 |
GROMMET |
| 12 |
0585240 |
ENGINE CABLE ASSY. |
| 12 |
0585251 |
ENGINE CABLE ASSY. |
| 33 |
0583740 |
COIL Assy |
| 34 |
0584985 |
POWER PACK |
| 36 |
0513986 |
TUBING, Wire protector |
| 43 |
5005805 |
ENSEMBLE CÂBLAGE, bobine allumage, 15½ " (394 mm) This part replaces 0584919. |
| 43 |
5005806 |
ENSEMBLE CÂBLAGE, bobine allumage, 14½ " (370 mm) This part replaces 0584920. |
| 43 |
5005807 |
LEAD, Ignition coil 11 1/4 in. (286mm) This part replaces 0584921. |
| 46 |
0584093 |
RECTIFIER & REGULATOR |
| 53 |
0585146 |
INTERRUPTEUR CORRECTION D'ASSIETTE/RELEVAGE This part replaces 0584841. |
| 59 |
0513917 |
TIMING WHEEL |
| 61 |
0314099 |
RONDELLE, vis, pignon de distribution |
| 62 |
0909533 |
SCREW, Pressure relief valve cover |
| 64 |
0513584 |
COVER, Power pack |
| 65 |
0331102 |
SCREW, Coil to block |
| 66 |
0335428 |
CACHE, capteur |
| 68 |
0335204 |
INDICATEUR DE CALAGE |
| 71 |
0340125 |
BRACKET, Motor cable |
| 72 |
0433581 |
COVER Assy, Flywheel |
| 74 |
0308995 |
SCREW, Front mount |
| 75 |
0336492 |
SOUPAPE, couvercle de volant-moteur |
| 76 |
0584415 |
COVER, Power pack to flywheel |
| 78 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 79 |
0350357 |
GASKET, BASE PLATE This part replaces 0342291. |
| 80 |
0512743 |
DISPOSITIF DE RETENUE |
| 81 |
0316074 |
BOUCHON, couvercle de volant-moteur |
