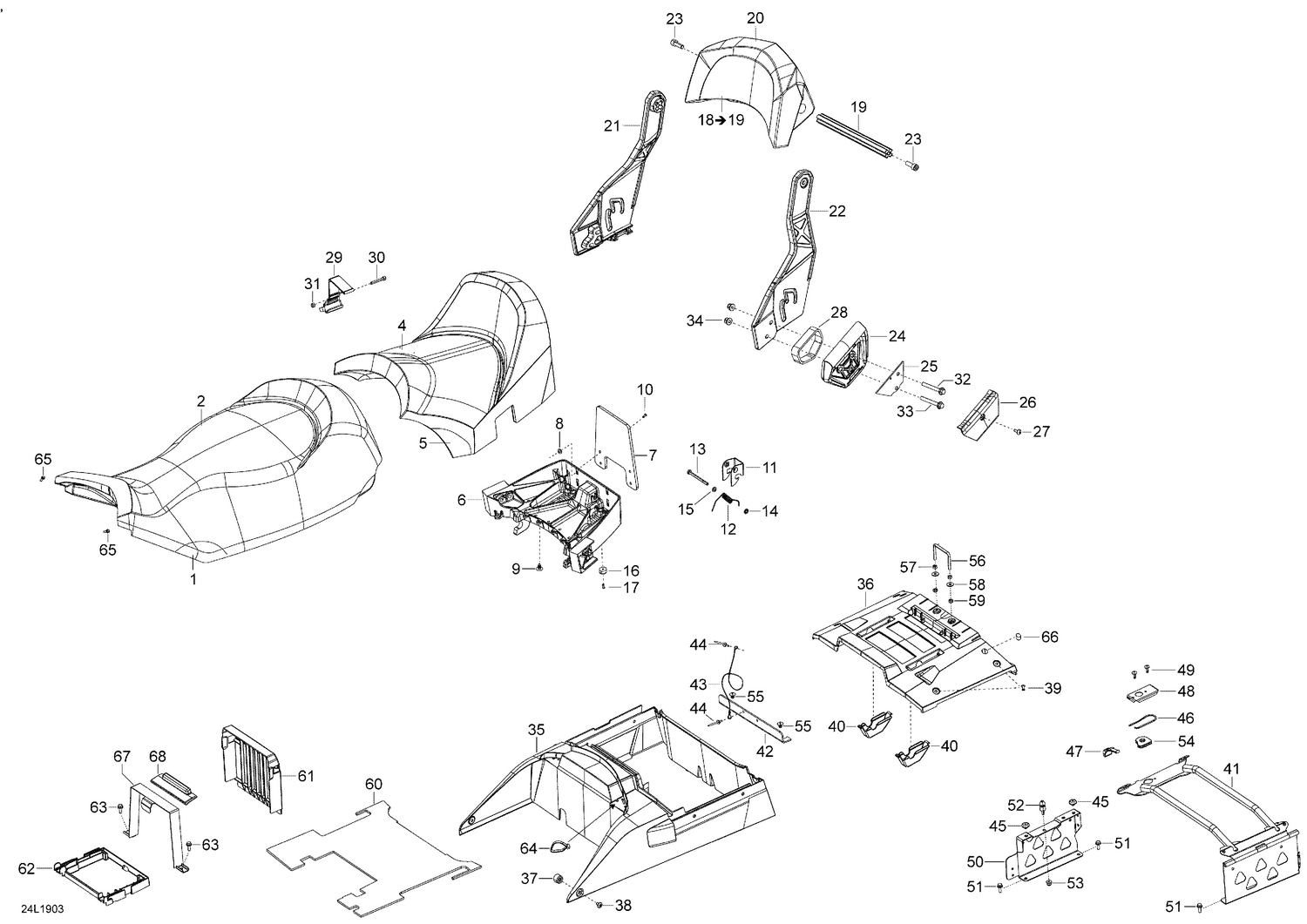

09- Seat Commander - 600 E-TEC
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510006315 | Front Seat Foam |
| 2 | 510006371 | Front Cover |
| 3 | 515178222 | Heated Film |
| 35 | 510006243 | Storage Box |
| 36 | 510006244 | Storage Box Cover |
| 37 | 510005147 | Bushing |
| 38 | 250000675 | Torx Truss Screw M6 x 12 |
| 39 | 293150104 | Pop Rivet 3/16 |
| 40 | 510004999 | Cover |
| 41 | 510005714 | Lock tube |
| 42 | 510005156 | Cable Support Plate |
| 43 | 293750070 | Seat Retainer Cable |
| 44 | 293150163 | Rivet Hucklok |
| 45 | 605452114 | Plug |
| 46 | 269700017 | Latch Spring |
| 47 | 510005072 | Puller |
| 48 | 510005698 | Lock Pin Cover |
| 49 | 250000676 | Forming Screw M5 x 16 |
| 50 | 510005845 | Locking Plate |
| 51 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 52 | 605452035 | LOCK PIN - Call your local BRP dealership |
| 53 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 54 | 510005044 | Lock Pin Guide |
| 55 | 250000675 | Torx Truss Screw M6 x 12 |
| 56 | 510004876 | FASTENER PIN - Call your local BRP dealership |
| 57 | 250000135 | Hex. Nut M6 |
| 58 | 20117 | Washer |
| 59 | 232561414 | Elastic Stop Nut M6 |
| 60 | 510005043 | Foam |
| 61 | 510005079 | Battery Cover |
| 62 | 515176804 | Battery Support |
| 63 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 64 | 605627000 | Tie-Rap |
| 65 | 250000676 | Forming Screw M5 x 16 |
| 66 | 572051500 | Cap |
| 67 | 510005143 | Battery Strap |
