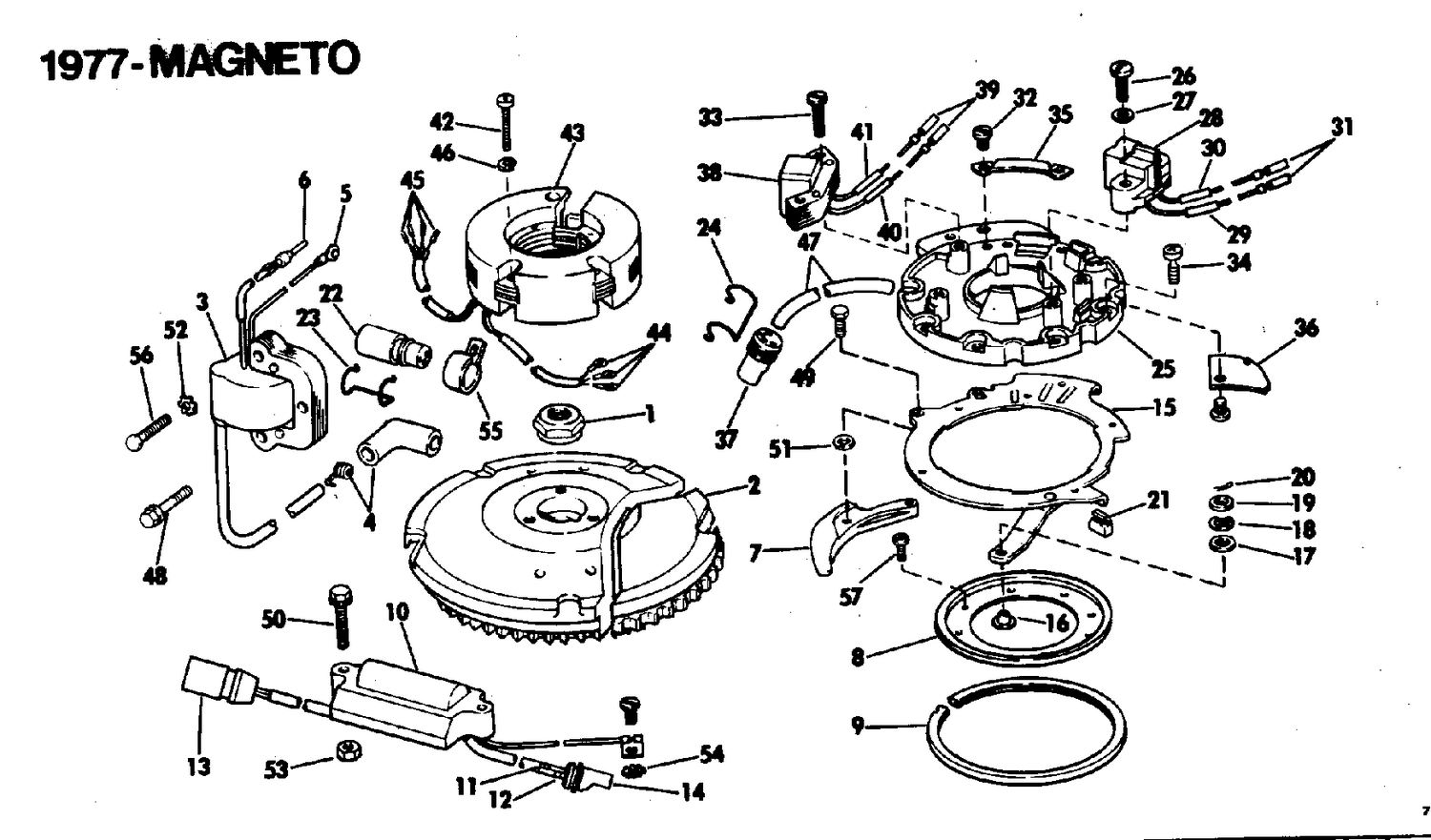

| Ref | Part Number | Description |
|---|
| 1 |
0302944 |
NIT,Flywheel |
| 2 |
0583913 |
FLYWHEEL ASSEMBLY This part replaces 0581676. |
| 2 |
0583915 |
FLYWHEEL & RING GEAR ASSY. This part replaces 0581693. |
| 3 |
0581685 |
IGNITION COIL ASSEMBLY |
| 5 |
0510767 |
RING TERMINAL |
| 7 |
0320819 |
CAM, Throttle control |
| 8 |
0322102 |
PLATE, Support |
| 9 |
0322435 |
ROULEMENT, plaque d'allumage vers support |
| 10 |
0581924 |
POWER PACK ASSEMBLY |
| 11 |
0511071 |
CLIP |
| 12 |
0511072 |
CLIP |
| 13 |
0511449 |
COMMECTOR, Coil to power pack |
| 15 |
0387419 |
RETAINER & LINK ASSEMBLY |
| 16 |
0307841 |
BUSHING, Control lever |
| 17 |
0306358 |
FLAT WASHER, Helm mounting |
| 18 |
0204757 |
BOW WASHER |
| 19 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 21 |
0326936 |
SLEEVE, Retainer This part replaces 0321563. |
| 24 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 28 |
0583387 |
SENSOR ASSEMBLY This part replaces 0581655. |
| 34 |
0511460 |
VIS, dispositif de retenue |
| 35 |
0511458 |
COLLIER, fils |
| 36 |
0511459 |
CACHE, fils |
| 38 |
0581670 |
CHARGE COIL This part replaces 0581635. |
| 43 |
0581651 |
STATOR ASSEMBLY |
| 47 |
0511482 |
SLEEVE |
| 48 |
0303459 |
ECREW,Exhaust cover,1-1/2"long |
| 49 |
0331036 |
VIS, attache de palier This part replaces 0320468. |
| 50 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0321664. |
| 56 |
0306409 |
VIS, collecteur vers carter-moteur |
| 0581629 |
0582029 |
CHARGE COIL & PLATE ASSY This part replaces 0581629. |
| 0581631 |
0581631 |
PLATE ASSEMBLEY COMPLETE |
