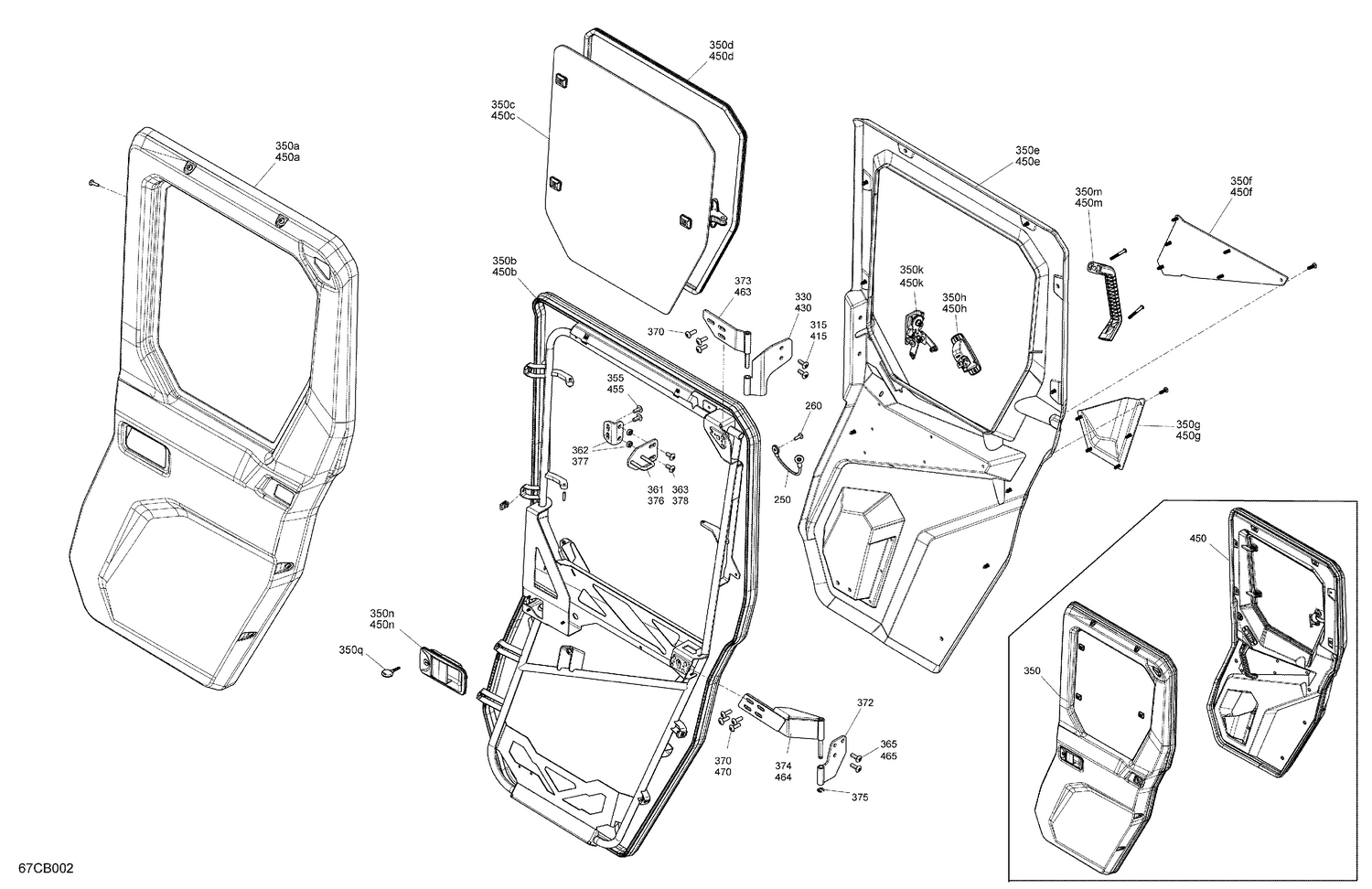

07- Enclosure Cab - Rear Doors
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 250 | 703500982 | Door Limit Device Kit |
| 260 | 250000722 | Torx Screw M6 X 20 |
| 315 | 250000874 | Torx Truss M8 X 25 |
| 330 | 705800342 | LH Upper Female Door Hinge |
| 350a | 705800598 | LH Exterior Panel |
| 350b | 705800289 | Seal 705800290 - 5000 MM |
| 350c | 705800233 | LH Sub-Ass'y, Window |
| 350d | 705800297 | Seal 705800298 - 2200 MM |
| 350e | 705800235 | LH Routed Inner Door |
| 350f | 705800600 | LH Interior Door Trim |
| 350g | 705800599 | LH Rear Door Pocket |
| 350h | 705800019 | Inner Paddle Latch |
| 350k | 703501002 | LH Interior Latch Kit |
| 350m | 705800243 | LH Interior Handle |
| 350n | 705800015 | Exterior Paddle Latch |
| 350q | 705800184 | Key Set |
| 355 | 250000953 | Torx Truss M/S M8 X 20 |
| 361 | 705800520 | Rear Door Striker |
| 362 | 705800353 | Rear Striker Support |
| 363 | 250000953 | Torx Truss M/S M8 X 20 |
| 365 | 250000953 | Torx Truss M/S M8 X 20 |
| 370 | 250000874 | Torx Truss M8 X 25 |
| 372 | 705800482 | Lower Female Door Hinge |
| 373 | 705800340 | LH Upper Male Door Hinge |
| 374 | 705801202 | NEEDS DESCRIPTION This part replaces 705800344. |
| 375 | 293370125 | Retaining Ring |
| 376 | 705800520 | Rear Door Striker |
| 377 | 705800353 | Rear Striker Support |
| 378 | 250000953 | Torx Truss M/S M8 X 20 |
| 415 | 250000874 | Torx Truss M8 X 25 |
| 430 | 705800343 | RH Female Upper Door Hinge |
| 450a | 705800601 | RH Exterior Panel |
| 450b | 705800289 | Seal 705800290 - 5000 MM |
| 450c | 705800234 | RH Sub-Ass', Window |
| 450d | 705800297 | Seal 705800298 - 2200 MM |
| 450e | 705800236 | Routed Inner Door Rh |
| 450f | 705800603 | RH Interior Door Trim |
| 450g | 705800602 | RH Rear Door Pocket |
| 450h | 705800019 | Inner Paddle Latch |
| 450k | 703501003 | RH Interior Latch Kit |
| 450m | 705800244 | RH Interior Handle |
| 450n | 705800015 | Exterior Paddle Latch |
| 455 | 250000953 | Torx Truss M/S M8 X 20 |
| 463 | 705800341 | RH Male Upper Door Hinge |
| 464 | 705801188 | NEEDS DESCRIPTION This part replaces 705800345. |
| 465 | 250000953 | Torx Truss M/S M8 X 20 |
