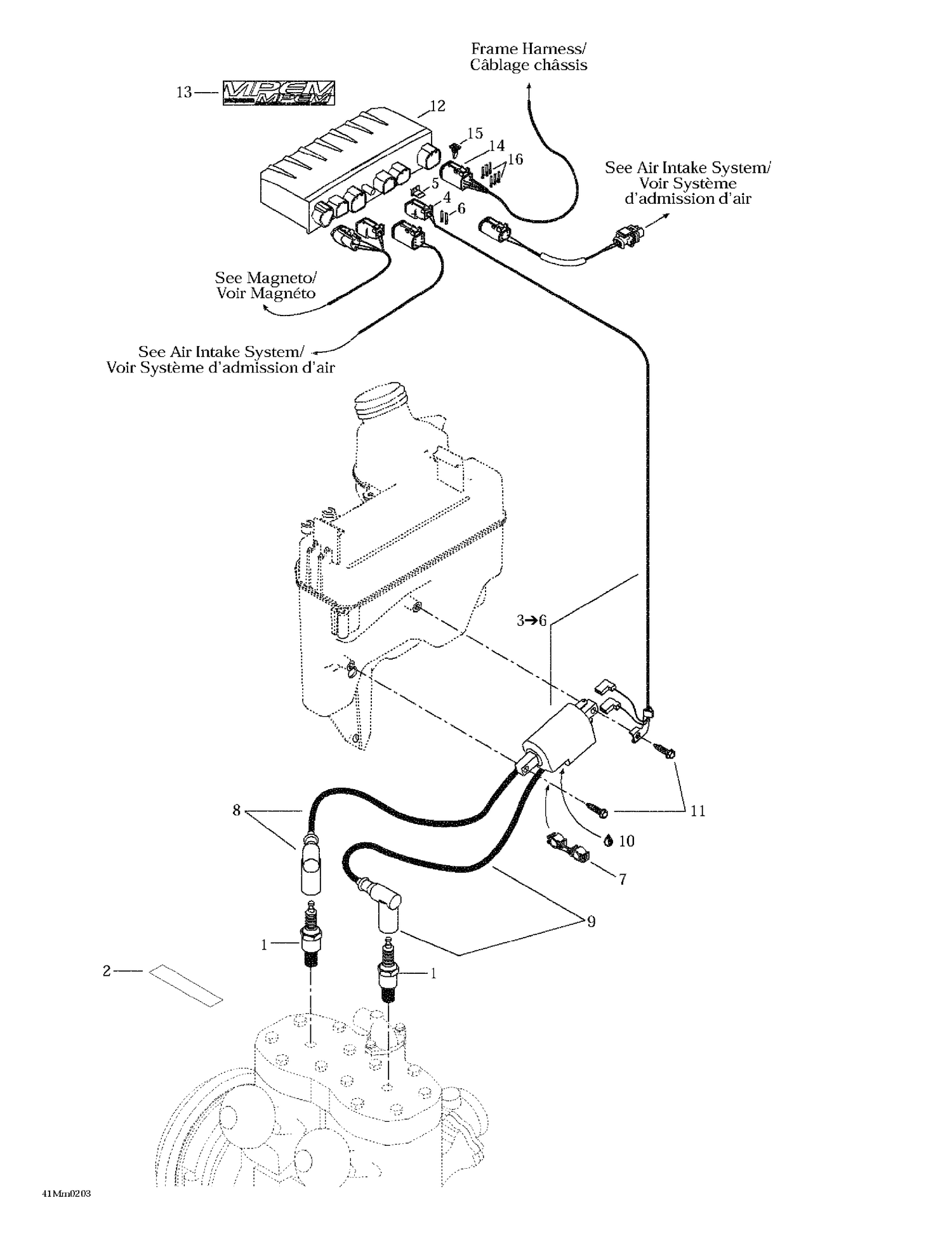

03- Ignition
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512059552 | Spark Plug NGK BR9ECS-5 |
| 2 | 516000986 | Spark Plug Decal |
| 4 | 515175670 | Female Terminal Housing, 2 Circuits |
| 5 | 515175707 | Female Lock, 2 Circuits |
| 6 | 278000632 | Female Terminal |
| 7 | 410914600 | Plastic Clip, Spark Plug Wire |
| 8 | 512059696 | Cable Ass’y, 375 mm This part replaces 512059485. |
| 9 | 512059486 | CABLE ASSY, 455 MM - Call your local BRP dealership |
| 10 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 13 | 516000245 | Electrical Box Decal |
| 14 | 515175673 | Male Housing, 6 Circuits |
| 15 | 515175705 | Femele Lock |
