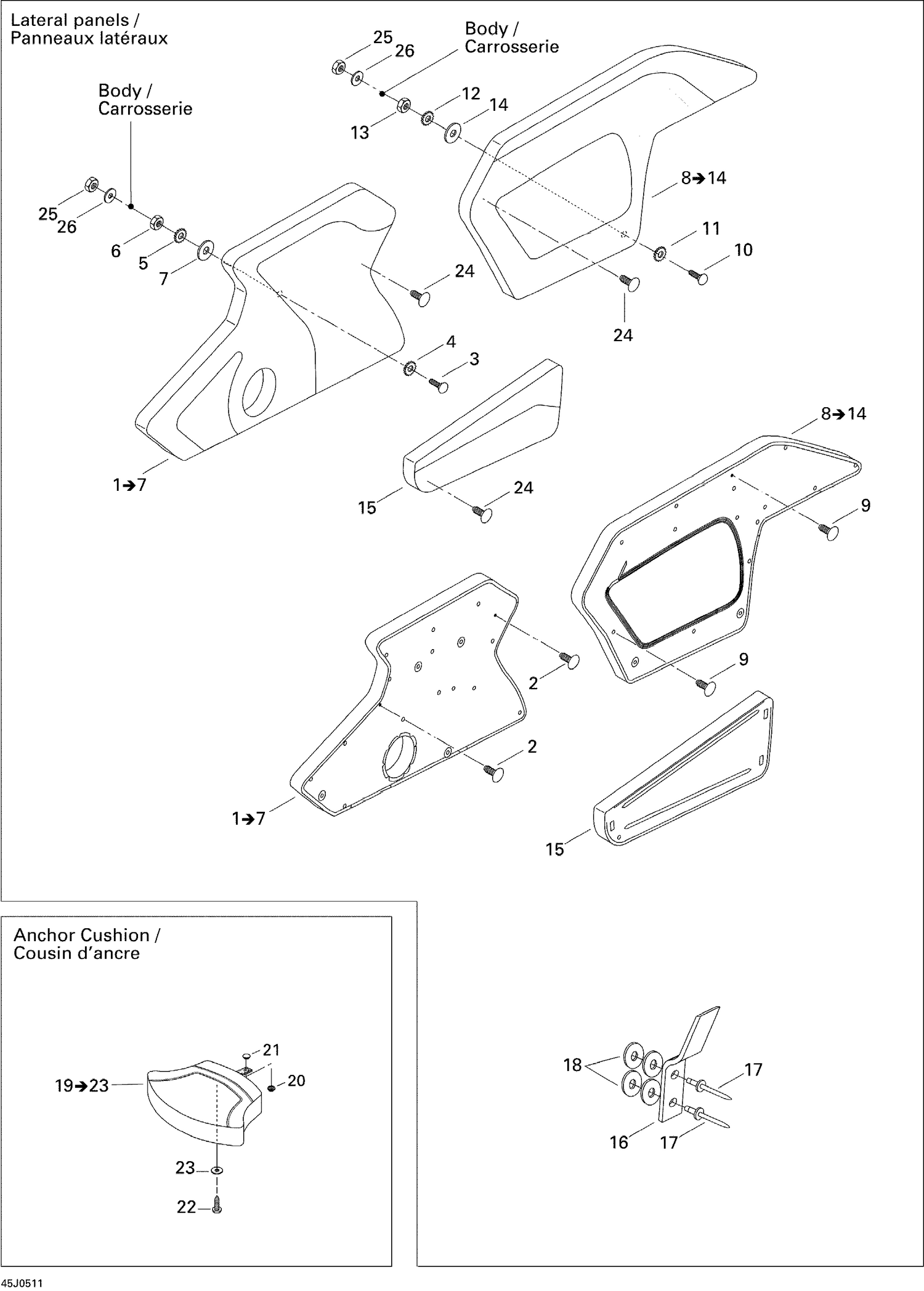

| Ref | Part Number | Description |
|---|
| 2 |
293730014 |
Black Dart |
| 3 |
204000130 |
Elevator Bolt |
| 4 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 5 |
234461608 |
External Serrated Lock Washer 6 mm |
| 6 |
204100060 |
Hex. Jam Nut |
| 7 |
234062600 |
Flat Washer M6, Stainless |
| 9 |
293730014 |
Black Dart |
| 10 |
204100143 |
ELEVATOR BOLT 1/4-20 X 2 - Call your local BRP dealership |
| 11 |
211200054 |
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership |
| 12 |
234461608 |
External Serrated Lock Washer 6 mm |
| 13 |
204100060 |
Hex. Jam Nut |
| 14 |
234062600 |
Flat Washer M6, Stainless |
| 15 |
204612961 |
Lower Panel, Port Side |
| 15 |
204612965 |
Lower Panel, Starboard |
| 16 |
204130048 |
S-clip |
| 17 |
293150201 |
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014. |
| 18 |
234051600 |
Flat Washer M5, Stainless |
| 20 |
204000083 |
SNAP BASE - Call your local BRP dealership |
| 21 |
204611609 |
SNAP COVER - Call your local BRP dealership |
| 22 |
204100054 |
SCREW 8 X 3/4? - Call your local BRP dealership |
| 23 |
211200019 |
FLAT WASHER - Call your local BRP dealership |
| 24 |
293730014 |
Black Dart |
| 25 |
243163560 |
Plastite Hex. Screw M6.8 X 35 This part replaces 211000026. |
