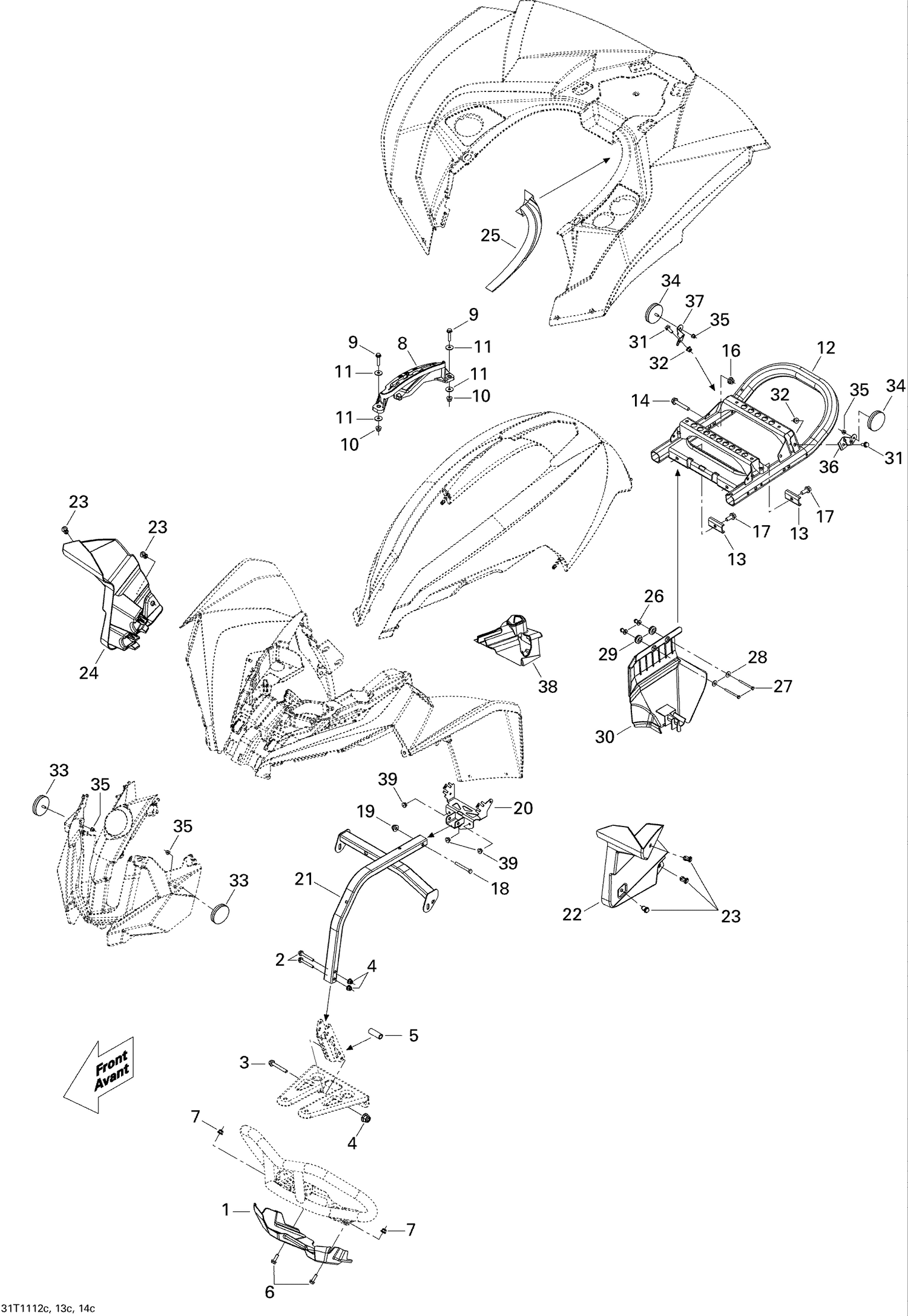

| Ref | Part Number | Description |
|---|
| 1 |
705002248 |
FRONT PROCTECTION PLATE - Call your local BRP dealership |
| 2 |
207664544 |
Hex. Flange Screw M6 X 45 |
| 3 |
207665044 |
Hex. Flange Screw M6 X 50 |
| 4 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 5 |
504152798 |
SPACER - Call your local BRP dealership |
| 6 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 8 |
705003838 |
Lever Indicator |
| 9 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
224061201 |
Flat Washer |
| 12 |
705003657 |
WELDED SUPPORT - Call your local BRP dealership |
| 13 |
705003647 |
U Reinforcement |
| 14 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 16 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 17 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 18 |
207664544 |
Hex. Flange Screw M6 X 45 |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 20 |
705002671 |
FUSE HOLDER SUPPORT - Call your local BRP dealership |
| 21 |
705003663 |
WELDED SUPPORT - Call your local BRP dealership |
| 22 |
705003379 |
LH INNER FENDER - Call your local BRP dealership |
| 23 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 24 |
705002241 |
RH INNER FENDER - Call your local BRP dealership |
| 25 |
705002451 |
Reflective Sheet |
| 26 |
517303439 |
Knob |
| 27 |
241154540 |
Hex. Screw K50 X 45 |
| 28 |
391301600 |
Washer |
| 29 |
709000582 |
Grommet This part replaces 293720053. |
| 30 |
705004036 |
Thread Cover |
| 31 |
207661654 |
Hex. Flange Screw M6 X 16 This part replaces 207661684. |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
