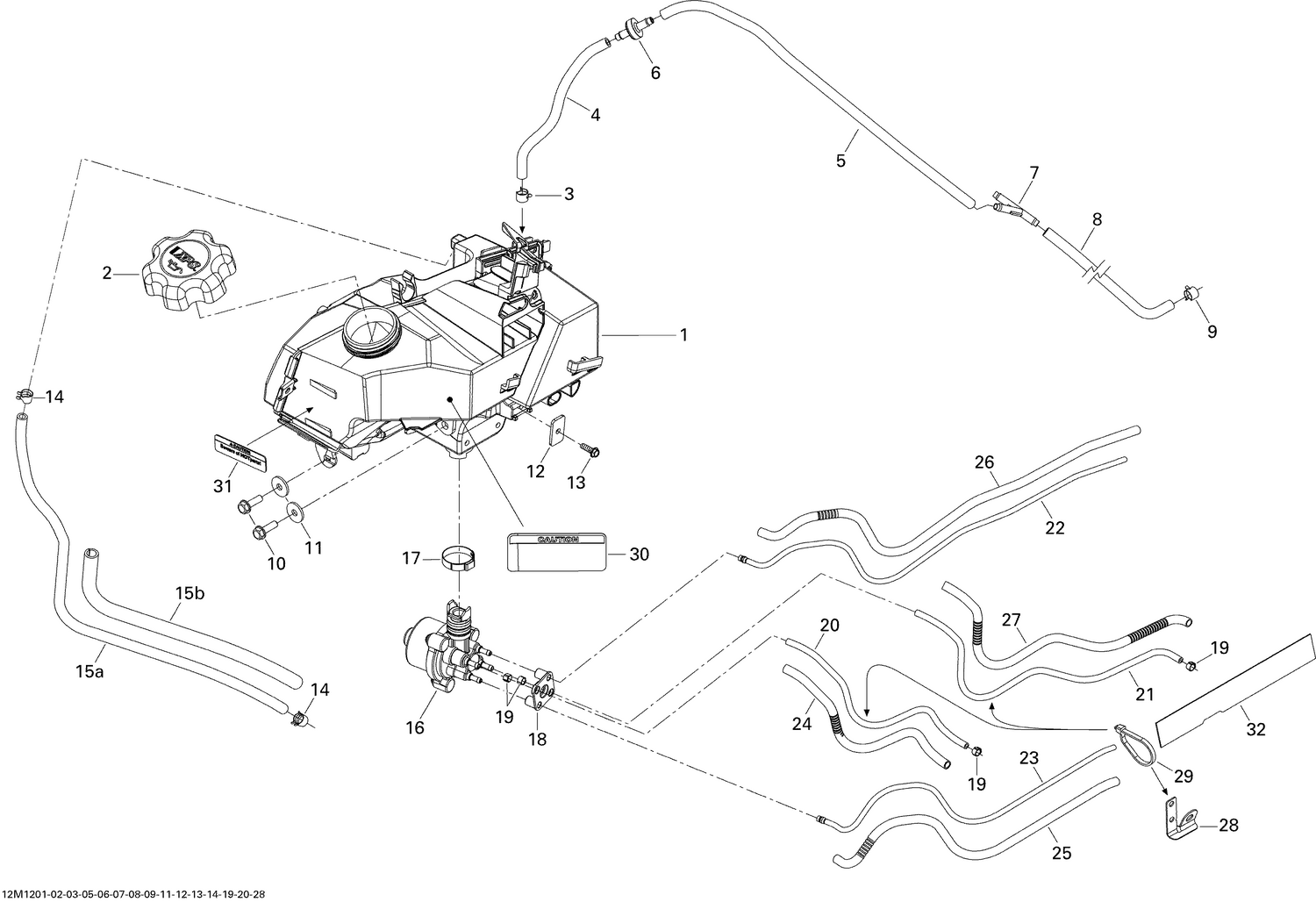

02- Oil System
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 519000278 | Oil Tank |
| 2 | 519000194 | CAP - Call your local BRP dealership |
| 3 | 414554800 | Spring Clamp |
| 4 | 219704410 | Polyurethane Hose 10000Mm Long |
| 5 | 219704410 | Polyurethane Hose 10000Mm Long |
| 6 | 275500398 | Check Valve |
| 7 | 293710059 | Y-Fitting |
| 8 | 219704410 | Polyurethane Hose 10000Mm Long |
| 9 | 414554800 | Spring Clamp |
| 10 | 250000331 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 11 | 224061201 | Flat Washer |
| 12 | 519000179 | Bracket |
| 13 | 241151640 | Hex. Flange Screw K50 X 2.24 X 16 |
| 14 | 414554800 | Spring Clamp |
| 15a | 219704410 | Polyurethane Hose 10000Mm Long |
| 17 | 293650099 | Crimp Clamp |
| 18 | 519000271 | Bracket |
| 19 | 293650100 | Oetiker Clamp |
| 20 | 219704429 | HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership |
| 21 | 219704429 | HOSE 3.5 MM 1000MM LONG - Call your local BRP dealership |
| 22 | 219704430 | HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership |
| 23 | 219704430 | HOSE 2.5 MM 1000MM LONG - Call your local BRP dealership |
| 24 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 25 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 26 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 27 | 219704425 | Tubing 6 Mm 3000Mm Long |
| 28 | 519000245 | Bracket |
| 29 | 293750002 | Tie Wrap 142 mm |
| 30 | 516005528 | NOTICE DECAL, OIL - Call your local BRP dealership This part replaces 516004719. |
| 31 | XXX | Not Available As Spare Parts |
