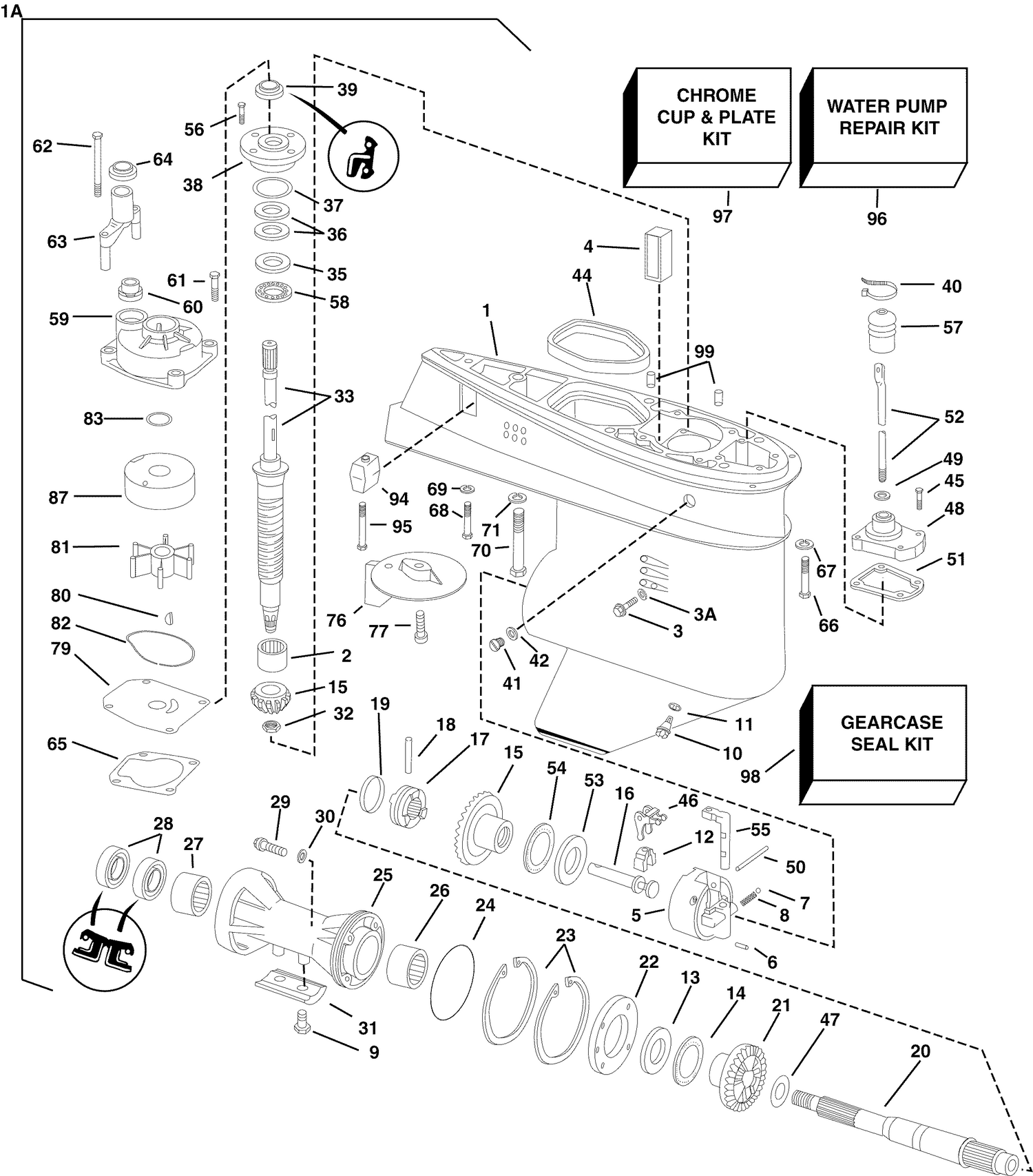

GEARCASE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5009348 | Grcse&Brg Prime This part replaces 5005458. |
| 1A | 5009330 | G-Case This part replaces 5006425. |
| 40 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 63 | 0438424 | BRACKET, Water tube |
| 68 | 0306503 | SCREW, Short |
| 70 | 0313697 | SCR,Grc to hsg.long |
| 71 | 0306314 | L'WASHER,Scr,long |
| 76 | 0127466 | TRIM TAB |
| 77 | 0313715 | SCREW, Cap, hex hd, 7/16-14 x 1 |
| 96 | 5000308 | WATER PUMP REPAIR KIT |
| 98 | 5000309 | GEARCASE SEAL KIT |
