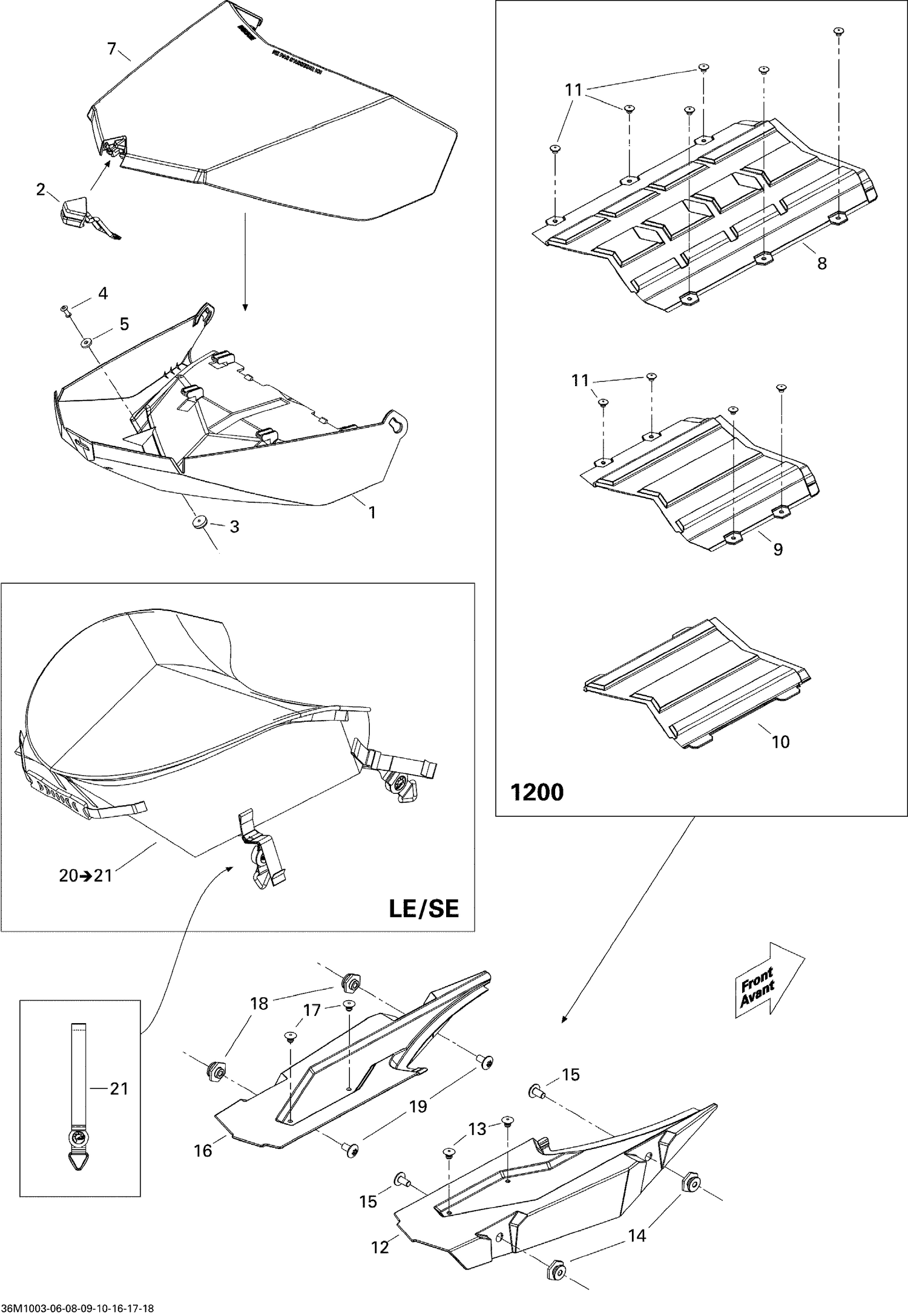

| Ref | Part Number | Description |
|---|
| 1 |
511000757 |
Trunk This part replaces 511000487. |
| 2 |
511000528 |
Bracket |
| 3 |
415018100 |
Rubber Stopper |
| 4 |
390401600 |
Pop Rivet 1/8" |
| 5 |
293150007 |
WASHER - Call your local BRP dealership |
| 7 |
511000687 |
WHITE TRUNK COVER - Call your local BRP dealership |
| 8 |
XXX |
Not Available As Spare Parts |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
XXX |
Not Available As Spare Parts |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
511000483 |
RH TUNNEL RAIL - Call your local BRP dealership |
| 13 |
293150104 |
Pop Rivet 3/16" |
| 14 |
520000889 |
Anchor Link This part replaces 520000646. |
| 15 |
250000767 |
Torx Truss Screw M6 X 12 This part replaces 250000325. |
| 16 |
511000484 |
LH TUNNEL RAIL - Call your local BRP dealership |
| 17 |
293150104 |
Pop Rivet 3/16" |
| 18 |
520000889 |
Anchor Link This part replaces 520000646. |
| 19 |
250000767 |
Torx Truss Screw M6 X 12 This part replaces 250000325. |
