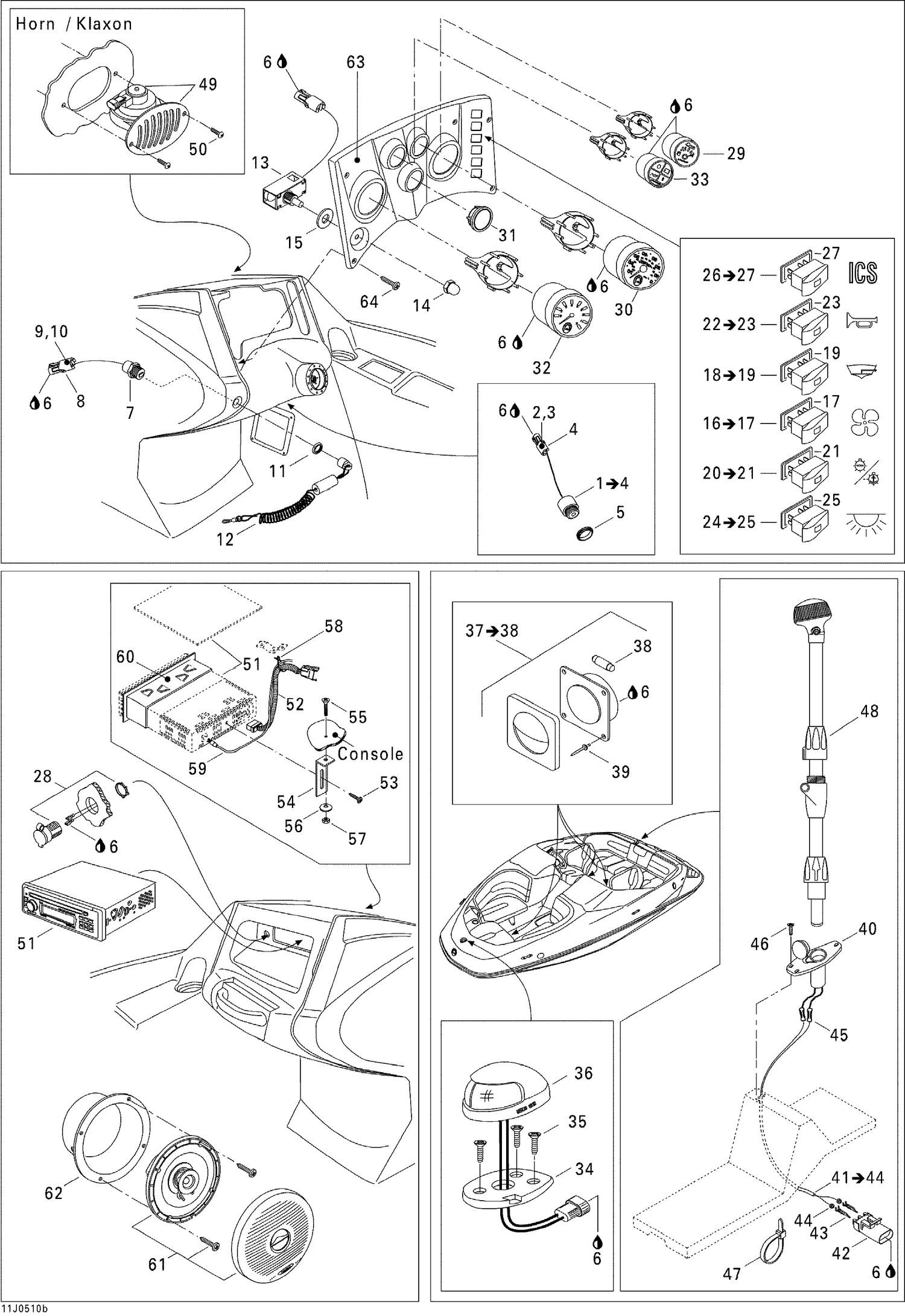

10- Electrical Accessories 2
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 278000222 | Male Terminal |
| 3 | 278000218 | Wire Seal |
| 4 | 278000217 | Female Housing, 2 Circuits |
| 5 | 278000707 | Buzzer Nut |
| 6 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 7 | 278002773 | Safety Switch This part replaces 278001734. |
| 8 | 278000273 | Male Housing, 3 Circuits |
| 9 | 278000218 | Wire Seal |
| 10 | 278000223 | Female Terminal |
| 11 | 278002963 | Safety Nut (DESS Switch) This part replaces 278000508. |
| 12 | 278002199 | Safety Lanyard, Antitheft This part replaces 278001543. |
| 13 | 278000621 | IGNITION SWITCH - Call your local BRP dealership |
| 14 | 278000565 | IGNITION SWITCH CAP, RED - Call your local BRP dealership |
| 15 | 204100027 | FLAT WASHER - Call your local BRP dealership |
| 17 | 204470132 | Gasket |
| 19 | 204470132 | Gasket |
| 21 | 204470132 | Gasket |
| 23 | 204470132 | Gasket |
| 25 | 204470132 | Gasket |
| 27 | 204470132 | Gasket |
| 28 | 710001248 | DC Outlet This part replaces 204470907. |
| 29 | 204470985 | Fuel Gauge |
| 30 | 204470986 | Speedometer Gauge |
| 31 | 204470987 | GAUGE CAP - Call your local BRP dealership |
| 32 | 204470988 | Tachometer Gauge |
| 33 | 204470989 | Engine Warning Gauge |
| 34 | 204470072 | FRONT LAMP SUPPORT - Call your local BRP dealership |
| 35 | 209642560 | PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 36 | 204470372 | Front Lamp |
| 38 | 204470081 | BULB - Call your local BRP dealership |
| 39 | 293150032 | RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 40 | 204470990 | REAR LIGHT BASE - Call your local BRP dealership |
| 42 | 278000217 | Female Housing, 2 Circuits |
| 43 | 278000222 | Male Terminal |
| 44 | 278000218 | Wire Seal |
| 45 | 202000435 | Connector With Heat Shrink |
| 46 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
| 47 | 293750002 | Tie Wrap 142 mm |
| 48 | 204470979 | REAR LIGHT POLE - Call your local BRP dealership |
| 49 | 204470801 | HORN - Call your local BRP dealership |
| 50 | 209943260 | Phillips Tapping Screw M4.2 X 32 |
| 51 | 204470946 | Compact Disk Stereo |
| 52 | 204470930 | Stereo Adaptor Harness |
| 53 | 204100148 | Pan Head Screw M5x8 |
| 54 | 204470981 | RADIO SUPPORT - Call your local BRP dealership |
| 55 | 208462060 | PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 56 | 234062600 | Flat Washer M6, Stainless |
| 57 | 232561600 | Hex. Elastic Stop Nut M6 |
| 58 | 204130098 | TIE RAP WITH DART - Call your local BRP dealership |
| 59 | 204470931 | Antenna |
| 60 | 204471010 | STEREO TRIM RING - Call your local BRP dealership |
| 61 | 204470948 | Speaker, White |
| 62 | 204470982 | SPEAKER COVER ASS'Y - Call your local BRP dealership |
| 63 | 204470949 | Fascia Ass'y |
