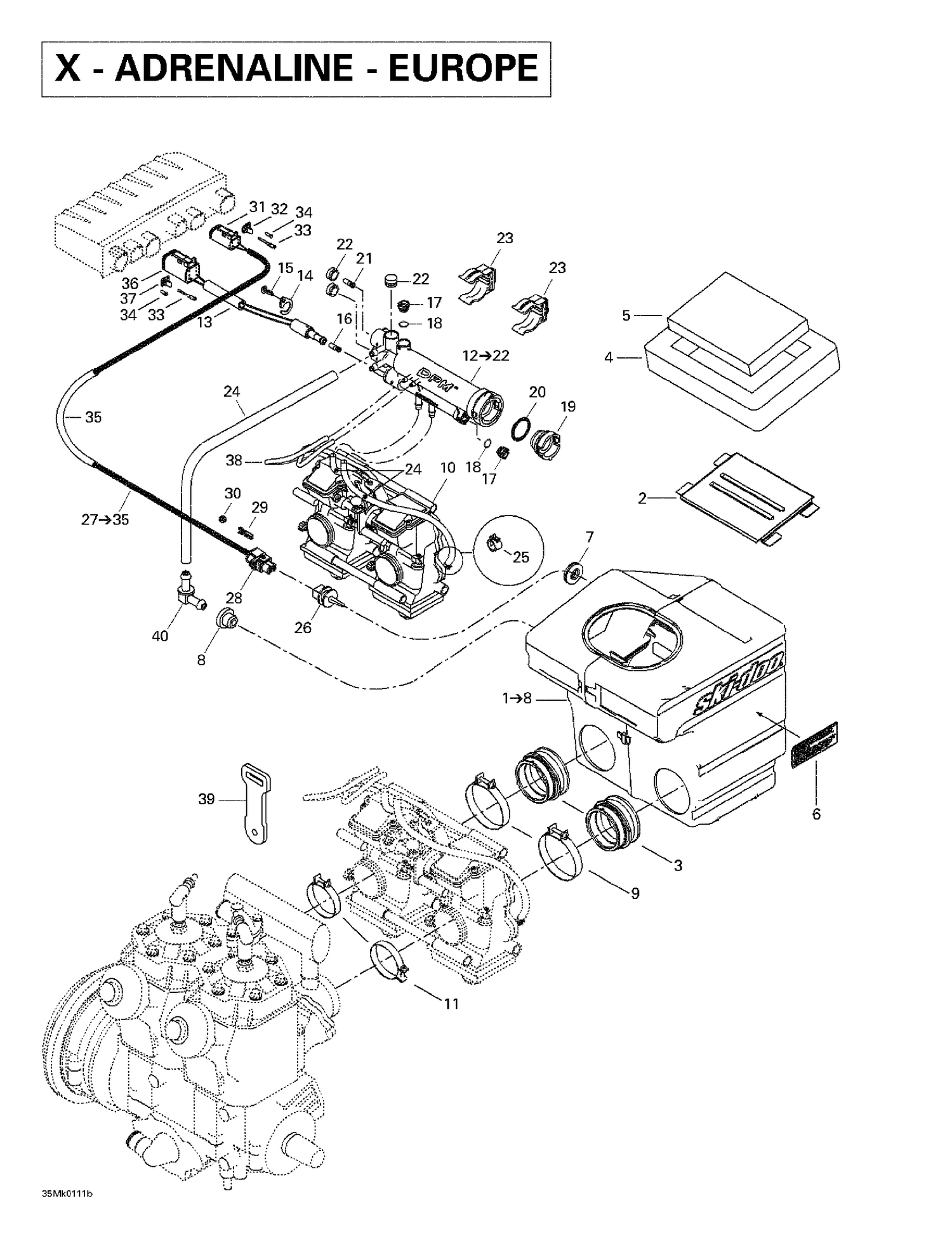

| Ref | Part Number | Description |
|---|
| 2 |
508000004 |
INTAKE GRILL - Call your local BRP dealership |
| 3 |
508000092 |
Air Intake Adaptor, 40 mm |
| 4 |
508000099 |
Lower Foam |
| 5 |
508000154 |
Air Filter |
| 6 |
516002715 |
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516000130. |
| 7 |
570065500 |
GROMMET - Call your local BRP dealership |
| 8 |
513032908 |
Grommet |
| 9 |
508000346 |
Gemi Clamp This part replaces 508000162. |
| 10 |
403138661 |
Carburetor Kit TM |
| 11 |
512059835 |
Gemi Clamp This part replaces 512059305. |
| 13 |
515175271 |
Pressure Manifold Harness |
| 14 |
415061600 |
SOLENOID LOCK - Call your local BRP dealership |
| 15 |
241140060 |
Screw K40 X 10 |
| 16 |
404161825 |
STARTER JET - Call your local BRP dealership |
| 17 |
512058921 |
Cap |
| 18 |
512058925 |
O-Ring |
| 19 |
512058949 |
Cap |
| 20 |
512058950 |
O-Ring |
| 21 |
Not |
Available As Spare Part - Starter Jet |
| 22 |
Not |
Available As Spare Part - Cap |
| 23 |
512058919 |
SUPPORT - Call your local BRP dealership |
| 24 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 25 |
414554800 |
Spring Clamp |
| 26 |
270600000 |
AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 28 |
515175588 |
FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership |
| 29 |
278000998 |
Female Terminal |
| 30 |
278000999 |
Wire Seal |
| 31 |
515175245 |
Female Terminal Housing (4 circuits) |
| 32 |
515175246 |
Female Lock (4 circuits) |
| 33 |
409015100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 34 |
515175303 |
PLUG - Call your local BRP dealership |
| 35 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 36 |
409015400 |
FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 37 |
409014900 |
FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership |
| 38 |
404161904 |
HOSE - Call your local BRP dealership |
| 39 |
512059372 |
CARBURETOR LATCH - Call your local BRP dealership |
