| Ref | Part Number | Description |
|---|
| 1 |
0438796 |

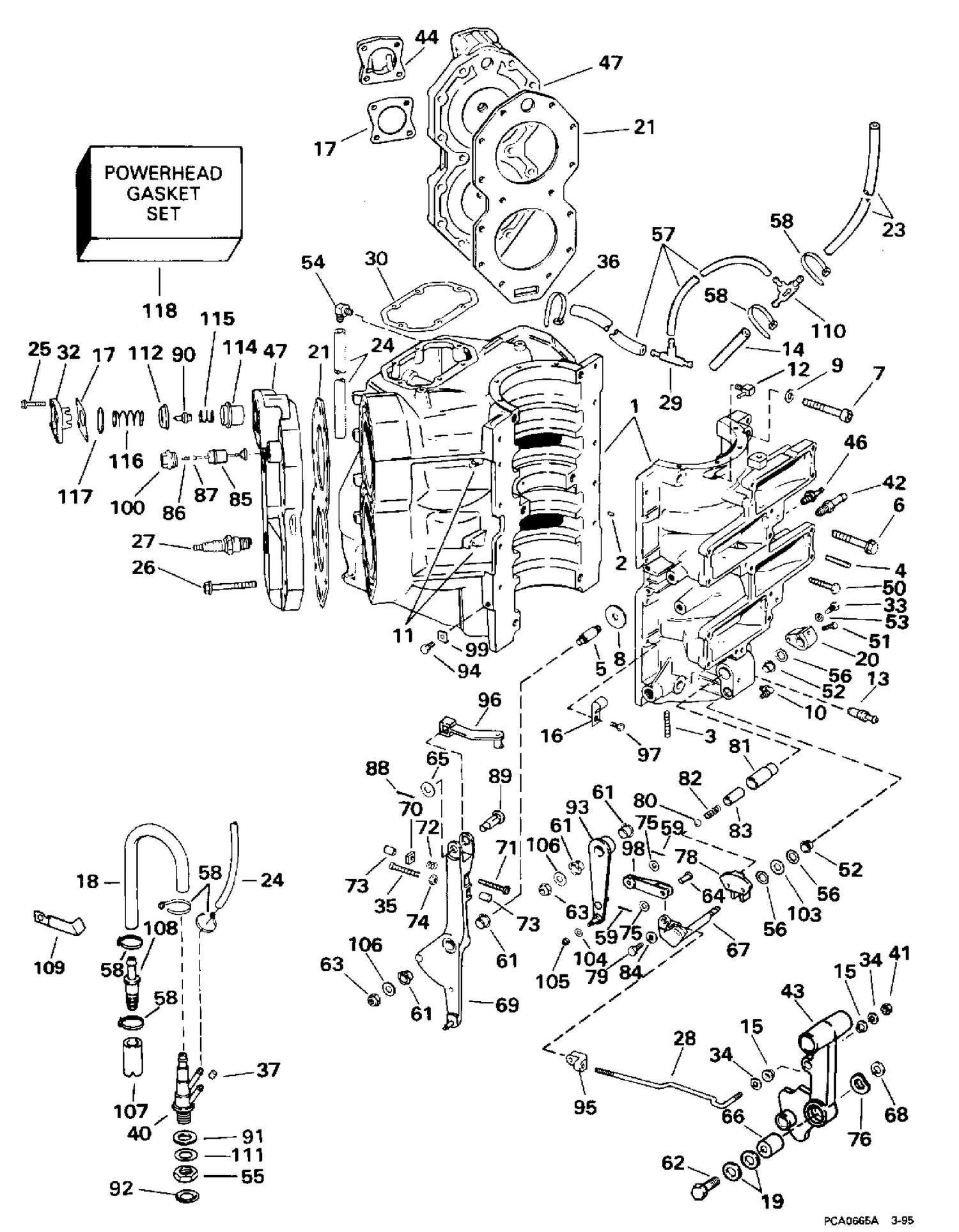

CYLINDER & CRANKCASE ASSY. This part replaces 0437405. |
| 10 |
0908678 |
GREASE FITTING |
| 14 |
HOSE, |
Valve, lower, 23 1/2 in. (588mm) |
| 17 |
0329830 |
GASKET, Cover |
| 18 |
0914012 |
HOSE, Aspirator |
| 20 |
0326644 |
LEVER, Shift rod |
| 21 |
0340115 |
GASKET, Cylinder head |
| 23 |
HOSE, |
Bearing hsg., 15 1/2 in. (393mm) |
| 24 |
0331215 |
HORSE, Elbow to tee |
| 25 |
0306049 |
SCREW |
| 26 |
0322323 |
SCREW |
| 27 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 27 |
0432424 |
SPARK PLUG , QL16V |
| 27 |
0437680 |
SPARK PLUG, Champion QL82YC |
| 27 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 28 |
0334701 |
SHIFT ROD |
| 29 |
0325569 |
T, amorçage |
| 32 |
0343141 |
COVER, Thermostat This part replaces 0339207. |
| 33 |
0327590 |
PIN, Shift lever |
| 35 |
0334220 |
SCREW, CPS bracket |
| 40 |
0914902 |
ASPIRATOR |
| 44 |
0343141 |
COVER, Thermostat This part replaces 0339207. |
| 46 |
0392988 |
CHECK VALVE |
| 47 |
0339310 |
CYLINDER HEAD |
| 50 |
0554306 |
SCREW, Cyl. to crankcase |
| 51 |
0328695 |
CLAMP, Engine cable |
| 52 |
0312708 |
BUSHING |
| 56 |
0202026 |
LOCK WASHER, Stud |
| 57 |
HOSE, |
Drain system |
| 58 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 64 |
0340134 |
PIN, Shift lever |
| 65 |
0330995 |
RONDELLE, levier |
| 67 |
0432646 |
SHIFT LEVER |
| 69 |
0432649 |
THROTTLE LEVER |
| 71 |
0334219 |
SCREW |
| 73 |
0318660 |
BUMPER, Screw, throttle stop |
| 76 |
0306012 |
BOW WASHER |
| 78 |
0333306 |
SHIFT DETENT |
| 79 |
0304027 |
VIS, arbre de commande de sens de marche |
| 80 |
0318626 |
BILLE |
| 81 |
0330896 |
SLEEVE, Detent spring |
| 83 |
0327178 |
GUIDE |
| 84 |
0329241 |
RONDELLE |
| 85 |
0584592 |
SWITCH, Temperature |
| 88 |
0330145 |
COTTER PIN |
| 89 |
0328636 |
PIN, Advance link |
| 90 |
0436195 |
ENSEMBLE THERMOSTAT |
| 91 |
0122220 |
SEAL |
| 92 |
0915209 |
O-RING, Aspirator |
| 93 |
0433481 |
SHIFT ARM |
| 94 |
0328731 |
VIS, câble de verrouillage |
| 95 |
0334705 |
CONNECTOR, Shift lever |
| 96 |
0333586 |
LINK, Lever to cam |
| 98 |
0340133 |
LINK, Shift lever |
| 99 |
0328456 |
CLAMP |
| 103 |
0306012 |
BOW WASHER |
| 104 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 107 |
0913439 |
HOSE, Aspirator |
| 108 |
0986534 |
CHECK VALVE, Aspirator |
| 110 |
0394892 |
CHECK VALVE ASSY. |
| 111 |
0317936 |
WASHER |
| 112 |
0435957 |
DIAPHRAGM |
| 116 |
0342421 |
SPRING |
