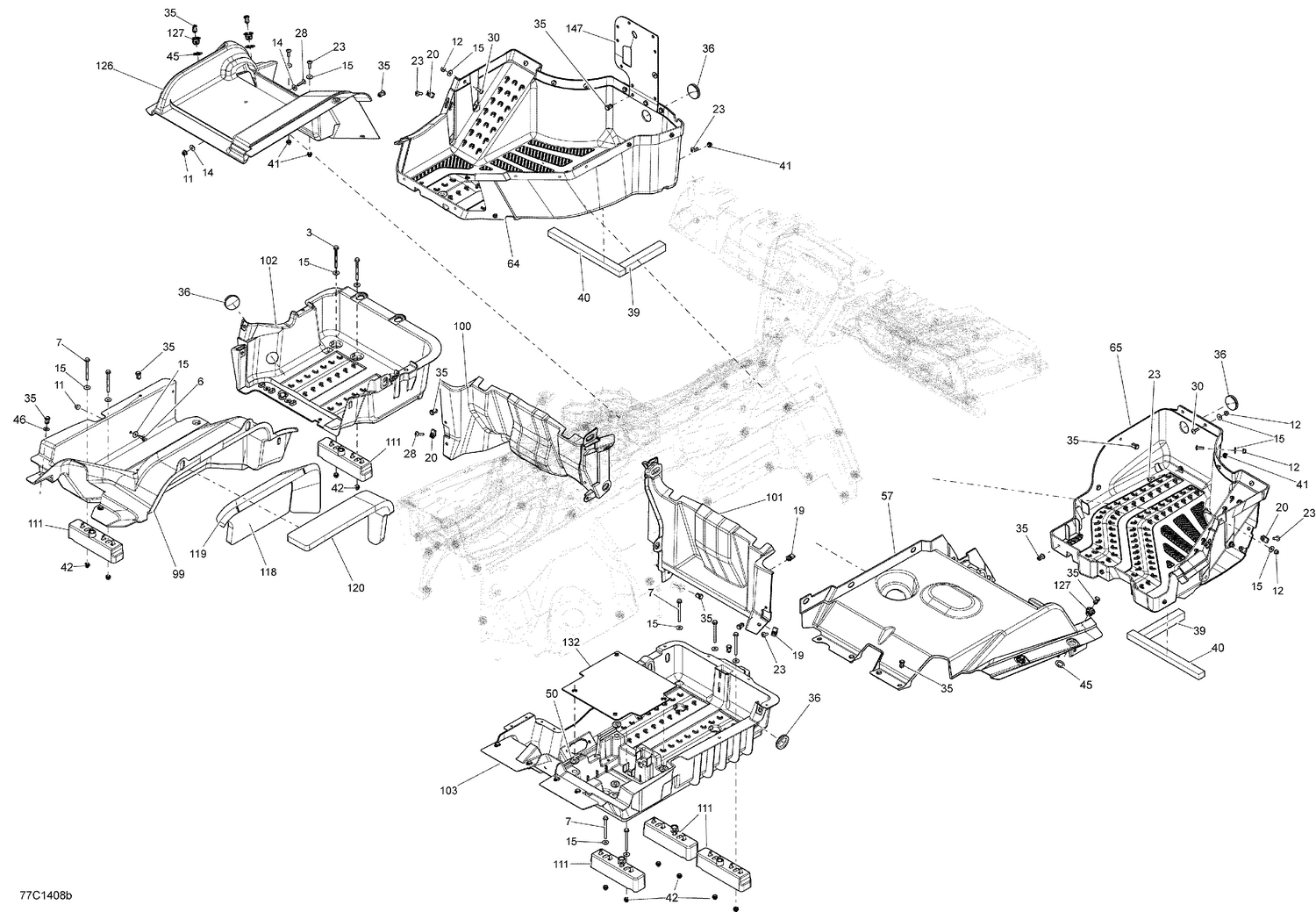

| Ref | Part Number | Description |
|---|
| 3 |
207567044 |
Hex. Flange Screw M6x70, Scotch Grip |
| 6 |
207662084 |
Hex. Flange Screw M6 X 20 |
| 7 |
207667056 |
Hex. Flange Screw M6 X 70 |
| 11 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 12 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 14 |
234062410 |
Flat Washer 6 mm |
| 15 |
234062670 |
Stainless Steel Flat Washer |
| 19 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 20 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 23 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 28 |
250000284 |
Torx Screw M6 x 25 |
| 30 |
250000770 |
Hex. Socket Screw M6 X 20 This part replaces 250000335. |
| 35 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
| 36 |
293250242 |
Rubber Cover |
| 39 |
293250318 |
STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 40 |
293250319 |
STRIP_WEATHER SELF ADHESIVE - Call your local BRP dealership |
| 41 |
250100242 |
Threaded Insert M6 X 1.0 This part replaces 293450274. |
| 45 |
503189273 |
Washer |
| 46 |
506151252 |
Washer |
| 50 |
705003264 |
Grommet |
| 57 |
707900006 |
RH Under Seat Plate |
| 64 |
707900022 |
LH Lower Floor |
| 65 |
707900023 |
RH Lower Floor |
| 99 |
707900081 |
LH REAR BOTTOM PAN - Call your local BRP dealership |
| 100 |
707900082 |
LH Rear Upper Floor Cover |
| 101 |
707900083 |
Seat Cover |
| 102 |
707900084 |
LH MID FLOOR - Call your local BRP dealership |
| 103 |
707900670 |
RH Lower Rear Floor This part replaces 707900085. |
| 111 |
707900099 |
Support Plate |
| 118 |
707900116 |
INSULATION_ACOUSTIC - Call your local BRP dealership |
| 119 |
707900117 |
INSULATION_ACOUSTIC - Call your local BRP dealership |
| 120 |
707900118 |
INSULATION_ACOUSTIC - Call your local BRP dealership |
| 126 |
707900130 |
Under Seat Cover |
| 127 |
707900133 |
Insert |
| 132 |
707900163 |
Battery Cover |
