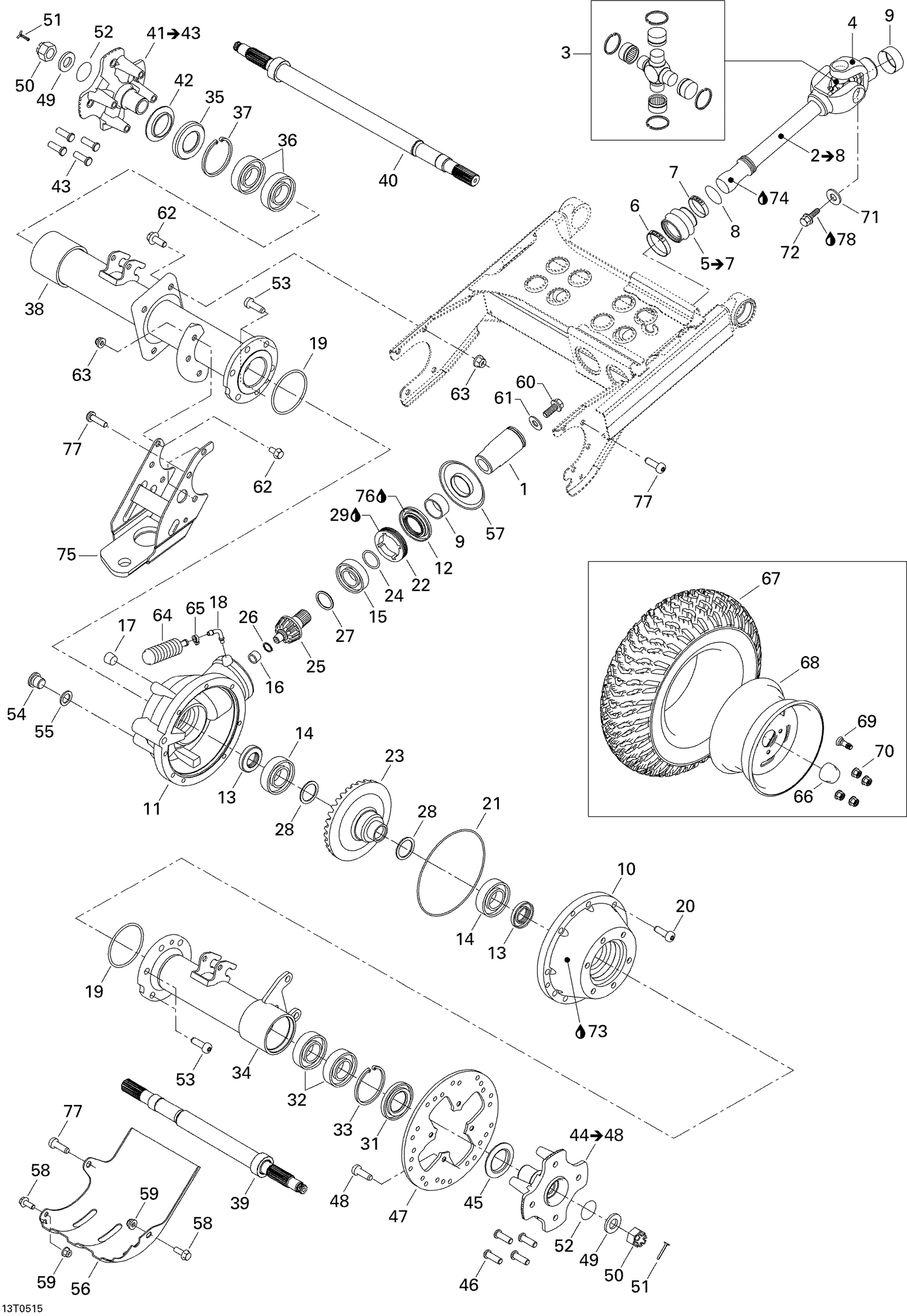

| Ref | Part Number | Description |
|---|
| 1 |
703500678 |
Front Bushing Shaft Kit This part replaces 705400149. |
| 3 |
715900326 |
Universal Joint This part replaces 705500304. |
| 4 |
715900101 |
Fixe Yoke This part replaces 705500371. |
| 6 |
293650138 |
Oetiker Gear Clamp 44.0MM |
| 7 |
705400148 |
Collar |
| 8 |
705500315 |
SEALING RING - Call your local BRP dealership |
| 9 |
705400036 |
Wear Ring |
| 10 |
705500175 |
Rear Cover |
| 11 |
705500515 |
PINION REAR COVER - Call your local BRP dealership |
| 12 |
705500248 |
Oil Seal |
| 13 |
705401618 |
Gasket This part replaces 705500255. |
| 14 |
705401606 |
Ball Bearing This part replaces 705500259. |
| 15 |
705500260 |
Ball Bearing |
| 16 |
705500261 |
Needle Bearing |
| 17 |
705500894 |
Drain Plug This part replaces 705500245. |
| 18 |
705500893 |
VENT VALVE - Call your local BRP dealership This part replaces 705500262. |
| 19 |
705500263 |
O-RING - Call your local BRP dealership |
| 20 |
705401601 |
Screw This part replaces 705500264. |
| 21 |
705500265 |
Seal |
| 22 |
705401603 |
Nut This part replaces 705500266. |
| 23 |
705500416 |
GEAR, 36 TEETH - Call your local BRP dealership |
| 24 |
705500267 |
O-Ring |
| 25 |
705500268 |
GEAR, 10 TEETH - Call your local BRP dealership |
| 26 |
705500269 |
RETAINING RING - Call your local BRP dealership |
| 27 |
705502061 |
Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 28 |
705401604 |
Shim This part replaces 703500050. |
| 29 |
293800060 |
Loctite 243, 10 ml |
| 30 |
Not |
Available As Spare Part - n/a |
| 31 |
705500099 |
OIL SEAL - Call your local BRP dealership |
| 32 |
705500251 |
BALL BEARING - Call your local BRP dealership |
| 33 |
705500249 |
RETAINING RING - Call your local BRP dealership |
| 34 |
705500250 |
RH AXLE TUBE - Call your local BRP dealership |
| 35 |
705500099 |
OIL SEAL - Call your local BRP dealership |
| 36 |
705500251 |
BALL BEARING - Call your local BRP dealership |
| 37 |
705500249 |
RETAINING RING - Call your local BRP dealership |
| 38 |
705500182 |
LH AXLE TUBE - Call your local BRP dealership |
| 39 |
705500183 |
RH AXLE - Call your local BRP dealership |
| 40 |
705500184 |
LH AXLE - Call your local BRP dealership |
| 42 |
705500100 |
WEAR RING - Call your local BRP dealership |
| 43 |
250300055 |
Wheel Stud M10 X 1.25 This part replaces 250300020. |
| 45 |
705500100 |
WEAR RING - Call your local BRP dealership |
| 46 |
250300055 |
Wheel Stud M10 X 1.25 This part replaces 250300020. |
| 47 |
705600343 |
Brake Disc |
| 48 |
235381646 |
Torx Screw M8 X 16, Scotch Grip |
| 49 |
250200019 |
WASHER - Call your local BRP dealership |
| 50 |
232291413 |
Hex. Flange Castellated Nut M18 |
| 51 |
250400036 |
Cotter Pin This part replaces 250400016. |
| 52 |
705500271 |
O-RING - Call your local BRP dealership |
| 53 |
250000085 |
Torx Screw M10 X 30 |
| 54 |
705500504 |
Fill Level Plug |
| 55 |
705500506 |
Copper Washer |
| 56 |
705500565 |
Differential Protector, Black |
| 57 |
705500214 |
JOINT PROTECTOR - Call your local BRP dealership |
| 58 |
207681644 |
Hex. Flange Screw M8 X 16 |
| 59 |
233181414 |
Hex. Flange Nut M8 |
| 60 |
250000060 |
Flange Screw M10 X 16, Scotch Grip |
| 61 |
250200014 |
Flat Washer M10 |
| 62 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 63 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 64 |
705400552 |
Rubber Bellow This part replaces 705400066. |
| 65 |
293750001 |
Tie Wrap 94 mm |
| 66 |
705400012 |
WHEEL CAP - Call your local BRP dealership |
| 68 |
705500555 |
Rear Rim |
| 69 |
705400193 |
Rim Valve With Cap |
| 70 |
250100042 |
Steel Wheel Nut |
| 71 |
211200041 |
Washer |
| 72 |
207681686 |
HEX. FLANGED SCREW M8 X 16 - Call your local BRP dealership |
| 73 |
779221 |
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011. |
| 74 |
293550010 |
Synthetic Grease, 400 G |
| 75 |
705500244 |
Trailer Hook, Black |
| 76 |
293550010 |
Synthetic Grease, 400 G |
| 77 |
250000190 |
TORX SCREW M10 X 33 - Call your local BRP dealership |
