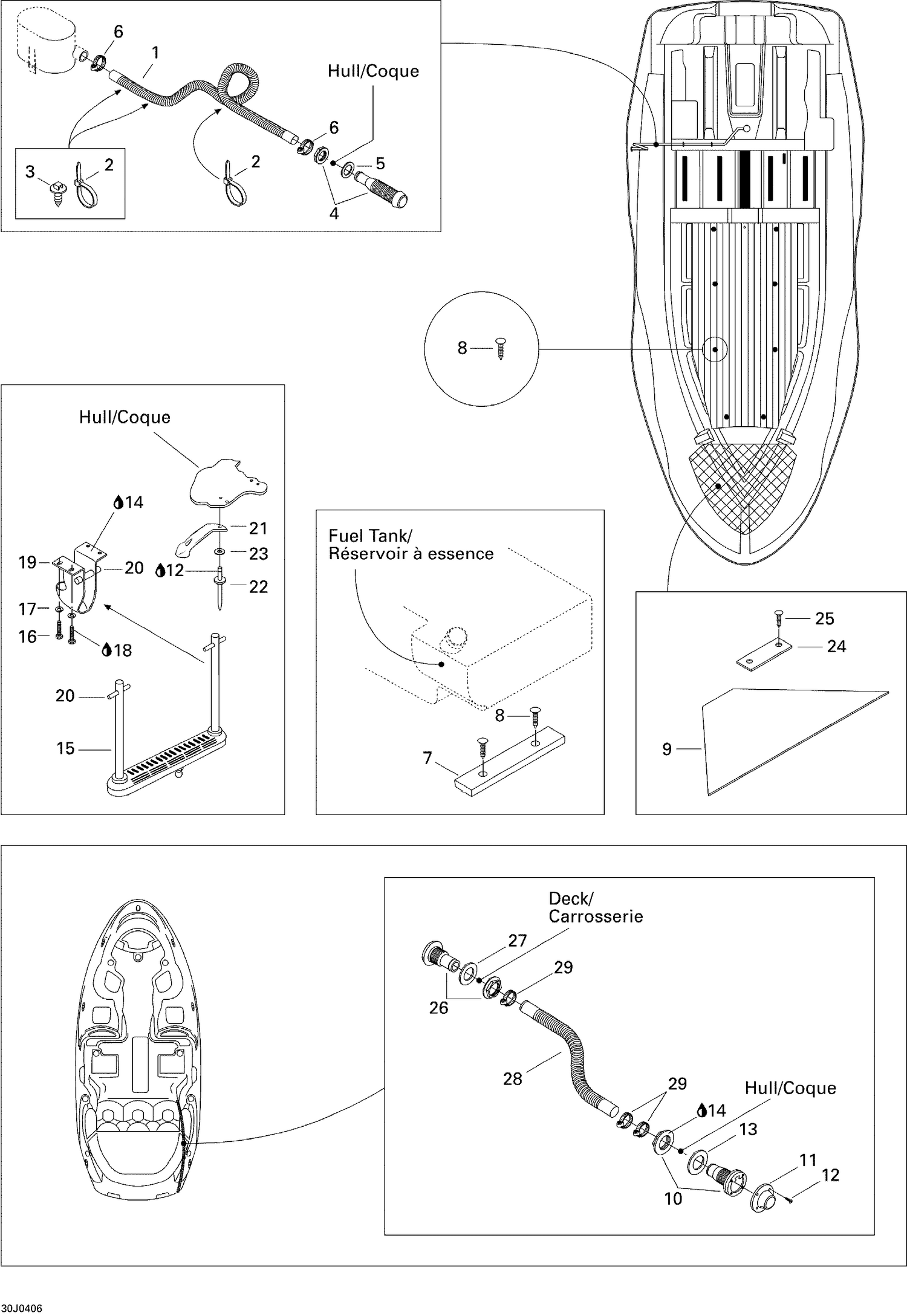

| Ref | Part Number | Description |
|---|
| 1 |
291001206 |
BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership |
| 2 |
414115200 |
Tie-Rap 180 mm |
| 3 |
293730040 |
Mount Dart This part replaces 293730018. |
| 4 |
293710162 |
Fitting This part replaces 293710015. |
| 5 |
293250006 |
GASKET - Call your local BRP dealership |
| 6 |
293650016 |
Tridon Clamp |
| 7 |
204060701 |
Rubber Pad |
| 8 |
293730006 |
Black, Dart |
| 9 |
204060707 |
Anchor Storage, Black |
| 10 |
204060071 |
THRU HULL FITTING - Call your local BRP dealership |
| 11 |
204060188 |
SCUPPER VALVE - Call your local BRP dealership |
| 12 |
211000180 |
PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership |
| 13 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
| 14 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 15 |
204060187 |
LADDER - Call your local BRP dealership |
| 16 |
207163560 |
Hex. Screw M6 X 35 |
| 17 |
234161601 |
Lock Washer Helical M6 |
| 18 |
293800060 |
Loctite 243, 10 ml |
| 19 |
204060141 |
U-BRACKET - Call your local BRP dealership |
| 20 |
211300021 |
ROLL PIN M8 X 55 - Call your local BRP dealership |
| 21 |
570027100 |
Hood Latch |
| 22 |
293150013 |
Pop Rivet 3/16" |
| 23 |
234052600 |
Flat Washer 5 mm, Stainless |
| 24 |
204050234 |
Trim Anchor Storage |
| 25 |
293730006 |
Black, Dart |
| 26 |
293710060 |
FITTING - Call your local BRP dealership |
| 27 |
292800106 |
GASKET - Call your local BRP dealership This part replaces 293250039. |
| 28 |
204070560 |
HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership |
