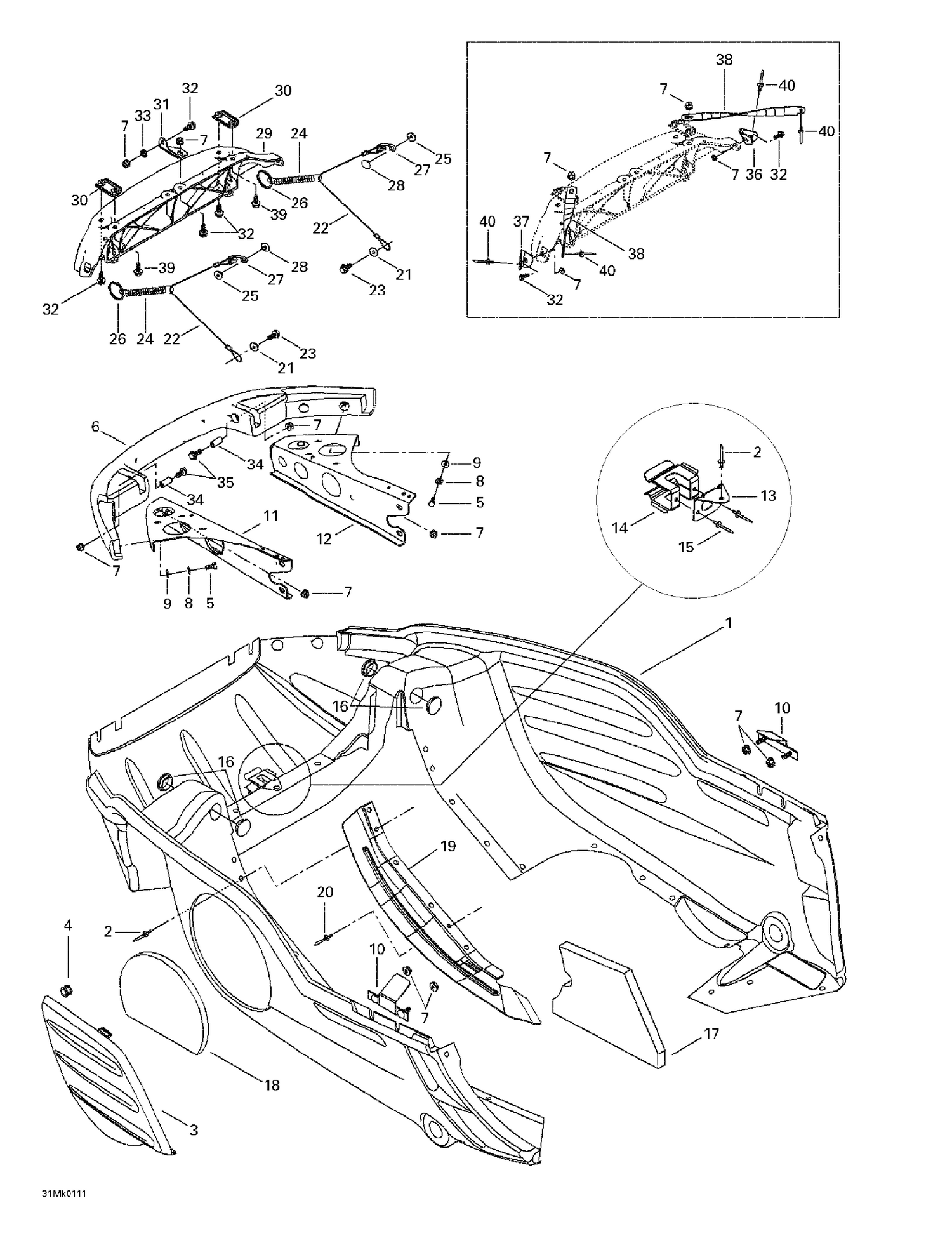

| Ref | Part Number | Description |
|---|
| 1 |
502006588 |
Bottom Pan (Yellow) B-190 |
| 2 |
390906800 |
Pop Rivet 3/16" This part replaces 390910200. |
| 3 |
502006511 |
Bottom Pan Door |
| 4 |
414036300 |
Grommet |
| 5 |
207161444 |
Hex. Screw M6 X 14 |
| 6 |
502006535 |
Bumper |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 8 |
234161471 |
Lock Washer M6, Black |
| 9 |
224061121 |
Flat Washer |
| 10 |
502006500 |
Bracket |
| 11 |
502006597 |
LH SUPPORT - Call your local BRP dealership |
| 12 |
502006602 |
RH Support |
| 13 |
502006599 |
Belt Support |
| 14 |
517281905 |
Bracket |
| 15 |
390402400 |
Pop Rivet 3/16" |
| 16 |
414916600 |
Black, Nylon Cap |
| 17 |
502006558 |
Bottom Foam |
| 18 |
502006559 |
Bottom Pan Door Foam |
| 19 |
502006593 |
Bottom Pan Protector |
| 20 |
390402200 |
Pop Rivet 3/16" |
| 21 |
391301600 |
Washer |
| 22 |
415093900 |
RETAINER CABLE - Call your local BRP dealership |
| 23 |
Not |
Available As Spare Part - Hex. Tapping Screw |
| 24 |
415043300 |
Spring |
| 25 |
517124300 |
Washer |
| 26 |
415058300 |
RING - Call your local BRP dealership |
| 27 |
517262800 |
Bracket |
| 28 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 29 |
517302631 |
Hinge This part replaces 517302004. |
| 30 |
517302176 |
HINGE SIDE PLATE - Call your local BRP dealership |
| 31 |
517302045 |
Hinge Center Plate |
| 32 |
207661654 |
Hex. Flange Screw M6 X 16 This part replaces 207661684. |
| 33 |
250200041 |
Lock Washer Serrated M6 This part replaces 250200000. |
| 34 |
517302179 |
BUSHING - Call your local BRP dealership |
| 35 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 36 |
517302254 |
RH Corner Support |
| 37 |
517302255 |
LH Corner Support |
| 38 |
517302256 |
Hood Clamp |
| 39 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 390906700 |
Deep |
Black, Pop Rivet 3/16 390906700 |
| 390906800 |
Pop |
Rivet 3/16" This part replaces 293150075. 390906800 |
| 390906800 |
Rivet |
Pop 3/16" This part replaces 293150075. 390906800 |
| 502006506 |
BOTTOM |
PAN DOOR, BLACK, B-160 - Call your local BRP dealership 502006506 |
| 502006506 |
Porte |
De Coque, Noir, B-160 - Appelez votre concessionnaire BRP local 502006506 |
| 502006589 |
Bottom |
Pan (Black) B-160 502006589 |
| 502006589 |
Deep |
Black, Bottom Pan 502006589 |
| 502006627 |
Bottom |
Pan (Red) B-215 502006627 |
| 502006628 |
Bottom |
Pan Door (Red) B-215 502006628 |
| 502006719 |
Bumper, |
Black This part replaces 502006536. 502006719 |
| 502006719 |
Pare-Choc, |
Noir This part replaces 502006536. 502006719 |
