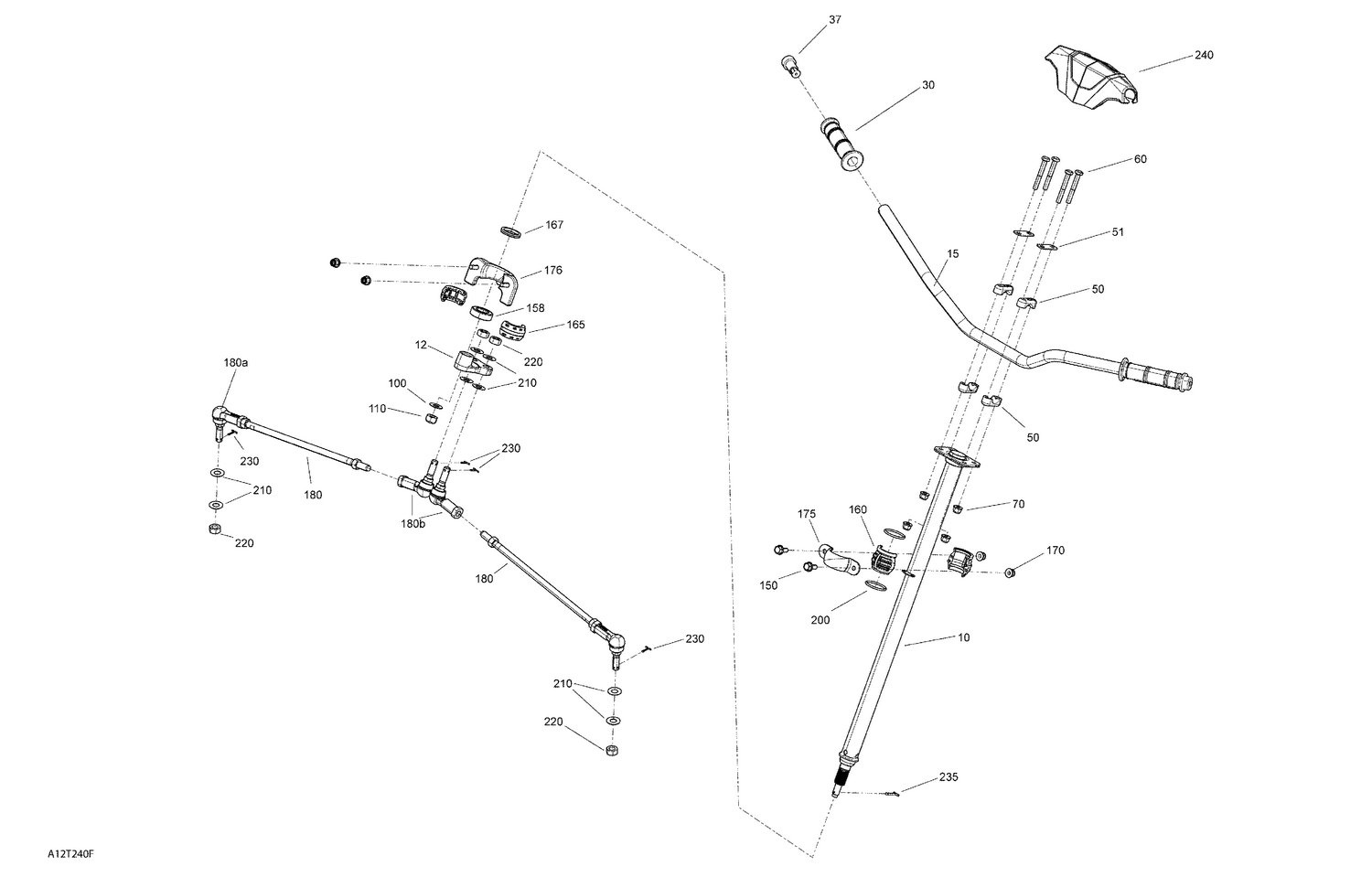

03- Mechanic - Steering - STD
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709401545 | Black, Upper Main Tube |
| 12 | 709401542 | Pitman Arm |
| 15 | 709401240 | Black, Handlebar |
| 30 | 709400493 | Handle Grip |
| 37 | 709400449 | End Piece |
| 50 | 709401799 | Steering Support |
| 51 | 709400509 | Stiffner |
| 60 | 207086046 | Hex. Screw M8 X 60 |
| 70 | 233281416 | Hex. Elastic Flange Nut M8 |
| 100 | 706200281 | Hardened Washer This part replaces 250200086. |
| 110 | 250000047 | Hex. Flange Elastic Nut M12 |
| 150 | 207682044 | Hex. Flange Screw M8 X 20 |
| 155 | 207682534 | Hex. Flange Screw M8 X 25 |
| 158 | 503190396 | Ball Bearing |
| 160 | 709400783 | Spherical Half Bushing |
| 165 | 709401370 | Spherical Half Bushing |
| 167 | 293250177 | Seal |
| 170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 175 | 709400827 | Upper Column Attachment |
| 176 | 709401428 | Column Attachment |
| 180a | 709402303 | LH Ball Joint |
| 180b | 709402302 | RH Ball Joint |
| 200 | 293300068 | O-Ring |
| 210 | 706200281 | Hardened Washer This part replaces 250200086. |
| 220 | 250100099 | Nut M12 |
| 230 | 211400013 | Cotter Pin |
| 235 | 250400034 | Cotter Pin |
