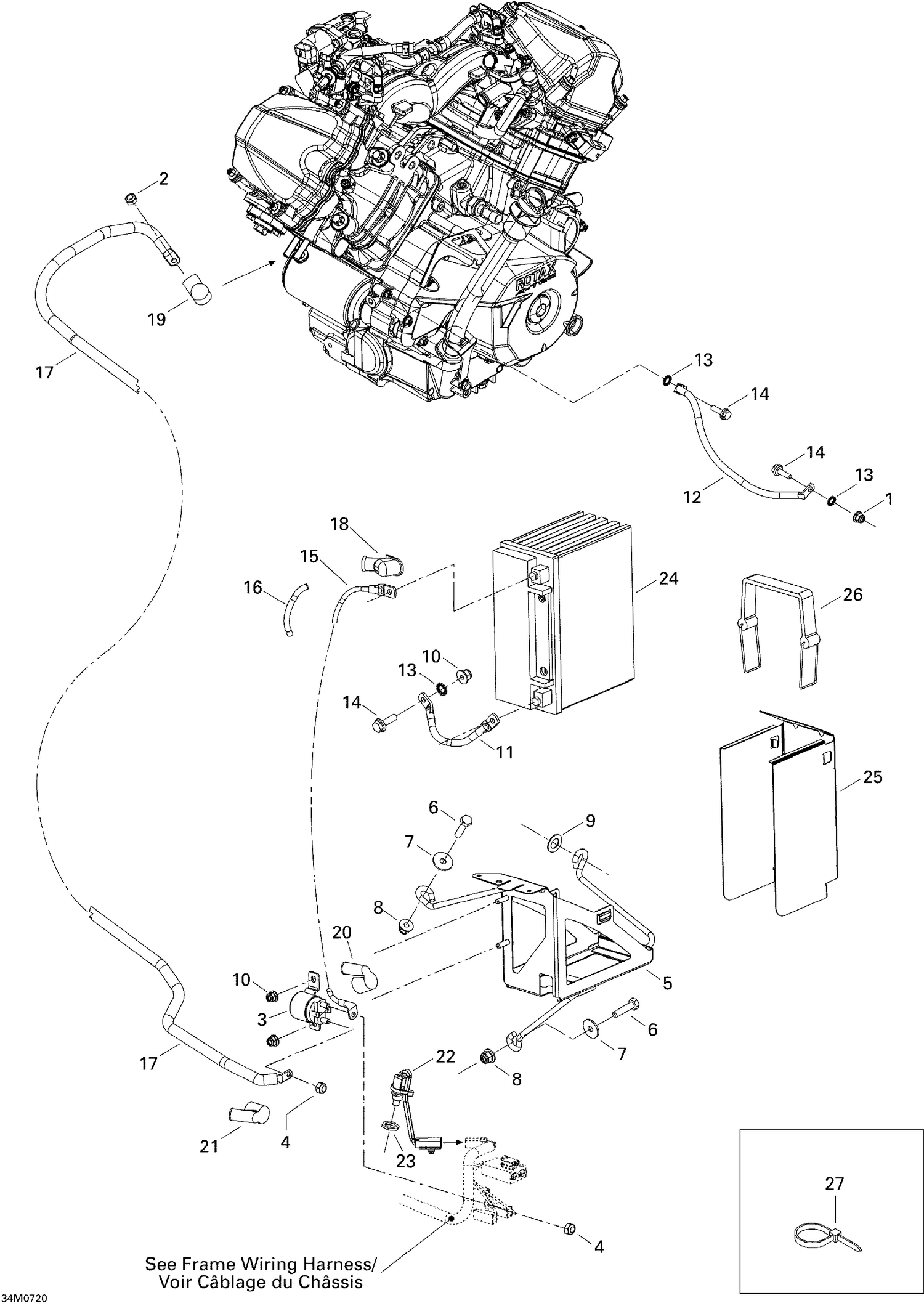

10- Battery And Starter
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 2 | 232561414 | Elastic Stop Nut M6 |
| 3 | 515176011 | Starter Relay |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 515176401 | BATTERY SUPPORT - Call your local BRP dealership |
| 6 | 207162544 | Hex. Screw M6 X 25 |
| 7 | 224061201 | Flat Washer |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 9 | 503175800 | Washer |
| 10 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 11 | 515175749 | Ground Wire |
| 12 | 515176407 | Ground Wire |
| 13 | 234461608 | External Serrated Lock Washer 6 mm |
| 14 | 207662044 | Hex. Flange Screw M6 X 20 |
| 15 | 515175904 | Battery Wire |
| 16 | 219704399 | Was 409901700 Tubing (9 mm) |
| 17 | 515176392 | Battery Wire |
| 18 | 710000495 | Protector Cap |
| 19 | 278000020 | PROTECTION CAP - Call your local BRP dealership |
| 20 | 570064200 | PROTECTION CAP - Call your local BRP dealership |
| 21 | 570064200 | PROTECTION CAP - Call your local BRP dealership |
| 22 | 515176472 | Switch Ass'y |
| 23 | 250100012 | BRASS NUT - Call your local BRP dealership |
| 24 | 410922962 | Battery YUASA YTX24-HL |
| 25 | 515175616 | DEFLECTOR - Call your local BRP dealership |
| 26 | 605356180 | Battery Strap This part replaces 515175955. |
| 27 | 293750002 | Tie Wrap 142 mm |
| 27 | 293750008 | Tie Wrap 368 mm |
| 27 | 414115200 | Tie-Rap 180 mm |
