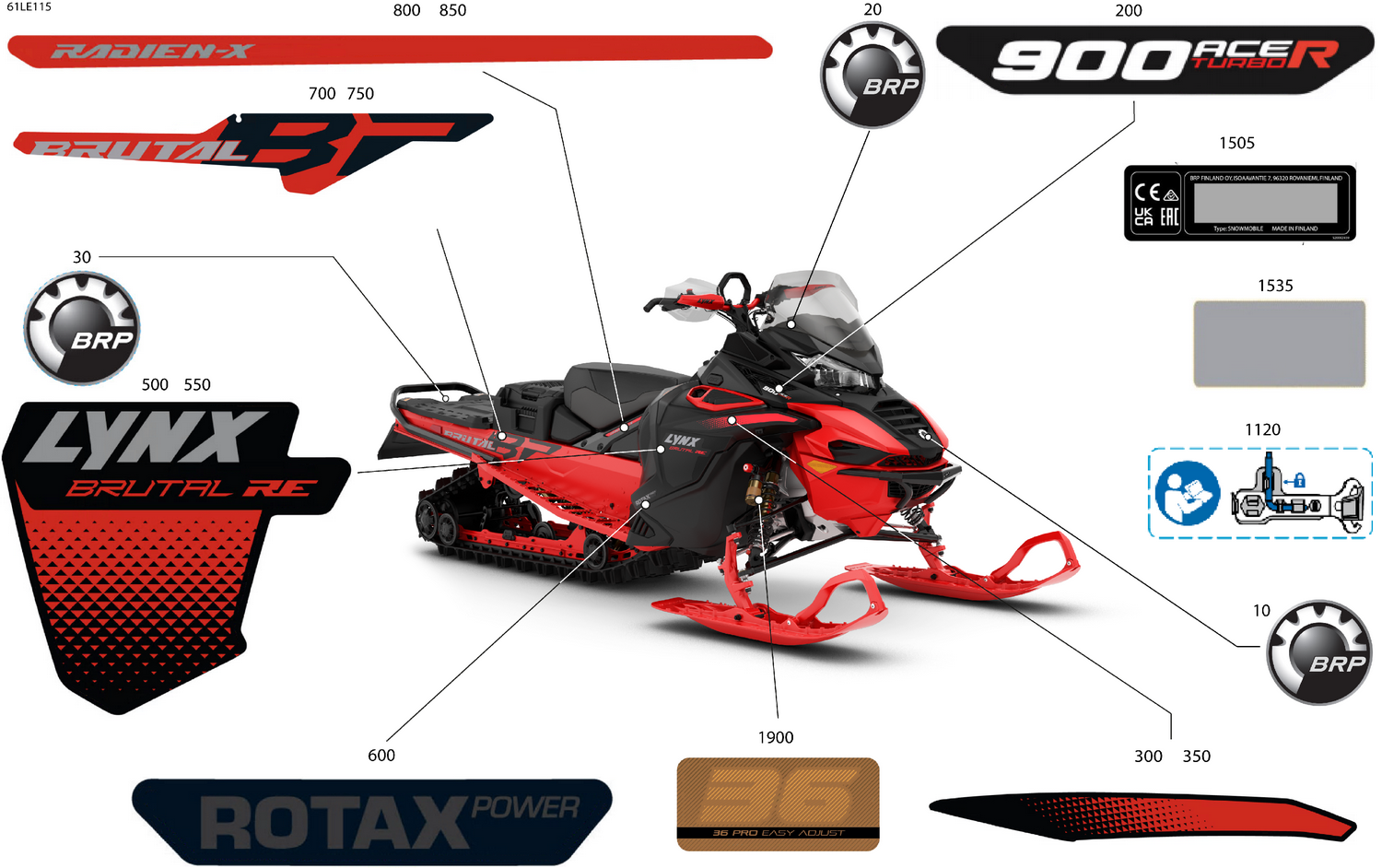

07- Body - Decals
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 704909040 | Emblem BRP Logo 48 MM UV |
| 20 | 516010651 | BRP Logo 20 MM x 2 MM |
| 30 | 704909040 | Emblem BRP Logo 48 MM UV |
| 200 | 516011005 | Upper Side Panel Decal |
| 300 | 516012603 | LH Middle Panel Decal |
| 350 | 516012604 | RH Middle Panel Decal |
| 500 | 516012549 | LH Panel Top Panel Decal |
| 550 | 516012550 | RH Panel Top Panel Decal |
| 600 | 516012258 | Decal Rotax Power |
| 700 | 516012241 | LH Middle Tunnel Decal |
| 750 | 516012242 | RH Middle Tunnel Decal |
| 800 | 516012243 | LH Cross Member Decal |
| 850 | 516012244 | RH Cross Member Decal |
| 1120 | 516011629 | Tool Instruction Label |
| 1505 | 520002459 | Conformity Decal CE UK CA EAC RCM |
| 1535 | 516009954 | Protective Decal |
