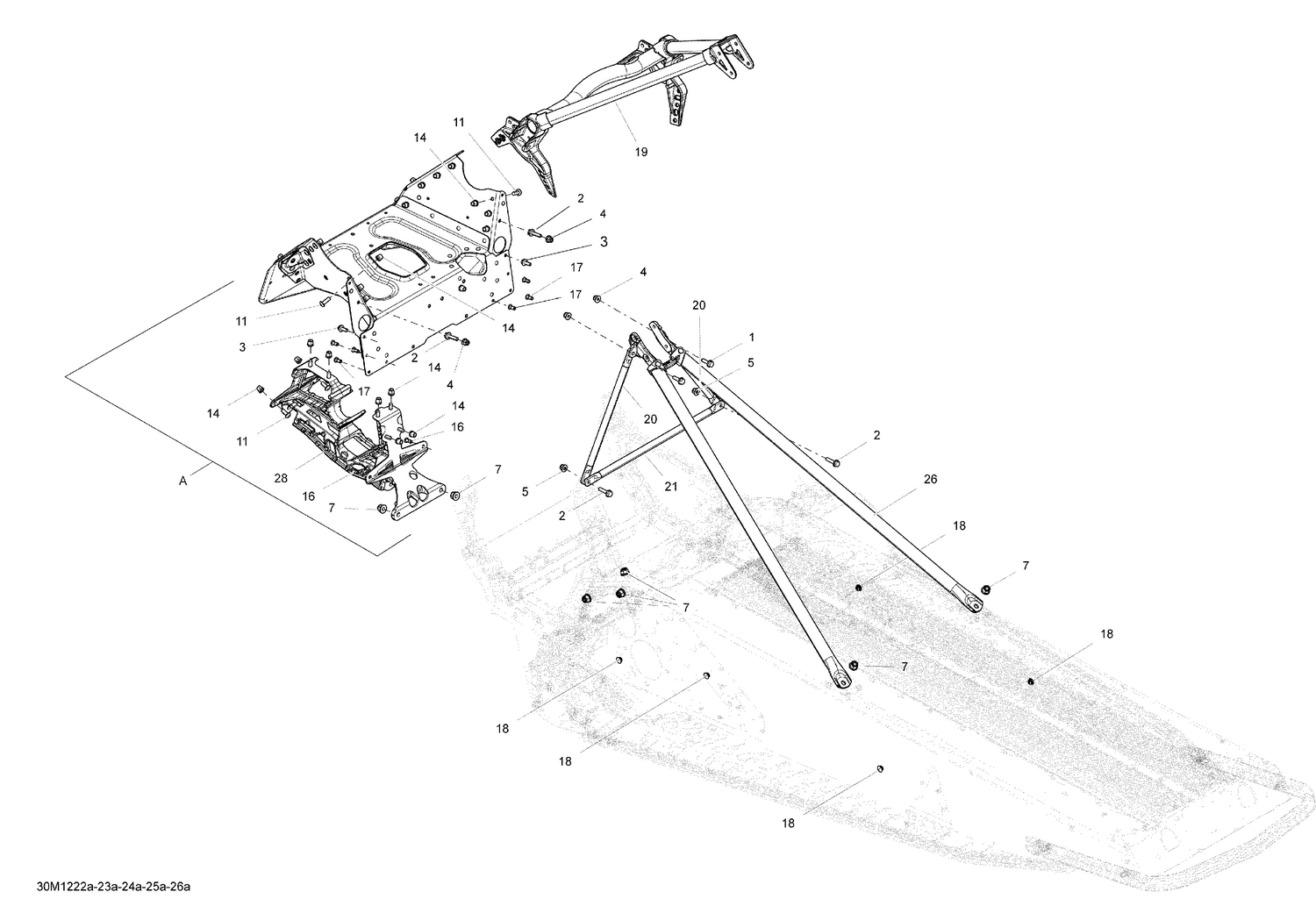

09- Frame Common Parts
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 |
| 3 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 5 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 7 | 233281414 | Hex. Flange Elastic Nut M8 |
| 11 | 207662044 | Hex. Flange Screw M6 X 20 |
| 14 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 16 | 293150182 | Monobolt Rivet 6.4 |
| 17 | 293150191 | Monobolt Rivet, 4.8 mm |
| 18 | 293730041 | Full Moon Dart 8 mm |
| 19 | 518326975 | Front Member |
| 20 | 518325114 | Upper Lateral Column Support |
| 21 | 518325115 | Center Column Support |
| 26 | 518326559 | Rear Member |
| 28 | 518327487 | Front Suspension Support This part replaces 518325925. |
