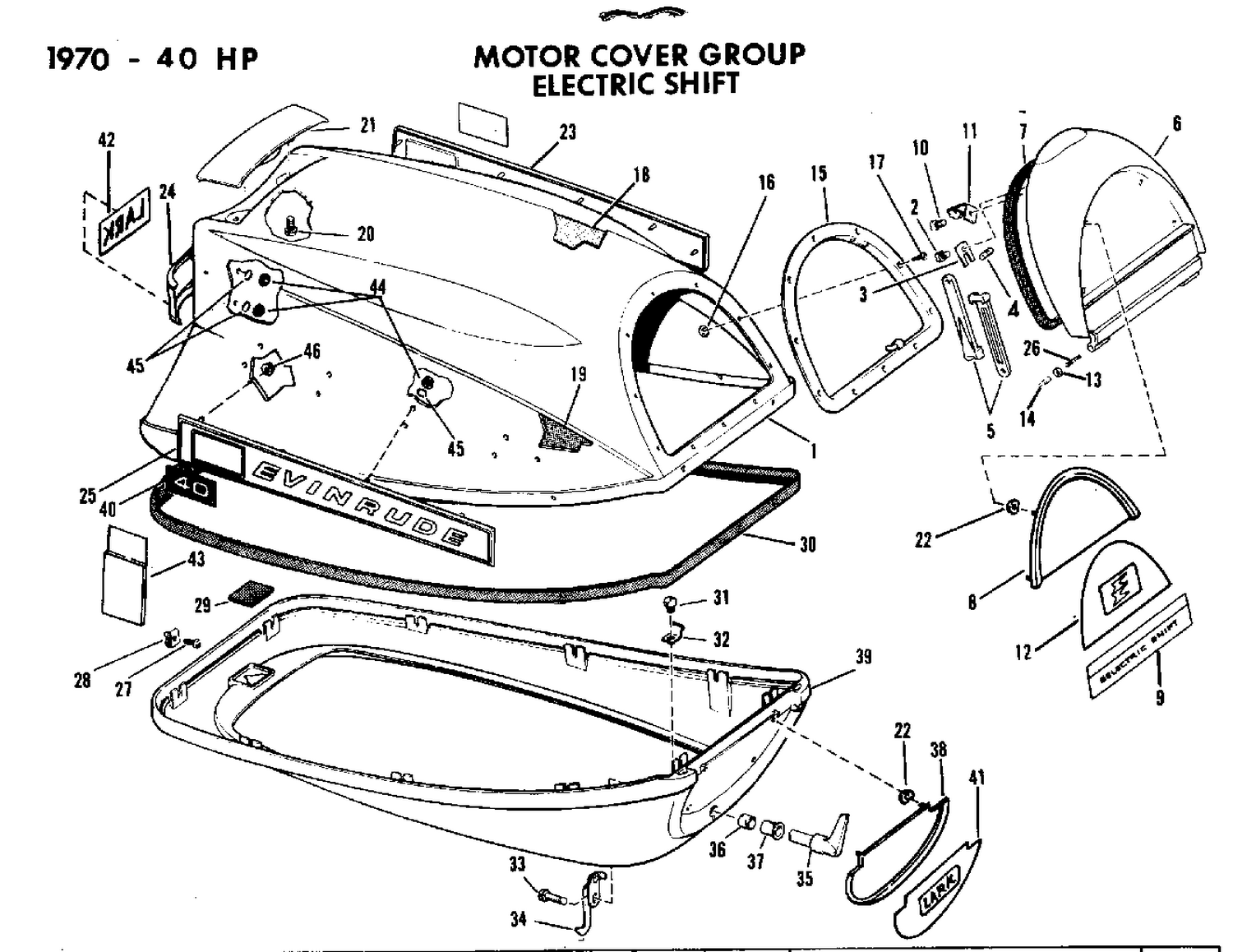

| Ref | Part Number | Description |
|---|
| 1 |
0279189 |
MOTOR COVER ASSEMBLY |
| 2 |
0307920 |
SCREW |
| 3 |
0307690 |
RETAINER, Pivot pin |
| 4 |
0204878 |
PIN, Slide pivot |
| 5 |
0204916 |
SLIDE, Door |
| 6 |
0279304 |
FRONT DOOR ASSEMBLY |
| 8 |
0206492 |
APPLIQUE, Front door |
| 9 |
0206493 |
PLATE, Front door |
| 12 |
0206503 |
PLATE,Front door |
| 13 |
0204293 |
WASHER, Hinge pin |
| 14 |
0204292 |
HINGE PIN, Front door |
| 15 |
0278412 |
DOOR FRAME ASSEMBLY |
| 18 |
0204918 |
SOUND BLANKET , Top |
| 19 |
0204919 |
SOUND BLANKET, Side |
| 20 |
0204936 |
SCREW, Tilt handle |
| 21 |
0204800 |
HANDLE, Tilting |
| 23 |
0206498 |
APPLIQUE, Port |
| 24 |
0206500 |
APPLIQUE, Rear |
| 25 |
0206499 |
APPLIQUE, Starboard |
| 26 |
0204294 |
SPRING, Hinge pin |
| 27 |
0204904 |
SCREW, Cover fastener |
| 28 |
0204903 |
FASTENER COVER SCREWS |
| 29 |
0307924 |
PAD, Lower cover |
| 30 |
0206075 |
SEAL, Cover halves |
| 31 |
0307907 |
SCREW |
| 32 |
0307908 |
SPRING |
| 33 |
0303311 |
SCR,Clamp,eng cable |
| 34 |
0378322 |
LINK & HOOK |
| 35 |
0204877 |
HANDLE, Front latch |
| 36 |
0553769 |
BUSHING |
| 37 |
0204888 |
SLEEVE BEARING, Cover latch |
| 38 |
0206496 |
APPLIQUE, Cover, lower half |
| 39 |
0205622 |
COVER, Lower half |
| 40 |
0206501 |
PLATE, Applique |
| 41 |
0206497 |
PLATE, Applique, lower cover |
| 42 |
0206502 |
PLATE, Applique, rear |
| 43 |
0378437 |
RING SET, Piston, .020 o.s. This part replaces 0304595. |
| 45 |
0314303 |
O RING |
| 46 |
0306235 |
NUT |
| 0279307 |
0279307 |
DECAL SET |
