| Ref | Part Number | Description |
|---|
| BP1 |
278001392 |
Open Barrel Terminal |
| CI |
278002858 |
Female Housing 20 Circuits |
| CI |
278002860 |
Sealing Cap |
| CI |
515178018 |
Female Terminal |
| CI |
515178349 |
Female Terminal 22 AWG |
| D2 |
409012700 |
Diode |
| DC1 |
409010300 |
Female Terminal |
| DC2 |
409010300 |
Female Terminal |
| DC3 |
515175231 |
Female Terminal |
| DC3 |
515175658 |
Female Housing, 2 Circuits |
| DLC |
710002705 |
Lock |
| DLC |
710002706 |
Female Housing 6 Circuits |
| DLC |
710005437 |
Plug |
| DLC |
710005438 |
Female Terminal |
| DLC |
710005439 |
Female Terminal |
| FP |
409209700 |
Female Housing, 4 Circuits |
| FP |
515176621 |
Wire Seal |
| FP |
710001340 |
Female Terminal |
| FRR1 |
515175658 |
Female Housing, 2 Circuits |
| FRR1 |
710003896 |
Female Terminal |
| FT |
278000217 |
Female Housing, 2 Circuits |
| FT |
278000218 |
Wire Seal |
| FT |
409004300 |
Male Terminal |
| FT |
409210100 |
Clip Bracket Connector (edge) |
| HIC1 |
710001222 |
Lock |
| HIC1 |
710001226 |
Housing |
| HIC1 |
710001229 |
Terminal |
| HIC1 |
710001233 |
Seal |
| HIC2 |
710001222 |
Lock |
| HIC2 |
710001228 |
Terminal |
| HIC2 |
710001229 |
Terminal |
| HIC2 |
710001233 |
Seal |
| HIC2 |
710001332 |
Seal Wire |
| HIC2 |
710001928 |
Housing |
| KEY |
409013700 |
Plug |
| KEY |
409209700 |
Female Housing, 4 Circuits |
| KEY |
515176621 |
Wire Seal |
| KEY |
710001340 |
Female Terminal |
| MG1 |
409011300 |
Male Terminal |
| MG1 |
710000080 |
Cap |
| MG1 |
710000402 |
Wire Seal |
| MG1 |
710000835 |
Male Terminal Housing, 6 Circuits |
| MG2 |
409012100 |
Female Terminal |
| MG2 |
409012300 |
Seal |
| MG2 |
710000081 |
Female Housing, 6 Circuits |
| MG2 |
710000402 |
Wire Seal |
| PF1 |
278000999 |
Wire Seal |
| PF1 |
415128501 |
Seal |
| PF1 |
415129856 |
Fuse Box Base Ass´y |
| PF1 |
515177009 |
Female Terminal |
| PF1 |
515177012 |
Female Terminal |
| PF1 |
710000840 |
Cap |
| PF1 |
710007681 |
Female Terminal |
| PF4 |
278001325 |
Fuse Holder |
| PF4 |
710000357 |
Female Terminal |
| PF4 |
710001613 |
Fuse |
| REG |
710000879 |
Female Housing, 3 Circuits |
| REG |
710000882 |
Cap |
| REG |
710001932 |
Seal |
| REG |
710001934 |
Terminal |
| RSS |
409012100 |
Female Terminal |
| RSS |
710000080 |
Cap |
| RSS |
710000081 |
Female Housing, 6 Circuits |
| RSS |
710000402 |
Wire Seal |
| SS1 |
409010300 |
Female Terminal |
| SS2 |
409010300 |
Female Terminal |
| TL |
515175495 |
Female Housing, 3 Circuits |

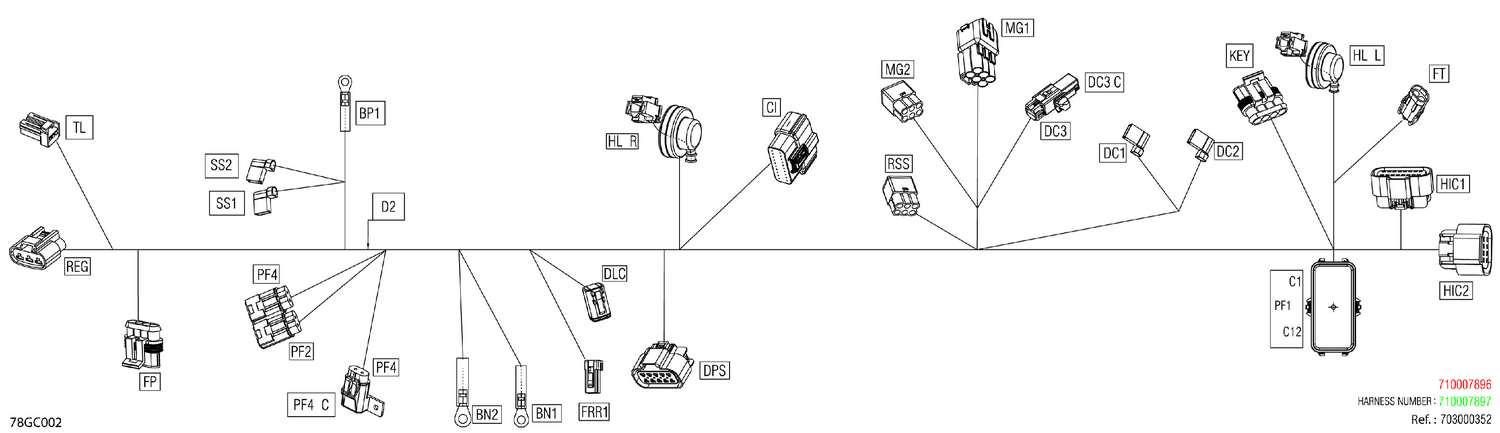

| 200 |
710007897 |
Main Wiring Harness |
