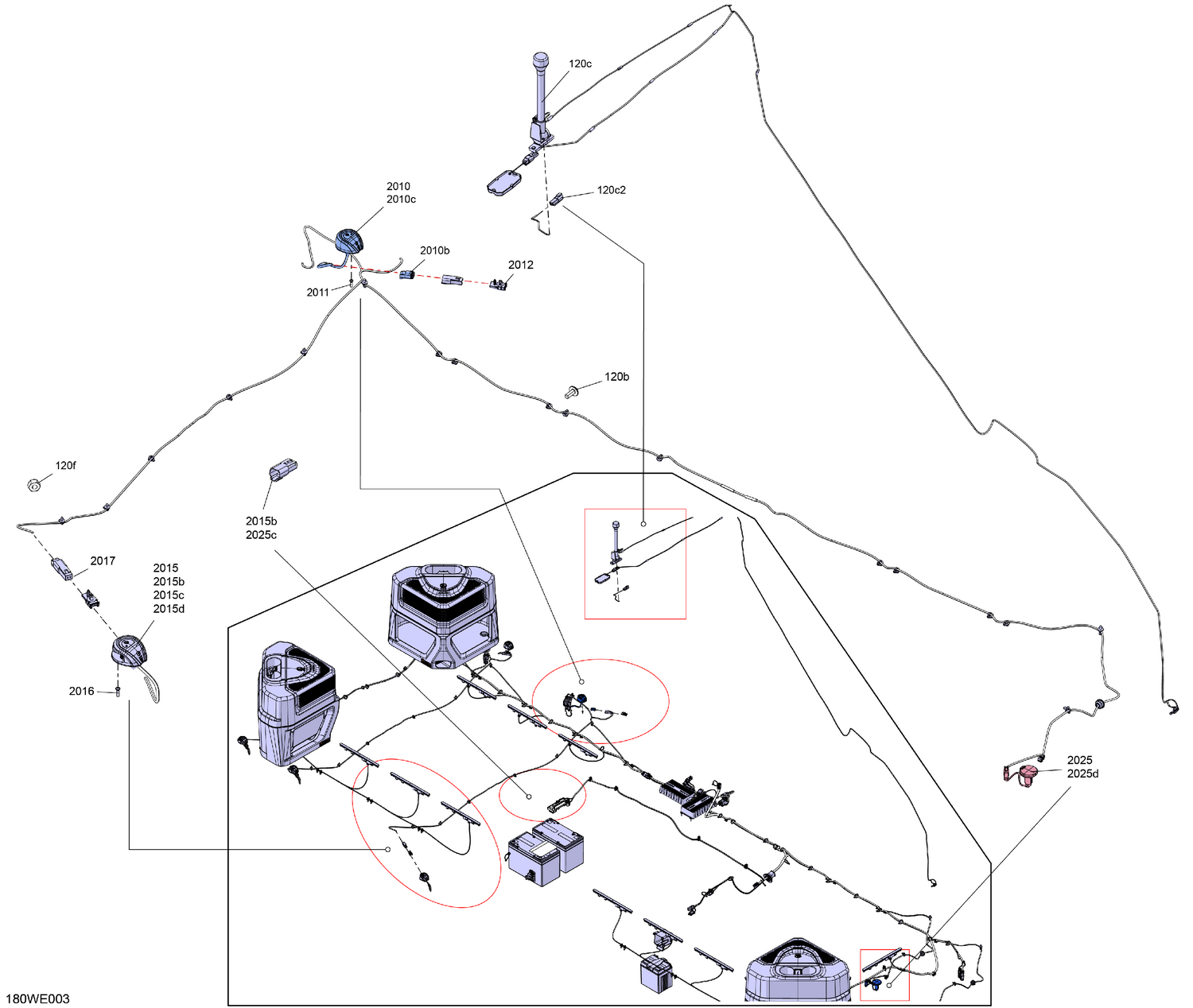

08- ELECTRIC - Lighting
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 120b | 250001147 | Cone Torx Truss Screw HD.M6 X 15 |
| 120c2 | 515179135 | Male Amphenol Connector 2 Cavities |
| 120f | 232541200 | Elastic Stop Nut M4 |
| 2010b | 515178579 | Amphenol Female Connector 2 Cavities |
| 2010c | 710005438 | Female Terminal |
| 2011 | 250000287 | Flange Torx Screw K40 X 16 |
| 2012 | 710006744 | Deutsch Connector Support |
| 2015b | 515179135 | Male Amphenol Connector 2 Cavities |
| 2015c | 710005748 | Terminal |
| 2015d | 515179136 | Amphenol Connector Lock |
| 2016 | 250000287 | Flange Torx Screw K40 X 16 |
| 2017 | 710006744 | Deutsch Connector Support |
| 2025c | 515179135 | Male Amphenol Connector 2 Cavities |
| 2025d | 710005748 | Terminal |
