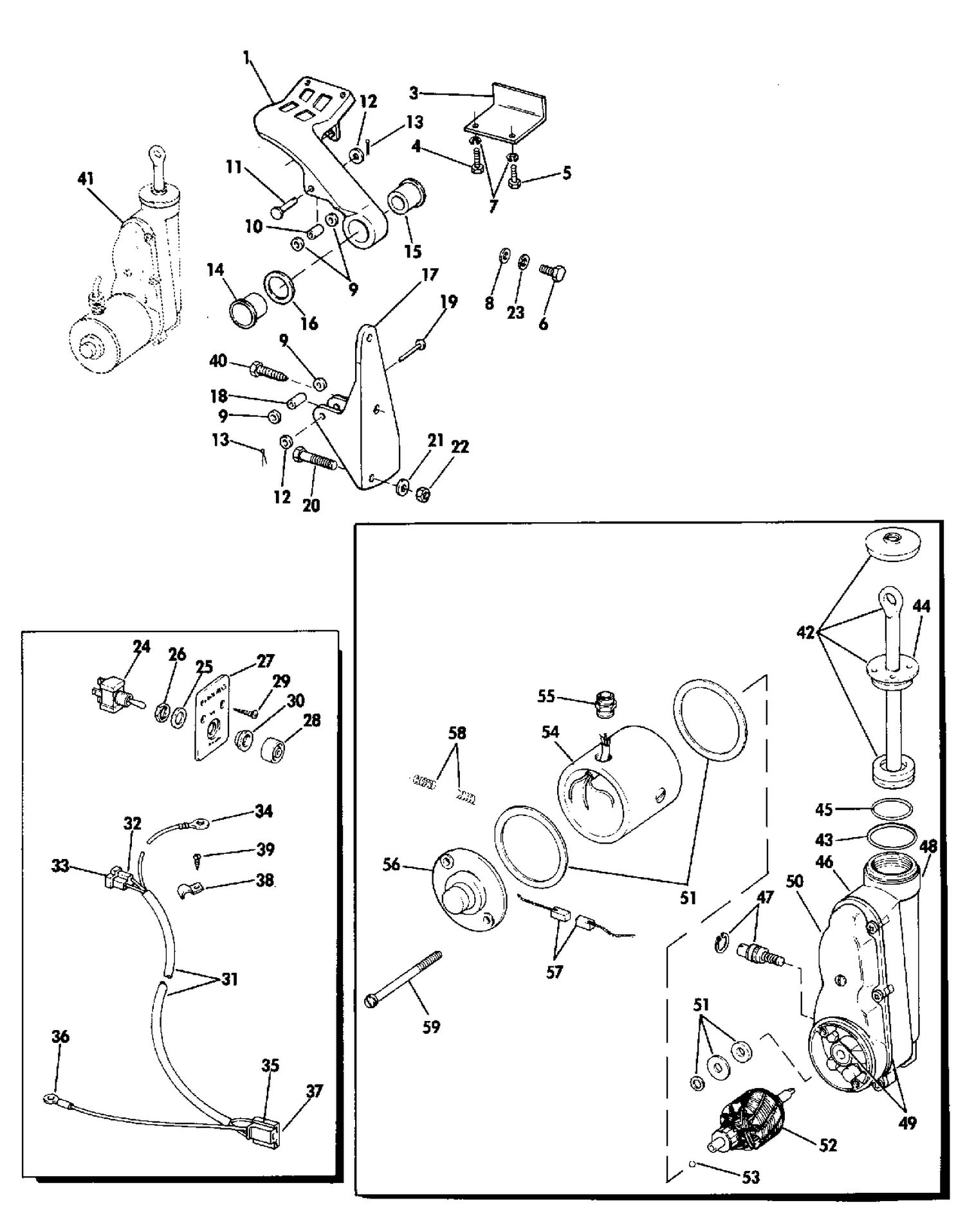

| Ref | Part Number | Description |
|---|
| 1 |
0121950 |
LIFTING LEVER |
| 2 |
0122150 |
PILOT DRILL SCREW |
| 3 |
0121952 |
SUPPORT PLATE, Switch brkt. |
| 4 |
0552957 |
BOLT, Lifting lever |
| 6 |
0319624 |
BOLT, Transom |
| 8 |
0121954 |
WASHER, Tramsom bolt |
| 9 |
0121837 |
BUSHING, Upper pivot pin |
| 10 |
0121839 |
BUSHING Upper pivot pin |
| 11 |
0121840 |
PIN, Pivot, upper |
| 14 |
0121955 |
POST, Lever, pivot |
| 15 |
0121956 |
BUSHING, Lever, pivot post |
| 16 |
0121957 |
THRUST WASHER |
| 17 |
0121958 |
LOWER SUPPORT BRKT |
| 18 |
0121836 |
BUSHING, Lower pivot pin |
| 19 |
0121838 |
PIN, Lower pivot |
| 20 |
0363012 |
SCREW, Bracket mounting This part replaces 0313327. |
| 21 |
0307238 |
RONDELLE |
| 22 |
0363254 |
NUT, Stern bracket screw This part replaces 0321861. |
| 23 |
0300660 |
LOCKWASHER |
| 25 |
0900696 |
WASHER |
| 27 |
0311847 |
PLATE, Switch |
| 31 |
0382716 |
CABLE ASSEMBLY |
| 33 |
0825886 |
TERMINAL This part replaces 0510541. |
| 40 |
0122013 |
LAB BOLT |
| 41 |
0173946 |
HYDRAULIC PUMP This part replaces 0172513. |
| 42 |
0174231 |
PISTON ROD & END HEAD ASSY. This part replaces 0173262. |
| 43 |
0121986 |
O RING ASSEMBLY |
| 43 |
0123081 |
O RING |
| 0172137 |
0172137 |
POWER TILT KIT |
| 0172588 |
0173944 |
MOTOR ASSEMBLY This part replaces 0172588. |
