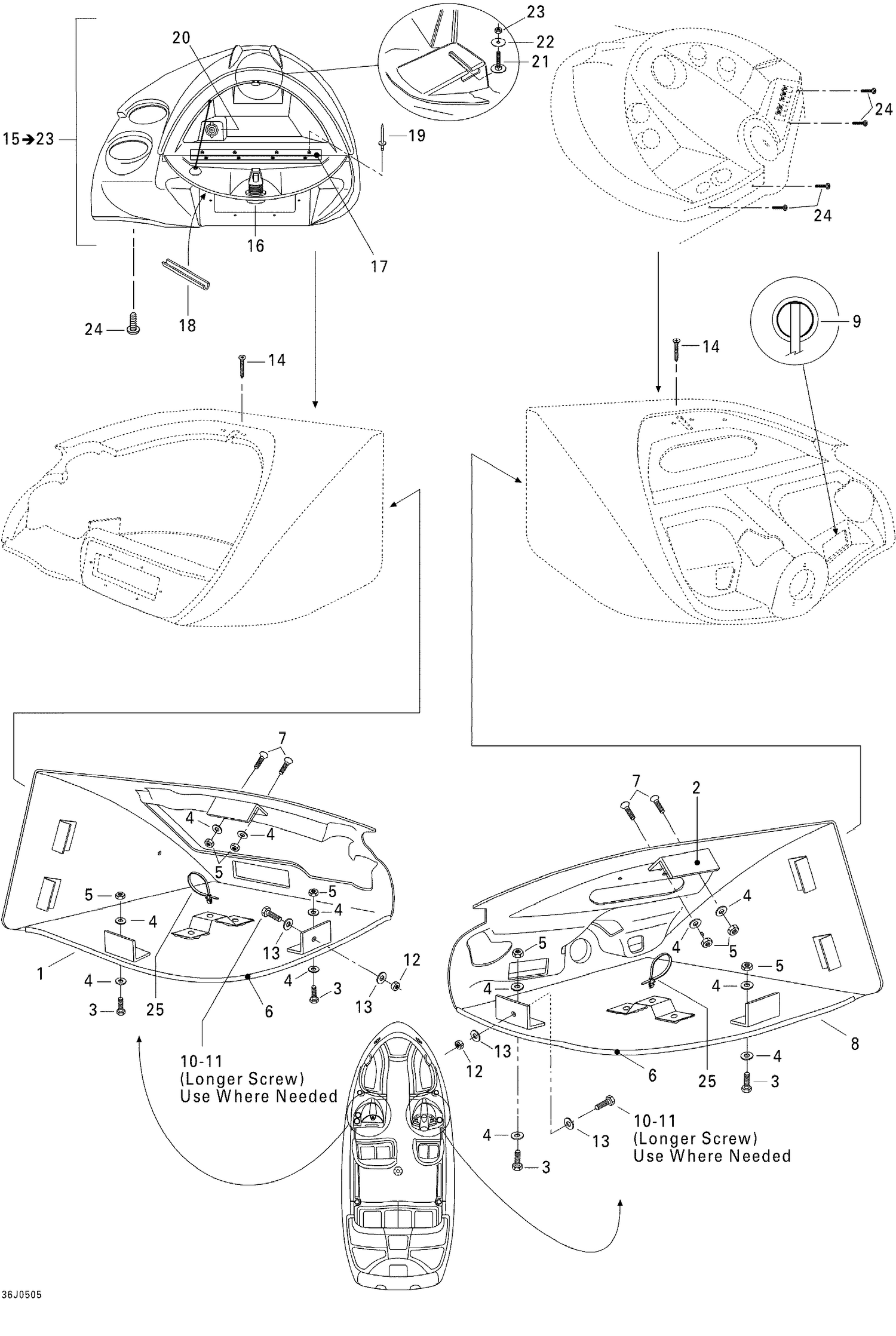

| Ref | Part Number | Description |
|---|
| 1 |
204072115 |
Console Ass'y, Port Side |
| 2 |
204071803 |
Angle Bracket 90 mm |
| 3 |
207163060 |
Hex. Screw M6 X 30 |
| 4 |
234060600 |
FLAT WASHER 6 MM - Call your local BRP dealership |
| 5 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 6 |
204071878 |
TRIM, WHITE - Call your local BRP dealership |
| 7 |
208563060 |
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership |
| 8 |
204072116 |
Console Ass'y, Starboard |
| 9 |
204550028 |
SLIT CONDUIT, METER - Call your local BRP dealership |
| 10 |
207164560 |
Hex. Screw M6 X 45 |
| 11 |
207166560 |
Hex. Screw M6 X 65 |
| 12 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 13 |
234062600 |
Flat Washer M6, Stainless |
| 14 |
204100056 |
PHILLIPS TAPPING SCREW M10 X 2 - Call your local BRP dealership |
| 16 |
204071524 |
DOOR LATCH - Call your local BRP dealership |
| 17 |
204071525 |
Hinge |
| 18 |
204071526 |
Door Edge |
| 19 |
204130021 |
Pop Rivet |
| 20 |
710001248 |
DC Outlet This part replaces 204470716. |
| 21 |
204000130 |
Elevator Bolt |
| 22 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 23 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 24 |
204100153 |
Phillips Screw #8 X 3/4" |
