Home / BRP / 2013 / FREERIDE / FREERIDE 137, 146, 154, 800RE XP, 2013 000VADA00 000VADB00 000VADD00 000VADE00 000VADF00 000VBDB00 000VBDC00 000VBDE00 000VCDB00 000VCDC00 000VCDE00 / 03- Magneto

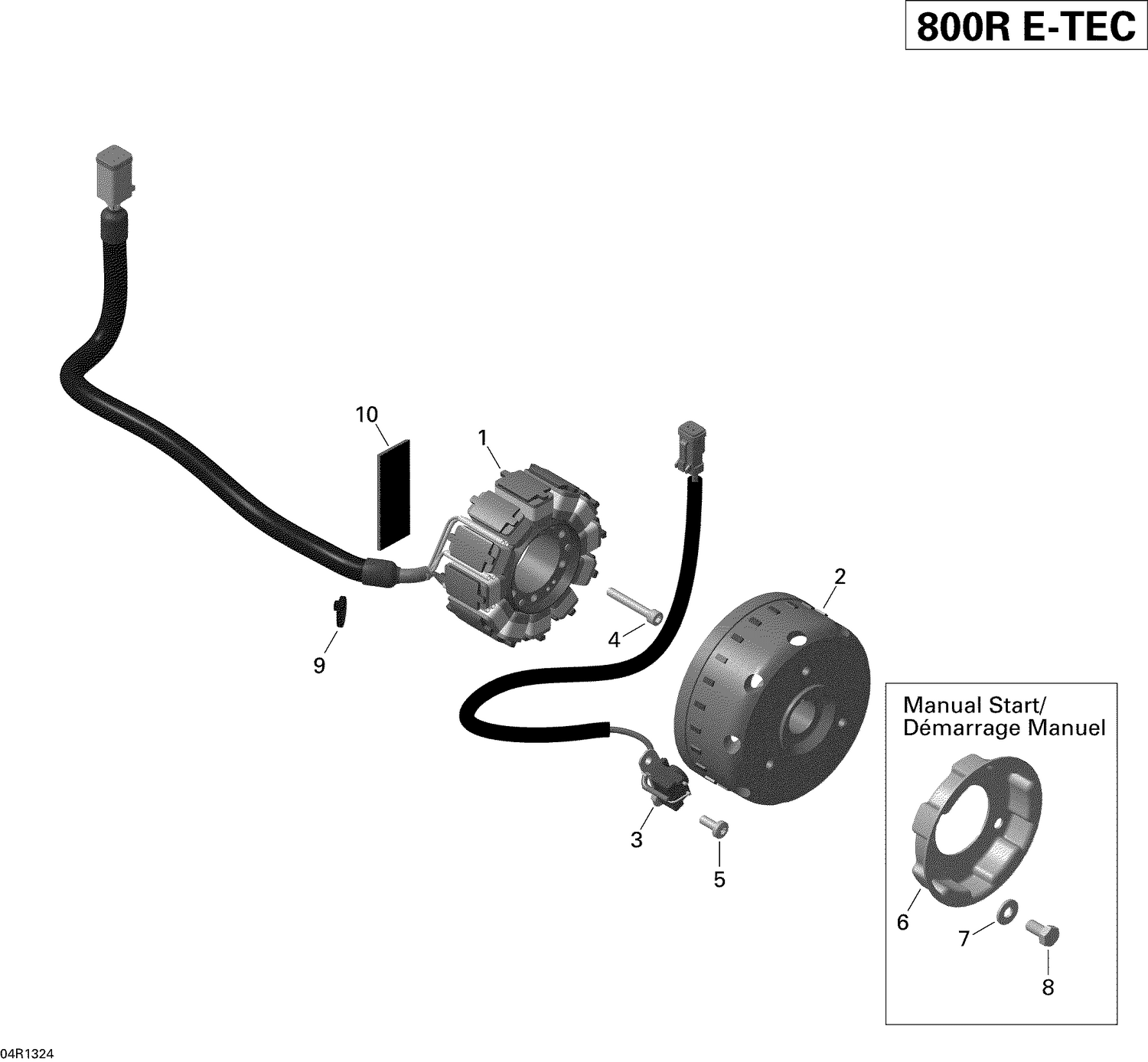

03- Magneto

03- Magneto

Parts (6)

RefPart NumberDescription
1 420665435 Stator Plate
2 420665442 Flywheel This part replaces 420665449.
3 410922969 Pick-Up Ass'y
4 420241816 SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
5 420640324 Torx Screw M6 X 16
9 420866714 Tie Rap
