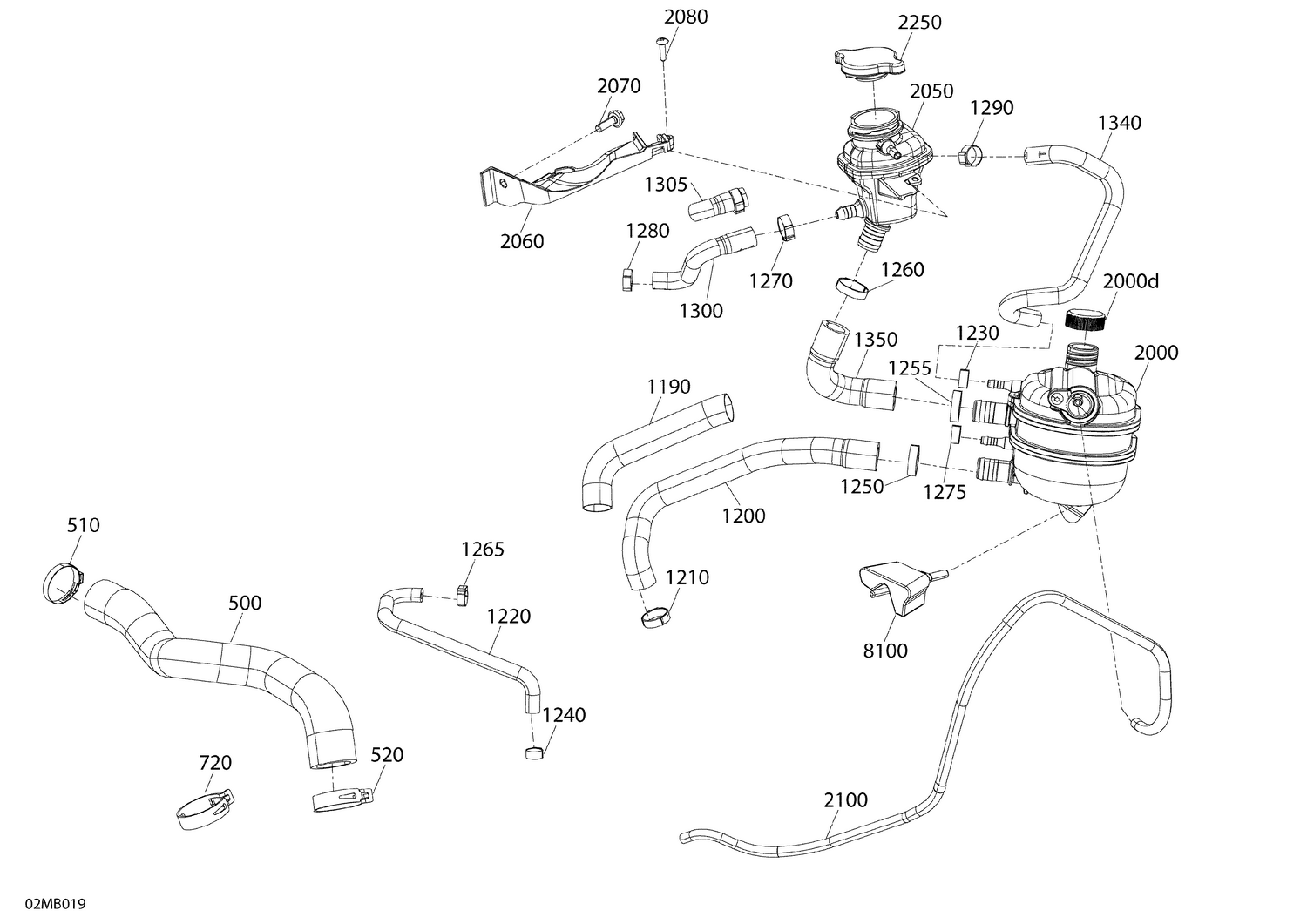

02- Engine - Cooling
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001413 | Thermostat Hose This part replaces 509001274. |
| 510 | 293650254 | Oetiker Gear Clamp |
| 520 | 293650264 | Norma Spring Clamp |
| 720 | 293650264 | Norma Spring Clamp |
| 1190 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 1200 | 509001141 | Hose |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1220 | 509001263 | Cooling Hose |
| 1230 | 293650046 | Oetiker Clamp |
| 1240 | 293650046 | Oetiker Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1255 | 509001041 | Oetiker Clamp |
| 1260 | 509001041 | Oetiker Clamp |
| 1265 | 293650046 | Oetiker Clamp |
| 1270 | 293650030 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 1280 | 293650047 | Crimp Clamp, 15.3-706R |
| 1290 | 293650046 | Oetiker Clamp |
| 1300 | 509001262 | Cooling Hose |
| 1305 | 293100020 | Braided Sheath 20 MM ID |
| 1340 | 509001132 | Hose |
| 1350 | 509001238 | Cooling Hose |
| 2000d | 509001293 | Tank Cap |
| 2050 | 509001131 | Filler Neck |
| 2060 | 509001137 | Support |
| 2070 | 207662046 | Hex. Flange Screw M6 X 20 |
| 2080 | 250000759 | Torx Truss Pt K40 X 16 |
| 2100 | 219704360 | Hose 6 Mm 15000Mm Long |
| 2250 | 509000180 | Radiator Pressure Cap |
