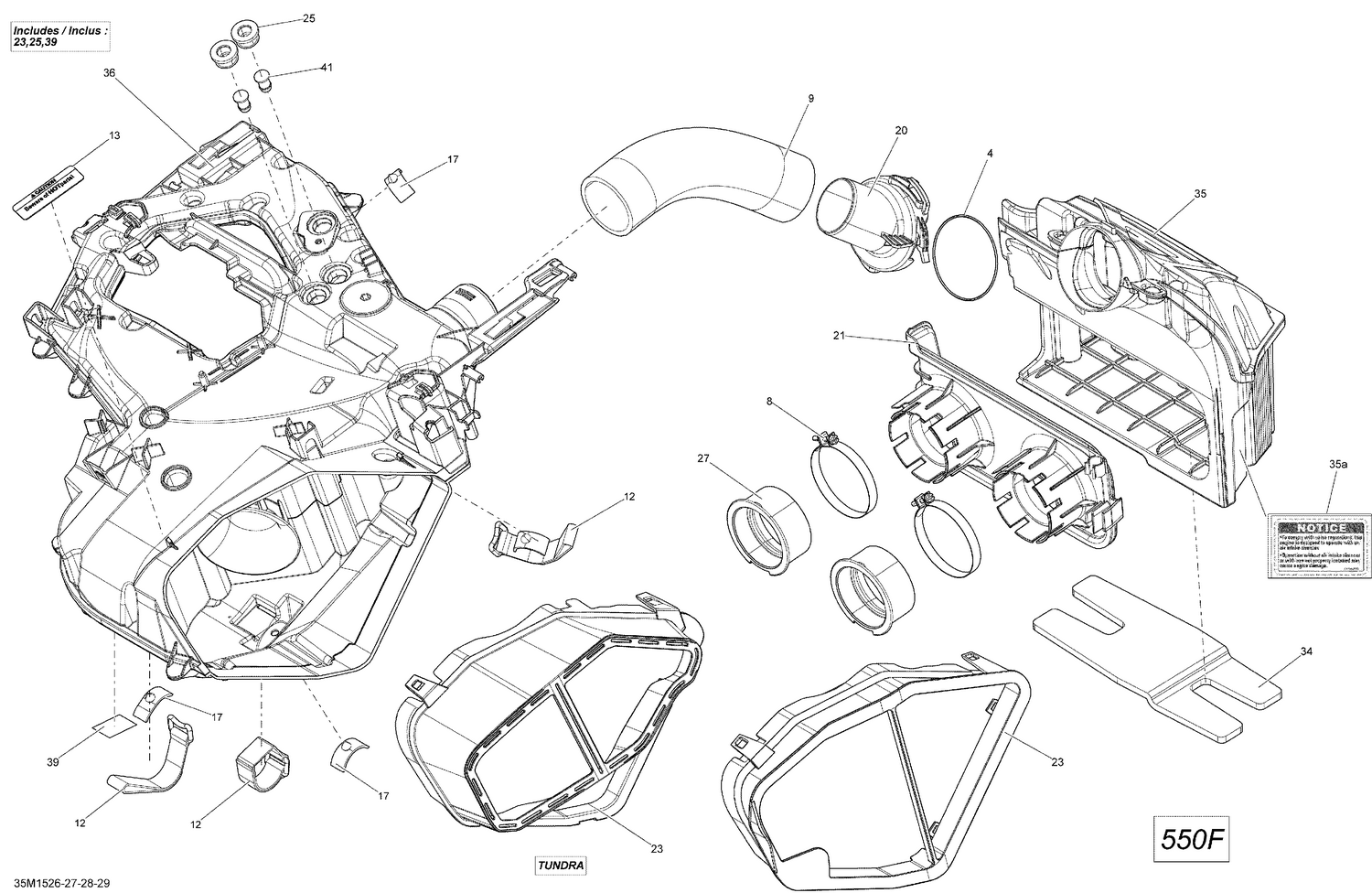

02- Air Intake System _35M1526
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 293300115 | O-Ring |
| 8 | 508000369 | Gemi Clamp |
| 9 | 508000406 | Tube |
| 12 | 508000820 | Velcro Strip This part replaces 508000532. |
| 13 | 516005280 | Caution Decal Hot Parts |
| 17 | 508000744 | Stopper |
| 20 | 508000562 | Link |
| 21 | 508000564 | ADAPTER PLATE - Call your local BRP dealership |
| 23 | 508000568 | Air Intake Filter |
| 25 | 508000574 | Grommet |
| 27 | 508000594 | Air Intake Adapter |
| 34 | 508000674 | Insulated Foam |
| 35a | 516005876 | Notice Decal, Air Intake Silencer |
| 36 | 508000712 | Secondary Chamber Ass'y |
| 39 | 509000688 | Reflective Sheet |
