Parts Catalog

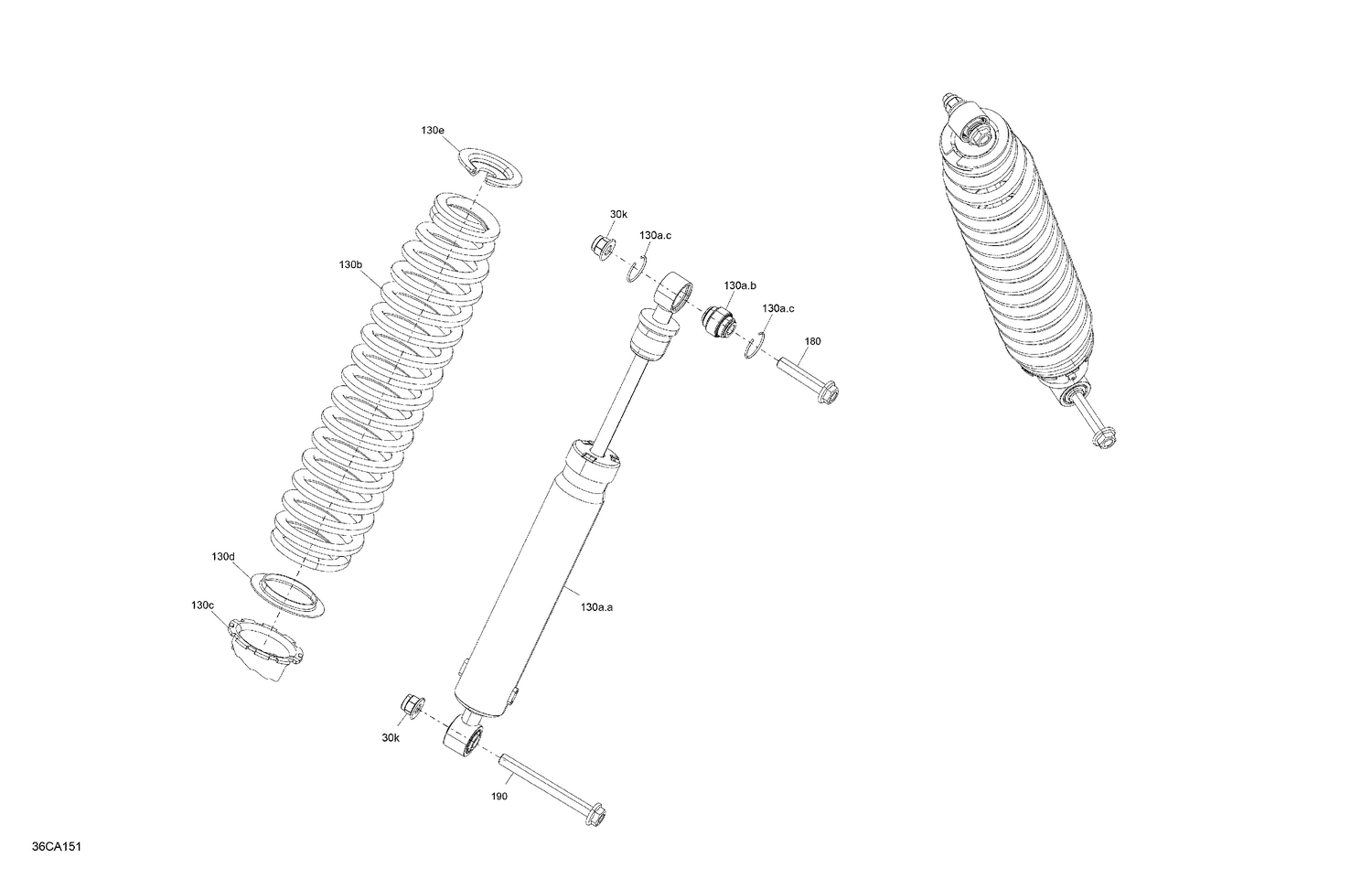

05- Suspension - Rear Shocks - XT

Parts (6)

Ref	Part Number	Description
130b	706005166	Deep Black, Compression Spring This part replaces 706004076.
130c	706000910	Adjustment Ring
130d	706000911	Protector Ring
130e	706001894	Spring Cup
180	250000857	Flange Screw M12 X 60
190	250000860	Screw Flange M12 X 115
