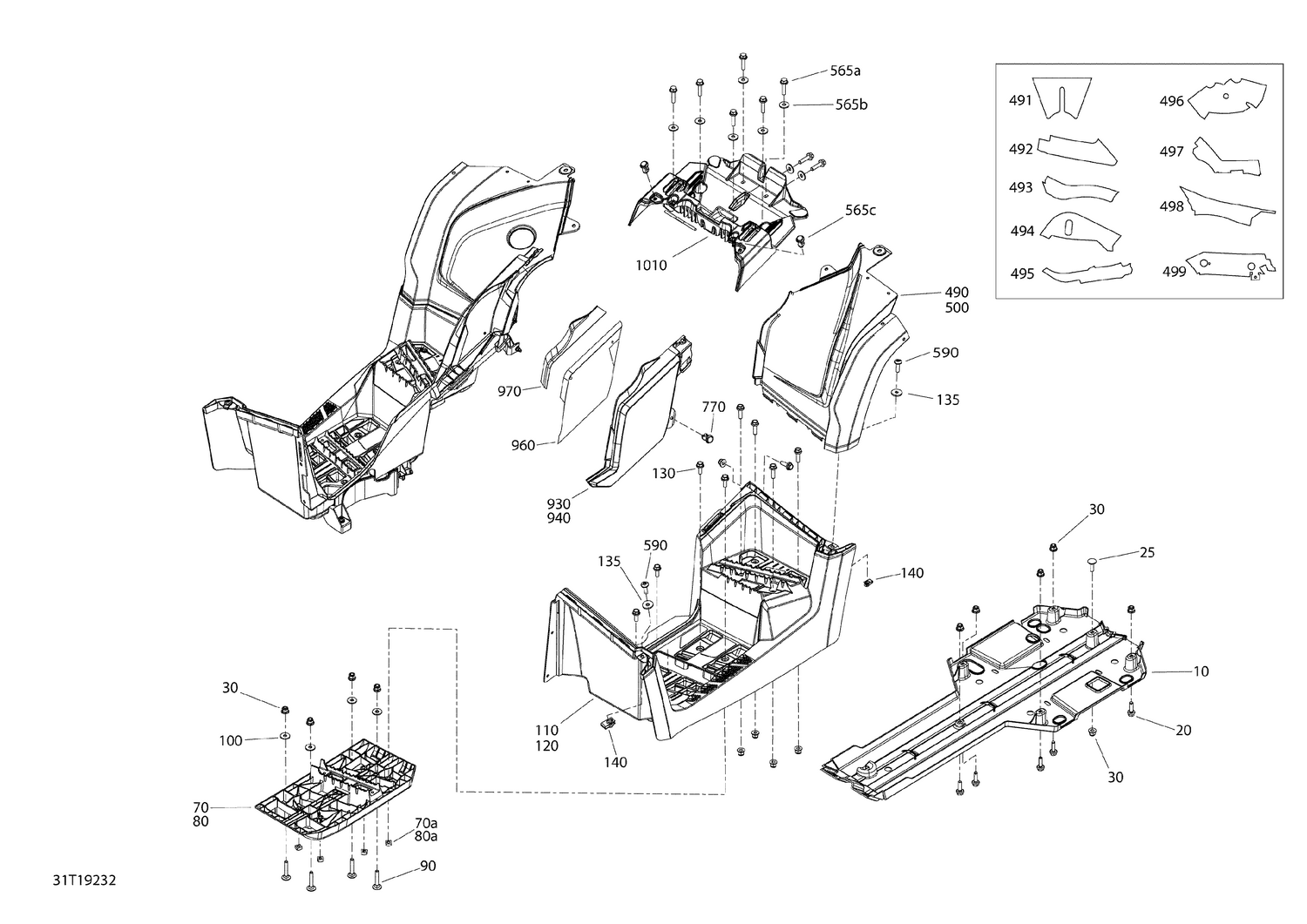

09- Body And Accessories 6X6 MAX - 1000 EFI - Pure Magnesium - Middle
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715002374 | Protective Plate Kit |
| 20 | 207662054 | Hex. Flange Screw M6 X 20 |
| 25 | 207762044 | Carriage Bolt M6 X 20 |
| 30 | 233261434 | Flange Elastic Nut M6 |
| 70a | 232862412 | Square Nut M6 |
| 80a | 232862412 | Square Nut M6 |
| 90 | 207763554 | Carriage Bolt M6 X 35 |
| 100 | 234062410 | Flat Washer 6 mm |
| 110 | 705003525 | LH Footrest Max |
| 120 | 705003521 | RH Footrest Max |
| 130 | 207661654 | Hex. Flange Screw M6 X 16 |
| 135 | 224061201 | Flat Washer |
| 140 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 490 | 715006084 | Pure Magnesium Rear LH Fender |
| 491 | 707002456 | Heat Shield |
| 492 | 707002457 | Heat Shield |
| 493 | 707002458 | Heat Shield |
| 494 | 707002459 | Heat Shield |
| 495 | 707002460 | Heat Shield |
| 496 | 707002461 | Heat Shield |
| 497 | 707002462 | Heat Shield |
| 498 | 707002583 | Heat Shield |
| 499 | 707002464 | Heat Shield |
| 500 | 715006091 | Pure Magnesium Rear RH Fender |
| 565a | 250000841 | Hex Flange Screw M6 X 25 |
| 565b | 234062670 | Stainless Steel Flat Washer |
| 565c | 293150230 | Tuflok Plastic Rivet |
| 590 | 250000722 | Torx Screw M6 X 20 |
| 930 | 715001897 | LH Extension Panel |
| 940 | 705004348 | RH Extension Panel |
| 960 | 705006870 | Heat Shield |
| 970 | 705006871 | Heat Shield |
