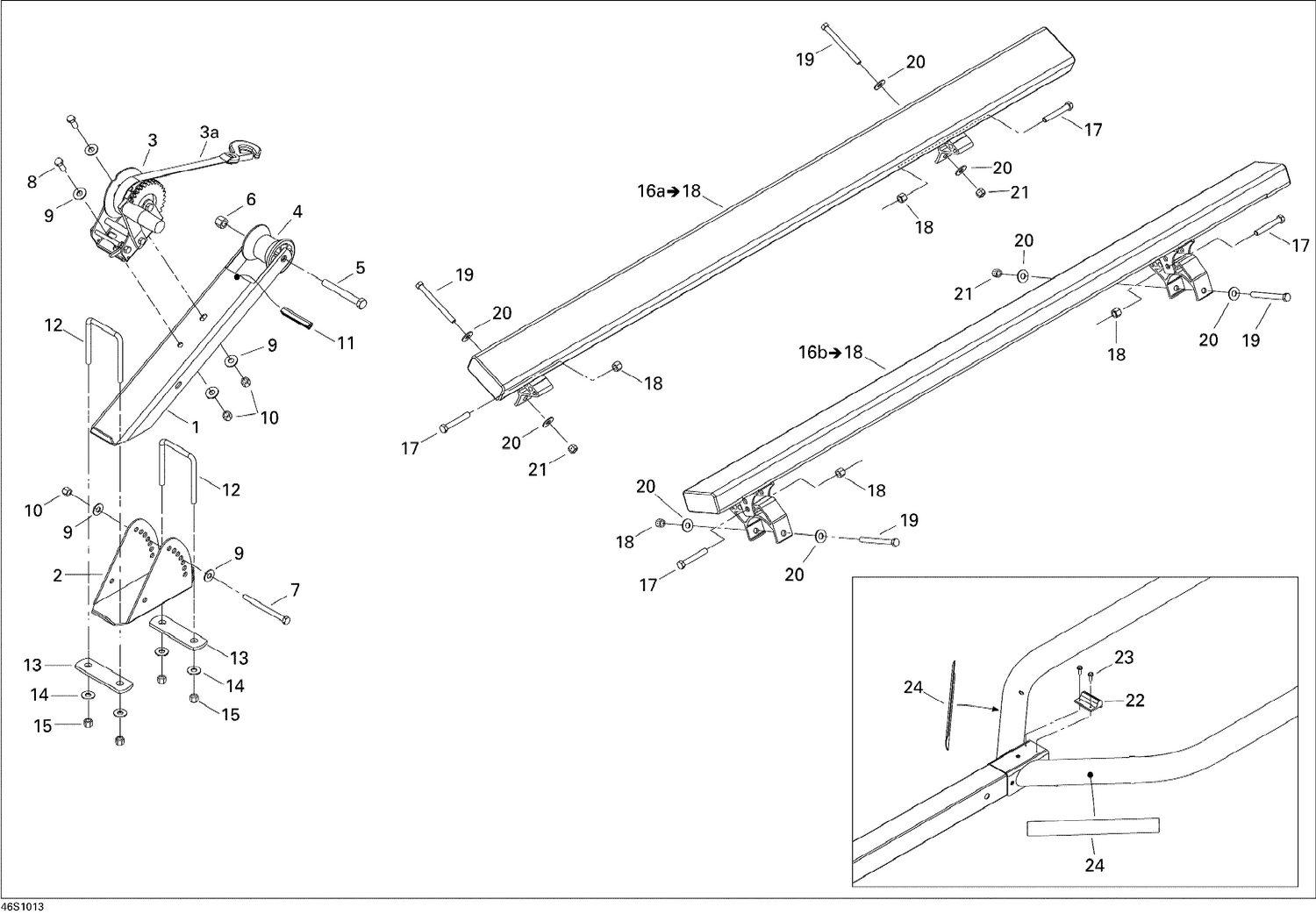

| Ref | Part Number | Description |
|---|
| 3 |
269800078 |
WINCH - Call your local BRP dealership |
| 3a |
296000328 |
WINCH STRAP - Call your local BRP dealership |
| 4 |
269800169 |
BOW ROLLER - Call your local BRP dealership |
| 5 |
269800401 |
HEX. BOLT 1/2''-13 X 4'' - Call your local BRP dealership This part replaces 269800131. |
| 6 |
269800130 |
Lock Nut |
| 7 |
269800317 |
HEX. BOLT 3/8''-16 X 4 1/2'' - Call your local BRP dealership This part replaces 269800105. |
| 8 |
269800305 |
HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership This part replaces 269800005. |
| 9 |
269800300 |
FLAT WASHER - Call your local BRP dealership This part replaces 269800151. |
| 10 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 11 |
296000429 |
GROMMET - Call your local BRP dealership |
| 12 |
269800138 |
U BOLT - Call your local BRP dealership |
| 13 |
269800175 |
BAKING PLATE - Call your local BRP dealership |
| 14 |
269800300 |
FLAT WASHER - Call your local BRP dealership This part replaces 269800151. |
| 15 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 17 |
269800316 |
HEX. CAP BOLT 3/8''-16 X 2 1/2'' - Call your local BRP dealership This part replaces 269800106. |
| 18 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 19 |
291003301 |
HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership This part replaces 291003016. |
| 20 |
269800300 |
FLAT WASHER - Call your local BRP dealership This part replaces 269800151. |
| 21 |
269800091 |
LOCK NUT - Call your local BRP dealership |
| 22 |
269800173 |
KEEL PROTECTOR - Call your local BRP dealership |
| 23 |
269800136 |
SCREW - Call your local BRP dealership |
