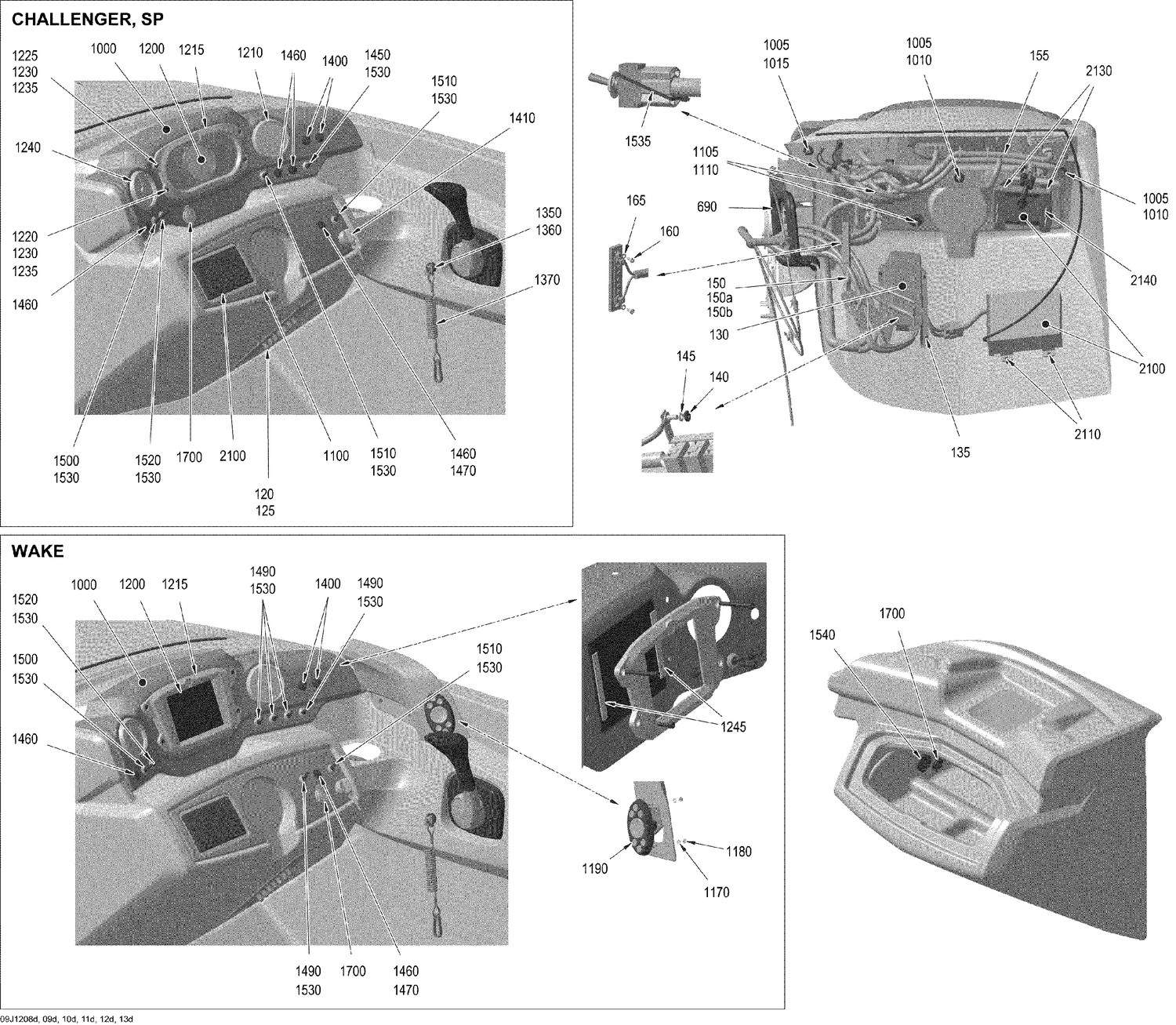

| Ref | Part Number | Description |
|---|
| 125 |
250000090 |
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
| 130 |
204471375 |
Circuit Breaker Panel Cover |
| 135 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 140 |
212100005 |
Hex. Nut |
| 145 |
234151601 |
Helical Lock Washer M5 |
| 160 |
209641360 |
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership |
| 165 |
234041600 |
Flat Washer 4 mm, Stainless |
| 690 |
204130176 |
SLIT CONDUIT 1 - Call your local BRP dealership |
| 1005 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 1010 |
204100262 |
HEXAGONAL NUT 8-32 - Call your local BRP dealership |
| 1015 |
204100261 |
HEXAGONAL NUT 10-24 - Call your local BRP dealership |
| 1105 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 1110 |
204100262 |
HEXAGONAL NUT 8-32 - Call your local BRP dealership |
| 1210 |
278002692 |
Fuel Level Gauge |
| 1220 |
205062060 |
Socket Head Screw M6 X 20 |
| 1225 |
205065060 |
SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership |
| 1230 |
234062600 |
Flat Washer M6, Stainless |
| 1235 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 1240 |
278002691 |
Speedometer |
| 1350 |
278002421 |
LANYARD SWITCH - Call your local BRP dealership |
| 1360 |
278002472 |
FLANGED NUT - Call your local BRP dealership |
| 1370 |
278002450 |
SAFETY LANYARD - Call your local BRP dealership |
| 1400 |
278002694 |
Start Switch |
| 1500 |
278002696 |
SWITCH - Call your local BRP dealership |
| 1520 |
278002698 |
Switch |
| 1540 |
278002417 |
USB CONNECTOR - Call your local BRP dealership |
| 1700 |
710001248 |
DC Outlet |
| 2100 |
278002689 |
STEREO - Call your local BRP dealership |
| 2110 |
209641960 |
PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
| 2130 |
277001743 |
BRACKET-STEREO - Call your local BRP dealership |
