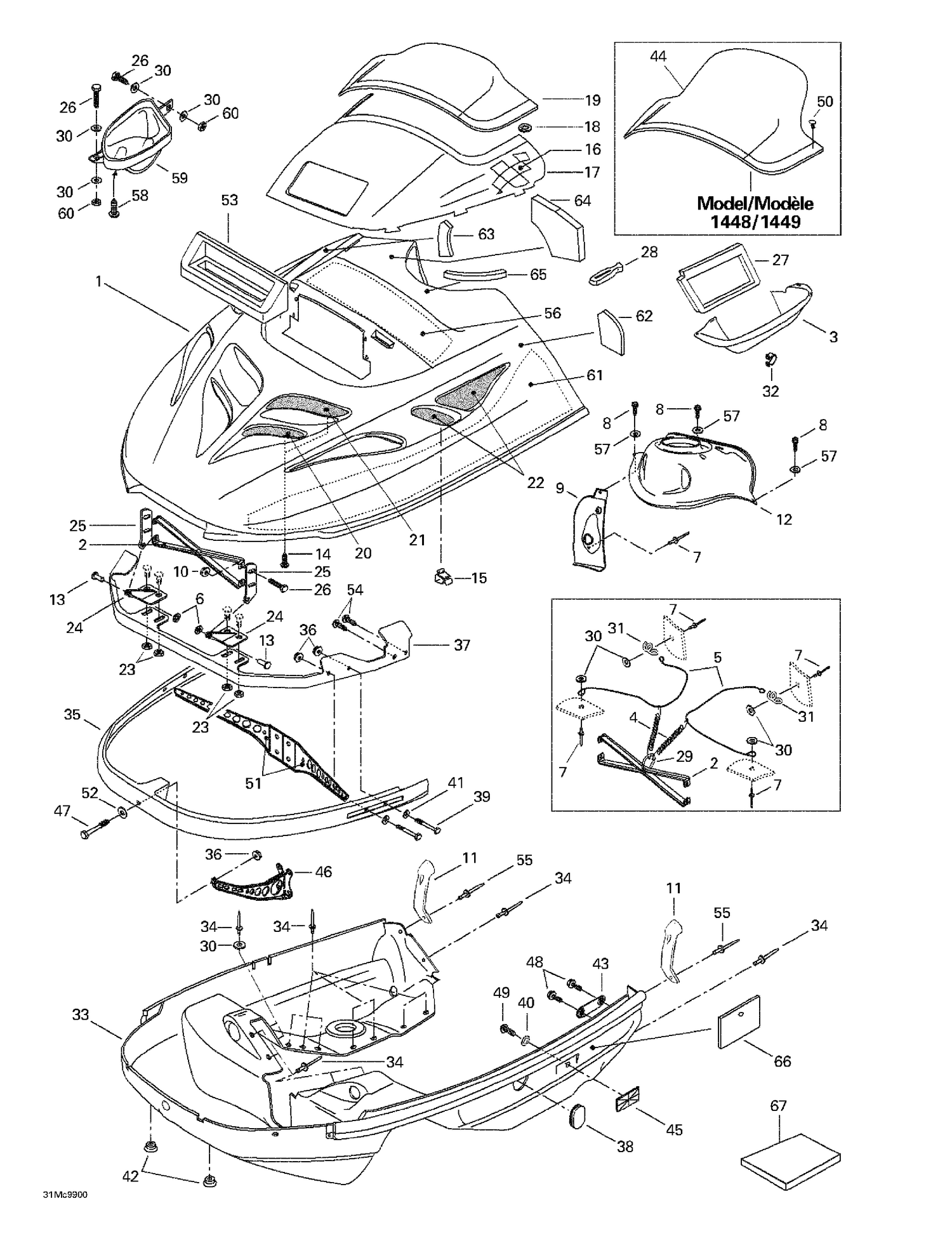

09- Cab, Console
Parts (70)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517302201 | Cab (Yellow) |
| 2 | 517278100 | Hood Reinforcement |
| 3 | 572083800 | Air Deflector |
| 4 | 414763300 | Spring |
| 5 | 415093900 | RETAINER CABLE - Call your local BRP dealership |
| 6 | 389804300 | Push Nut |
| 7 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 8 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 9 | 572052101 | Handle Dash |
| 10 | 233251434 | Flange Elastic Nut M5 This part replaces 228751045. |
| 11 | 570027100 | Hood Latch |
| 12 | 517302160 | Dash-Switch |
| 13 | 390906200 | FLAT HEAD STEEL RIVET - Call your local BRP dealership |
| 14 | 732601210 | HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership |
| 15 | 517302785 | Edge Clip This part replaces 517302183. |
| 16 | 415127524 | Checker Decal Kit |
| 17 | 572101800 | Windshield Support |
| 18 | 732610072 | Push Nut |
| 19 | 414795900 | WINDSHIELD LOW - Call your local BRP dealership |
| 20 | 517265903 | LH Front Grill |
| 21 | 517277102 | LH Upper Grill |
| 22 | 517280200 | Side Grill (Black) |
| 23 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 24 | 517289900 | Welded Lower Hinge |
| 25 | 517261100 | UPPPER HINGE - Call your local BRP dealership |
| 26 | 207151644 | Hex. Screw M5 X 16 This part replaces 222051665. |
| 27 | 415036500 | Seal |
| 28 | 570023800 | Windshield Latch |
| 29 | 415058300 | RING - Call your local BRP dealership |
| 30 | 517124300 | Washer |
| 31 | 517262800 | Bracket |
| 32 | 414479100 | Clip |
| 33 | 572076211 | Bottom Pan (Yellow) |
| 34 | 390906800 | Pop Rivet 3/16" This part replaces 390910200. |
| 35 | 517265400 | Front Bumper |
| 36 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 37 | 517296600 | Hinge Bracket |
| 38 | 570053704 | Bottom Pan Cap (Yellow) |
| 39 | 207063044 | Hex. Screw M6 X 30 This part replaces 222063065. |
| 40 | 224151101 | WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 41 | 224061121 | Flat Washer |
| 42 | 572072100 | CAP - Call your local BRP dealership |
| 43 | 517267100 | Side Bracket |
| 45 | 414510200 | REFLECTOR, AMBER - Call your local BRP dealership |
| 46 | 517294500 | Front Support |
| 47 | 207064044 | Hex. Screw M6 X 40 This part replaces 222064065. |
| 48 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 732600002. |
| 49 | 208651041 | PHILLIPS SCREW M5 X 10 - Call your local BRP dealership This part replaces 222851065. |
| 50 | 414939500 | Dart |
| 51 | 517295000 | LH Support |
| 52 | 224061201 | Flat Washer |
| 53 | 415077300 | Sealing Foam |
| 54 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 55 | 390906800 | Pop Rivet 3/16" |
| 56 | 414985100 | Center Foam |
| 57 | 391301600 | Washer |
| 58 | 732601292 | Tapping Screw |
| 59 | 572097800 | Inlet Duct |
| 60 | 232551414 | Elastic Stop Nut M5 This part replaces 228551045. |
| 61 | 414883500 | LH Lower Foam |
| 62 | 414883700 | LH Rear Foam |
| 63 | 414883800 | R.H Rear Foam |
| 64 | 414975000 | Upper Foam |
| 65 | 415050900 | Foam |
| 66 | 415028100 | Foam |
| 67 | 414632400 | Acoustic Foam |
| 415048700 | Mousse | Avant Inférieur Panneau DR 415048700 |
| 415048700 | RH | Lower Foam 415048700 |
| 517295100 | Attache | DR 517295100 |
| 517295100 | RH | Support 517295100 |
