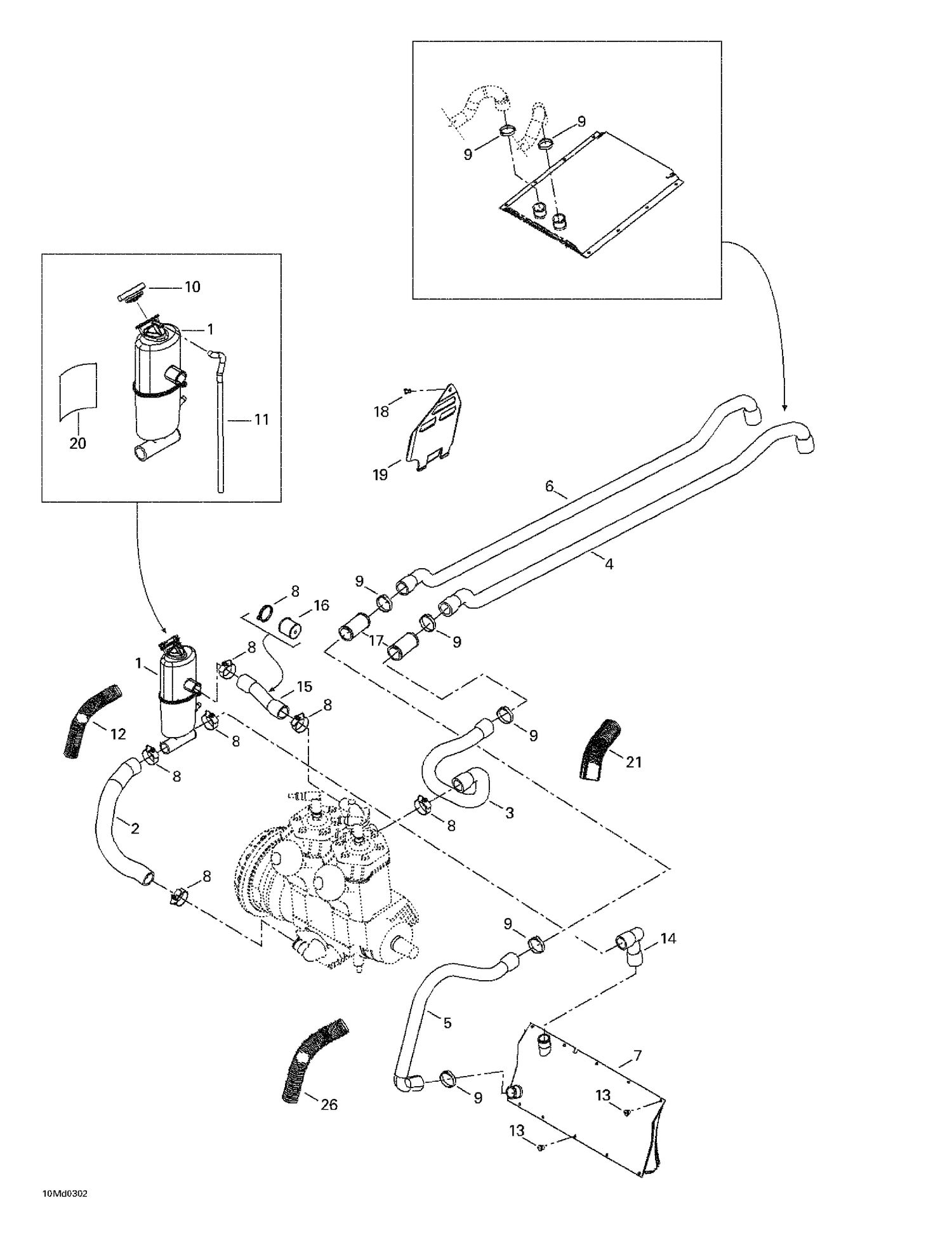

| Ref | Part Number | Description |
|---|
| 1 |
509000182 |
Tank-Coolant |
| 2 |
509000135 |
ENGINE INLET HOSE - Call your local BRP dealership |
| 3 |
509000220 |
FRONT ENGINE HOSE OUTLET - Call your local BRP dealership |
| 4 |
509000221 |
Engine Outlet Hose |
| 5 |
509000222 |
FRONT RADIATOR HOSE INLET - Call your local BRP dealership |
| 6 |
509000223 |
REAR RADIATOR HOSE INLET - Call your local BRP dealership |
| 7 |
518323387 |
Front Radiator |
| 8 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 9 |
509000045 |
Oetiker Gear Clamp 36.1MM |
| 10 |
509000187 |
Pressure Cap |
| 11 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 12 |
219704413 |
Was 415084700 Protective Shield |
| 13 |
390402200 |
Pop Rivet 3/16" |
| 14 |
509000184 |
RADIATOR OUTLET HOSE - Call your local BRP dealership |
| 15 |
509000196 |
Hose |
| 16 |
509000197 |
CHOKE - Call your local BRP dealership |
| 17 |
509000224 |
Fitting |
| 18 |
390909200 |
Avex Rivet |
| 19 |
509000163 |
Deflector |
| 20 |
509000190 |
REFECTIVE SHEET - Call your local BRP dealership |
