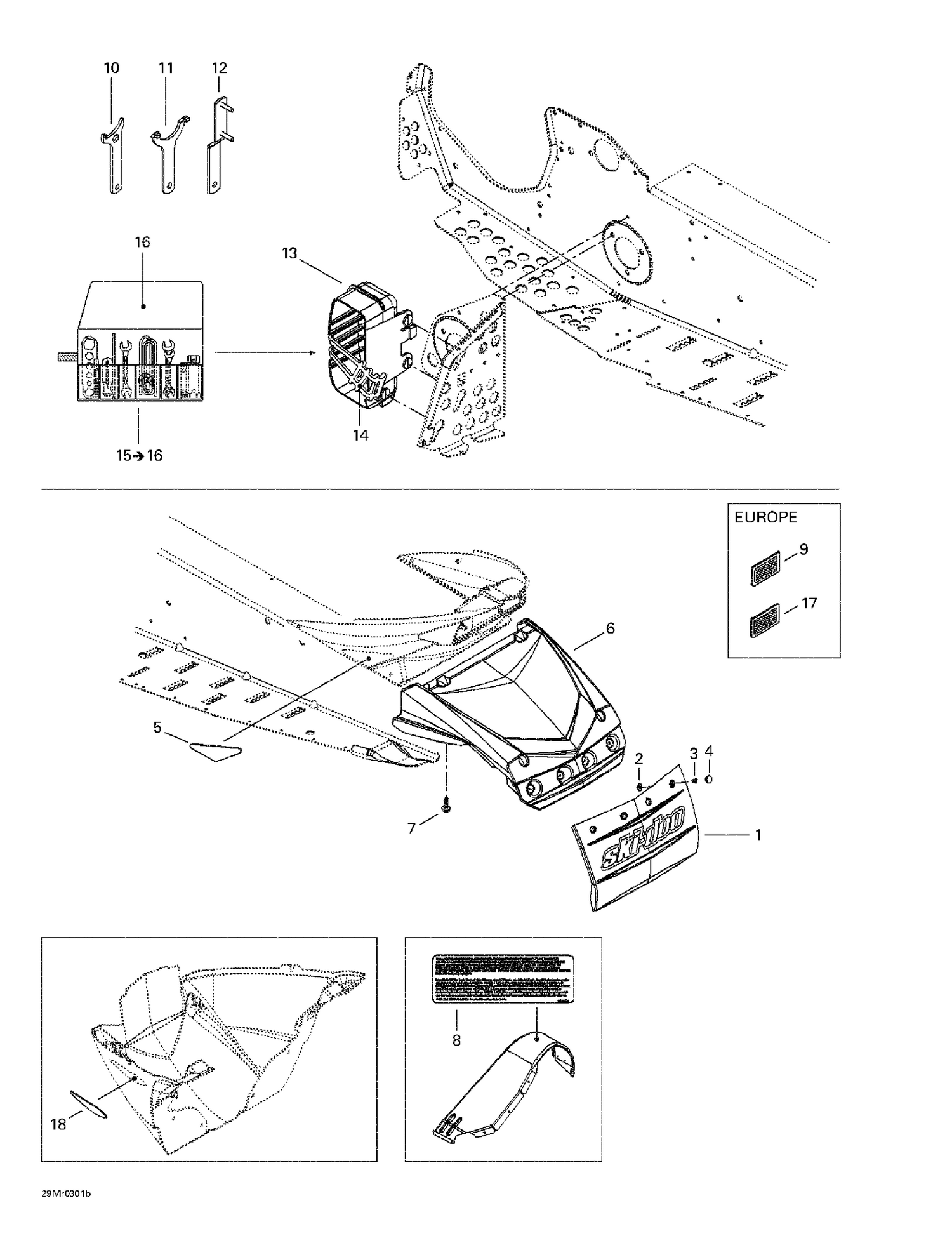

09- Utilities
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520000331 | Snow Guard, Black |
| 2 | 517225900 | Flat Washer |
| 3 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 4 | 277000203 | Black, Cap |
| 5 | 520000237 | REAR REFLECTOR, RED - Call your local BRP dealership |
| 6 | 520000310 | Snow Deflector |
| 7 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 8 | 516001681 | Pending Label |
| 9 | 520000271 | Amber, Reflector |
| 10 | 529000035 | Adjustment Wrench This part replaces 529032900. |
| 11 | 529035582 | ADJUSTMENT WRENCH - Call your local BRP dealership |
| 12 | 520000126 | Adjustment Wrench |
| 13 | 520000322 | TRUNK - Call your local BRP dealership |
| 14 | 570069700 | LATCH - Call your local BRP dealership |
| 16 | 520000047 | Tool Bag |
| 17 | 415037900 | White, Reflector |
| 520000311 | Réflecteur | Arrière, Ambre 520000311 |
| 520000311 | Rear | Reflector, Amber 520000311 |
