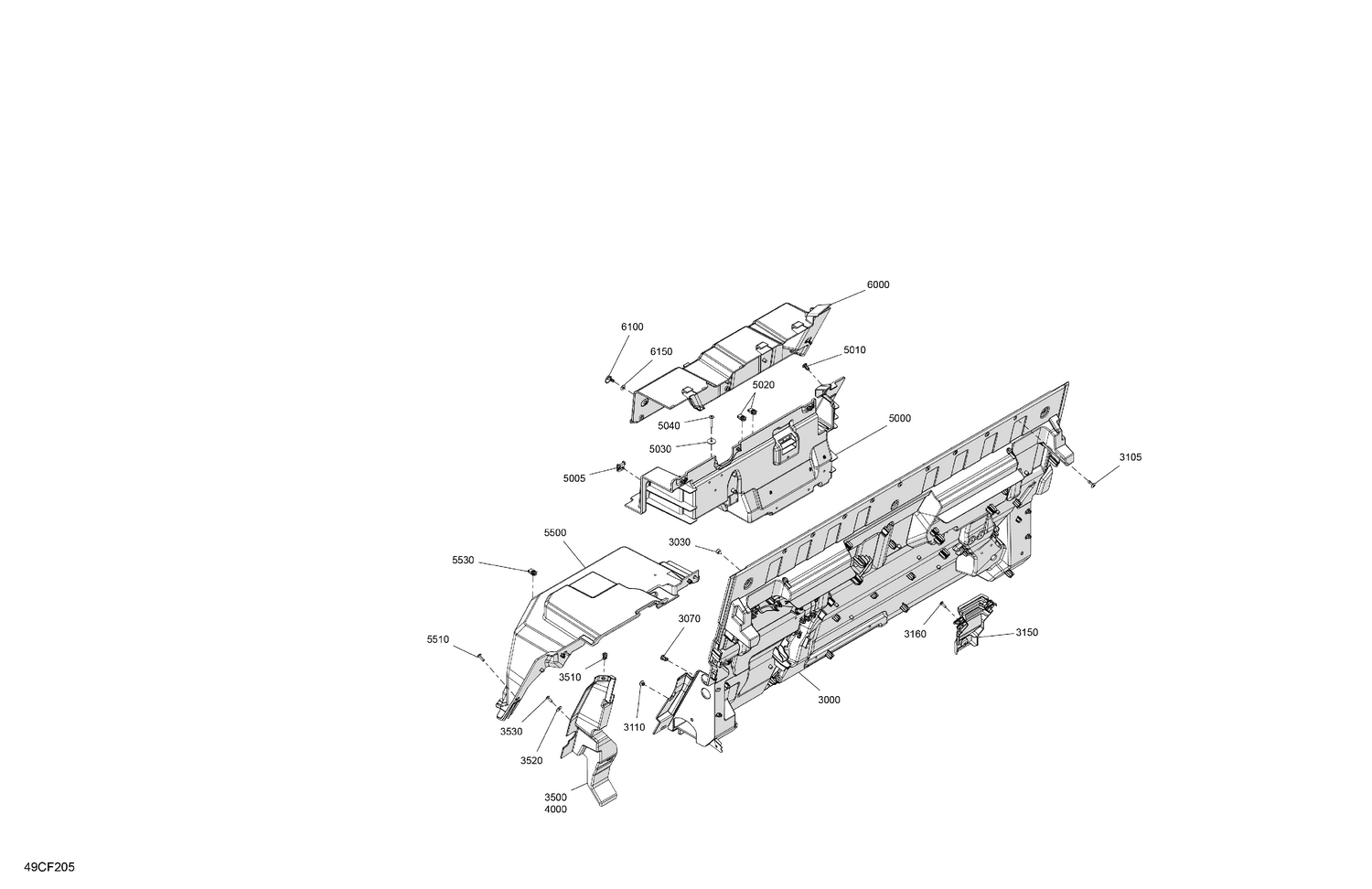

07- Cab Interior - Back Wall
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 3000 | 707901168 | Rear Upper Cab Panel |
| 3030 | 293830005 | Rubber Bumper |
| 3070 | 293150230 | Tuflok Plastic Rivet |
| 3105 | 293150306 | Black, Ornit Rivet 3/16 X ,800 |
| 3110 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 3150 | 707901216 | Rear Lower Wiring Harness Guard |
| 3160 | 250000720 | Torx Screw K50 X 16 |
| 3500 | 707901166 | LH Upper Body Panel Deflector |
| 3510 | 293150230 | Tuflok Plastic Rivet |
| 3520 | 234062670 | Stainless Steel Flat Washer |
| 3530 | 250000720 | Torx Screw K50 X 16 |
| 4000 | 707901167 | RH Upper Body Panel Deflector |
| 5000 | 707901163 | Rear Lower Cab Panel |
| 5005 | 705002651 | Quarter Turn Nut |
| 5010 | 293150230 | Tuflok Plastic Rivet |
| 5020 | 250100198 | Panel Nut M6 X 1.0 |
| 5030 | 250200029 | Washer M6 |
| 5040 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 5500 | 707901213 | Fuel Pump Cover |
| 5510 | 250000722 | Torx Screw M6 X 20 |
| 5530 | 250100198 | Panel Nut M6 X 1.0 |
| 6000 | 707901165 | Battery Cover |
| 6100 | 705002649 | Quarter Turn Screw |
